Preservation of Quality
Preservation of quality and integrity of the asphalt mix for up to 72 hours.

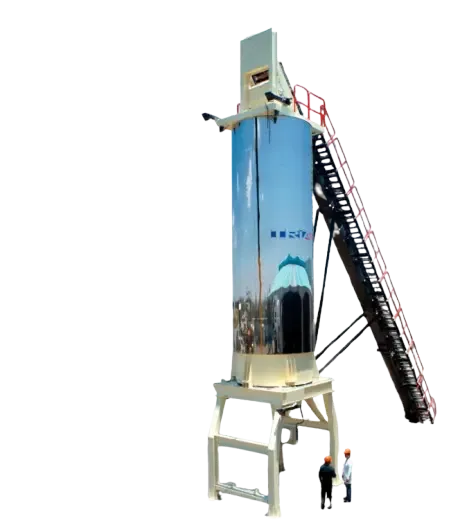

HOT-MIX STORAGE
SILOS
Triaso® hot-mix storage silos are engineered to optimize the storage, handling and delivery of hot-mix
, ensuring top-quality performance while meeting the demands of modern construction projects.
Designed for durability and efficiency, these silos maintain the temperature and integrity of the
mix for up to 72 hours.
Whether for stationary setups or mobile operation, our silos provide reliable solutions tailored to your needs.
Offers automated, precise control for weighing and delivering hot mix, reducing the risk of human error and increasing operational efficiency.
The silo HMI can be connected to the asphalt plant’s computer using industrial protocols such as Ethernet Industrial, Modbus, and CANopen. If needed, Triaso communication interface can be integrated for additional protocol requirements and advanced real-time data monitoring regardless of location.
Equipped with quick connection contacts for easy setup and maintenance, along with protective signs to shield the electrical components from weather conditions.
Triaso Control System
Offering a practical and efficient way to manage industrial equipment operations. With advanced monitoring and automation, it simplifies the Asphalt Plant operation and personnel. Control of key processes like temperature, material dosing, and production rates.
Cloud historical reports
Artificial Intelligence
Fewer operators full control
Remote cloud monitoring
Versatile Setup
Works seamlessly in a dedicated control cabin or under a protective roof.
Quick Adjustments
Allows rapid adjustments to control settings or operating parameters to match project requirements.
When operating without a control console, the silo runs through a Programmable Logic Controller (PLC) and Proface HMI for seamless control and monitoring. The system allows for easy interface management and ensures precise handling of all silo functions.
All silo functions — including mix temperature and weighing data — are clearly displayed on the HMI for full operational transparency. This information is also sent to a real-time cloud database, allowing remote monitoring through an app — anywhere, anytime.
Equipped with load cells for accurate measurement of both stored and delivered hot mix. The system integrates with the PLC for real-time data logging and precise weight control.
Tracks an unlimited number of trucks, storing all relevant data for future reference and analysis. Data is available any time for generating reports and performance comparisons.
The system automatically stores data for delivered hot mix, detailing delivery time, weight, mix temperature, and truck identification via barcode or keyboard capture.
Power transmissions are equipped with oversized heavy-duty Browning gear reducers and hub-mounted steel pulleys for smooth and efficient power transfer.
Reliable Siemens motors and electrical parts ensure durability and consistent performance.
Precisely monitors hot mix levels in real time, optimizing storage and preventing overflows.
User Friendly Interface
Created to offer plant operators a deeper understanding of their operation, this cloud-based platform stores all production data remotely and securely. It gives you the freedom to access detailed performance analytics from any location and any device—whether you're in the office, on the road, or at a job site. With real-time access to trends, logs, and operational metrics, decision-making becomes faster, more informed, and fully independent of your physical location.
Visual and audible alarm for maximum mix level
Visual and audible alarms to alert the operator and personnel when the silo is full.
Sonic sensor to indicate mix level inside the silo
Real-time display of hot mix level on the operator console.
Efficient Logistics
Streamlines delivery with automated weighing, ticket printing, and precise material flow control.
Versatile Storage Options
Long-duration thermal retention, ensuring it remains usable and high-quality for extended periods.
Mobility
Triaso silos allow quick setup without heavy machinery, ideal for relocatable operations.
Durability

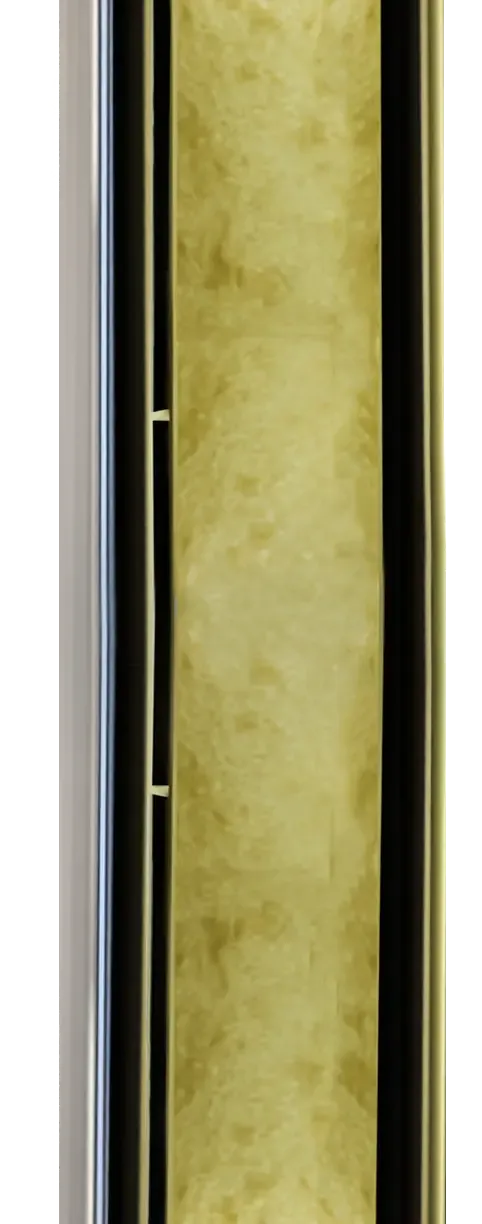

Built with reinforced materials, thermally insulated cylinders, and corrosion-resistant finishes.
Seamless Integration
Compatible with asphalt plant systems through protocols like Ethernet Industrial, Modbus, and CANopen.
Enhanced Safety
Equipped with guards, alarms, and visual indicators to protect personnel and equipment.
Cost-Effective
Reduces downtime, transportation costs, and maintenance with efficient design and reliable performance.
Improved Company Image
Industrial aesthetics elevate the visual appeal of your operation.
Customizable
Adaptable features to meet specific project requirements and operational goals.

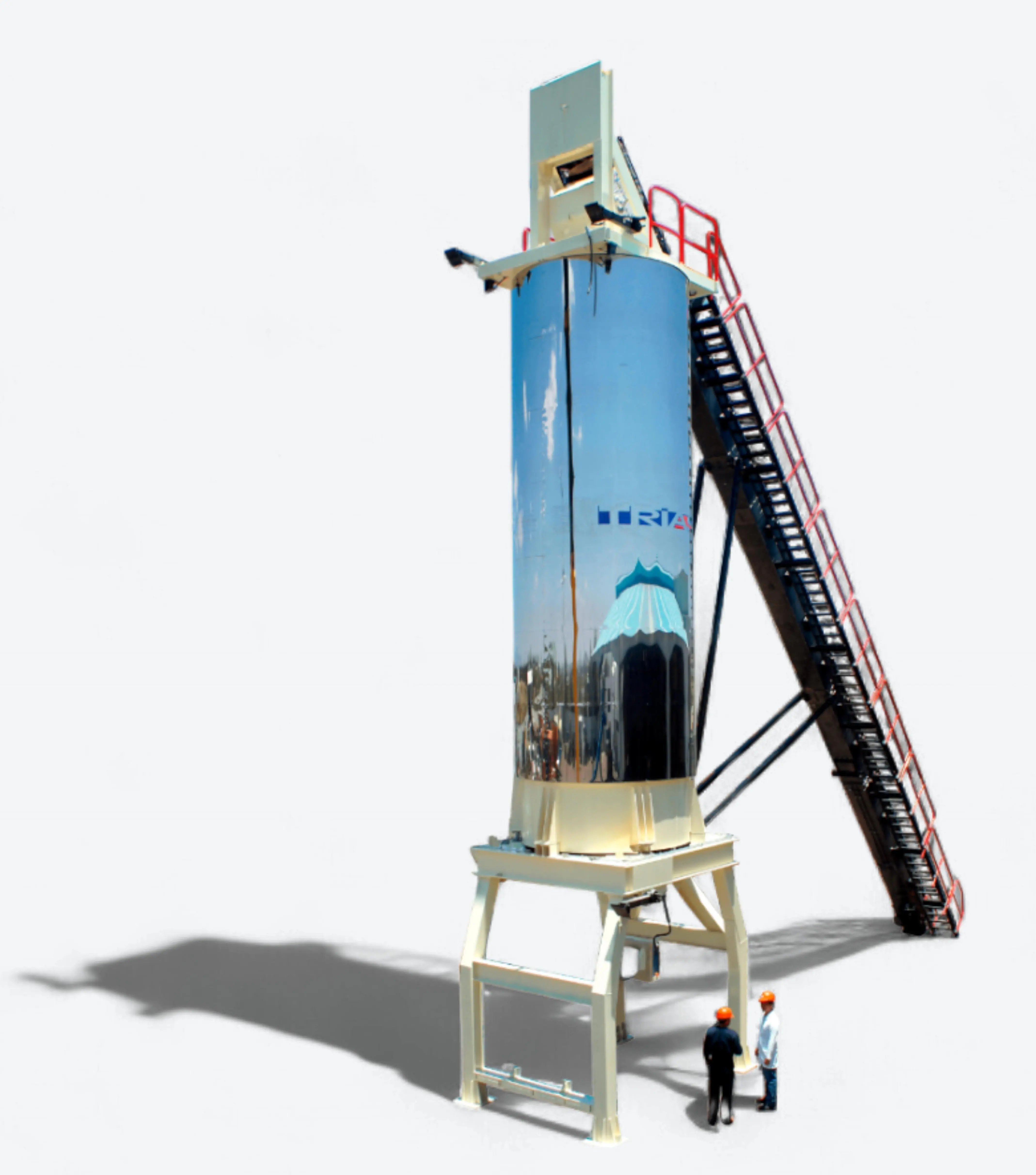

The semi-stationary is the ultimate silo, designed to offer unparalleled efficiency, flexibility, and durability for asphalt storage. Combining advanced technology with robust construction, this silo provides seamless operation in both stationary and mobile setups. Engineered for high performance, it ensures maximum productivity while maintaining the highest standards of quality and safety. Whether for large-scale projects or relocatable needs, the Ultimate Silo delivers unmatched reliability and convenience.
50,100,150 and 200 Tons capacity
Option for portability
The semi-stationary silo offers an option for portability, allowing easy transport of the drag slat conveyor along with the silo in just one trip. Equipped with a fifth wheel pin, brakes, and lamps, it ensures safe and efficient transportation. Anchor points are provided to securely mount the drag slat conveyor during transit. Rear hinged legs provide stability, that can be lifted with a crane for installation.
Mountable in low-boy
- With protections to be transported without damage.
- With lifting points for maneuvers of lifting with a crane.

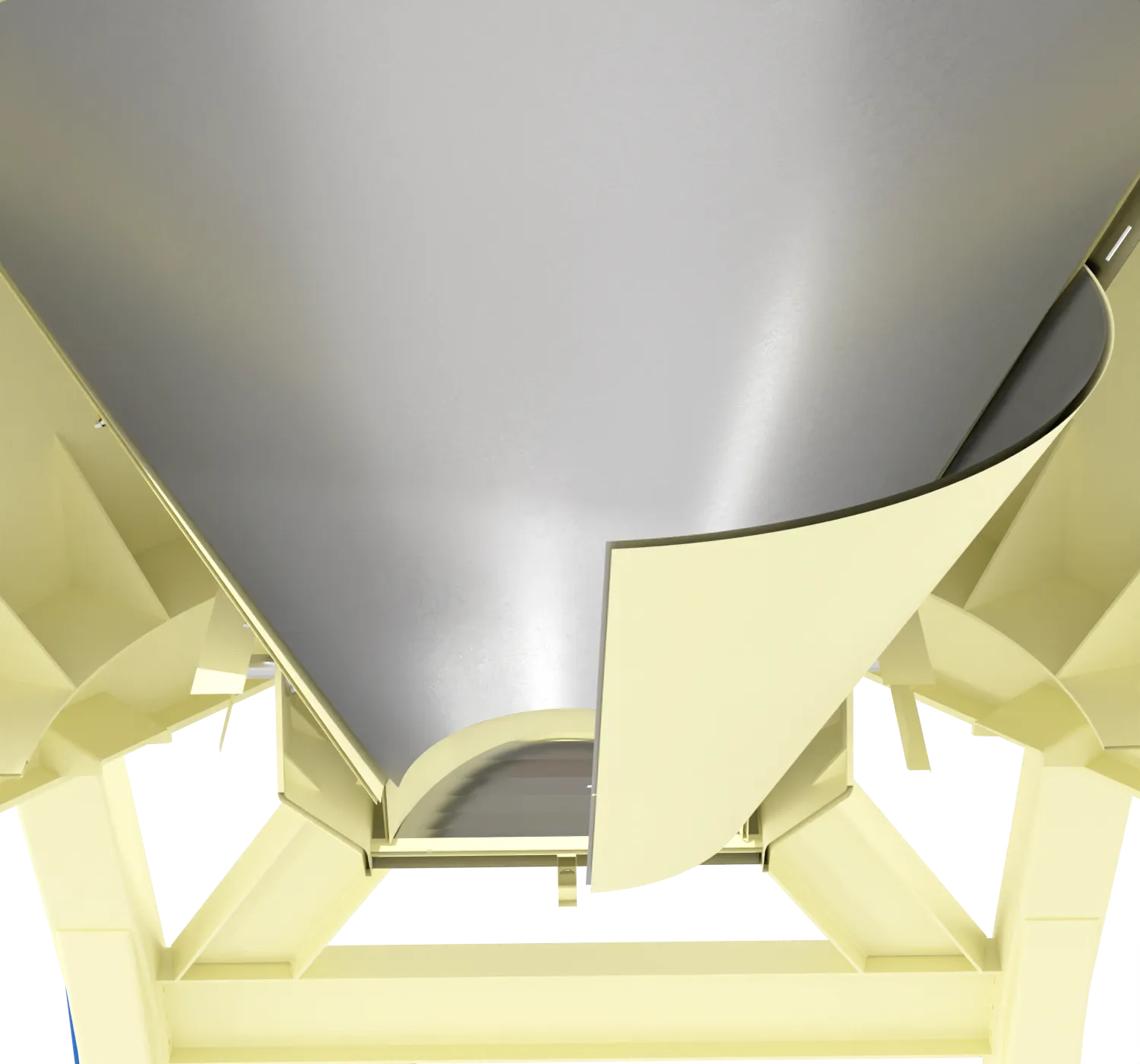

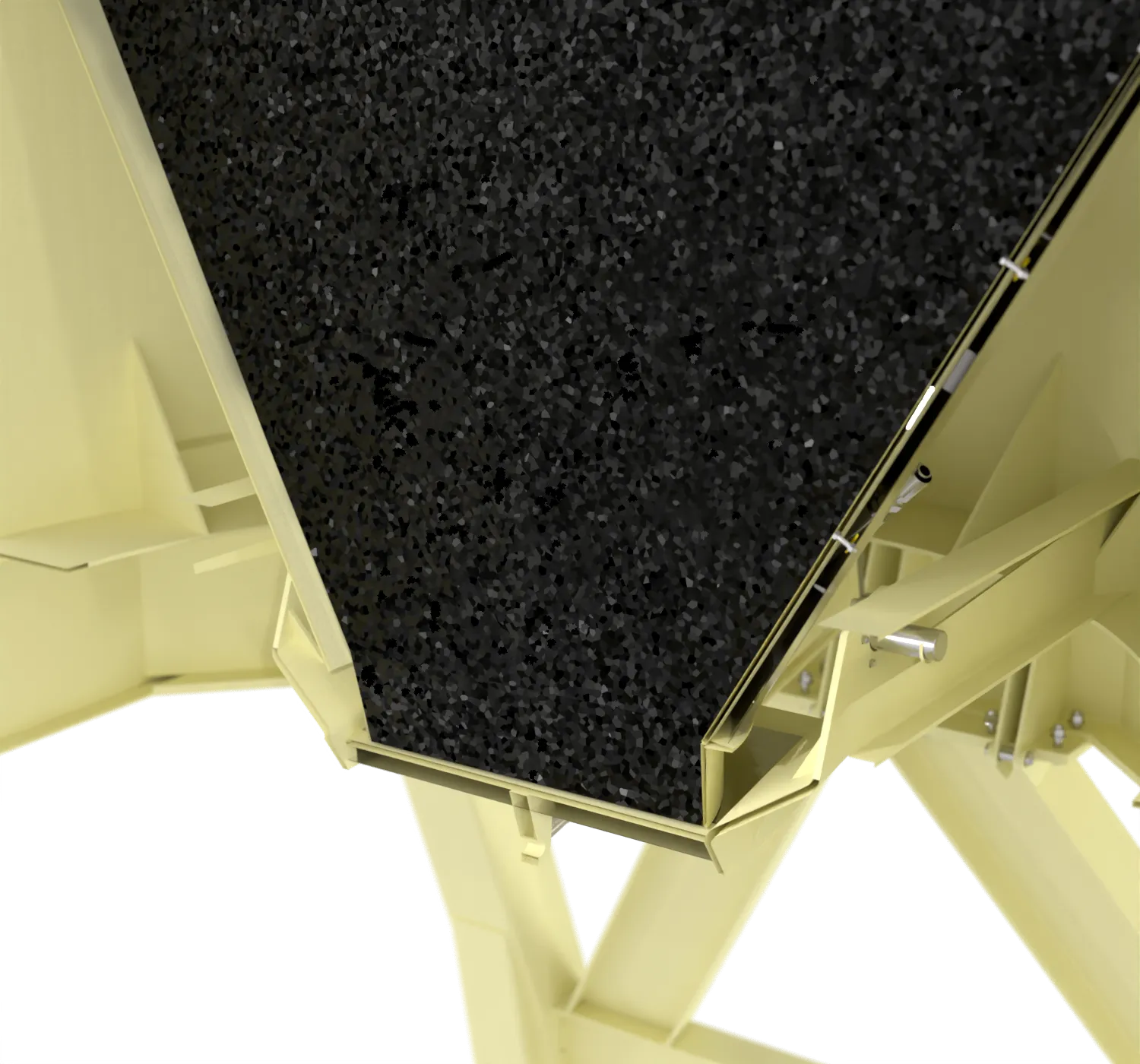

Gate with pneumatic system to release the hot mix to the trucks
Does not include compressor and air tank, it uses the air system from the asphalt plant.
With support structure, high enough to accommodate dump trucks
With opening and closing control to be integrated into the Asphalt plant console
Engineered for long-term performance, the hot mix storage silos ensure consistent asphalt quality and efficient material handling. Built with automated and manual control systems and heavy-duty materials, they provide precise control, easy mobility, and seamless integration with existing asphalt plant systems, making them an essential asset for any paving project.
The Triaso team understands that proper material handling and hot-mix storage are key to optimal performance and durability

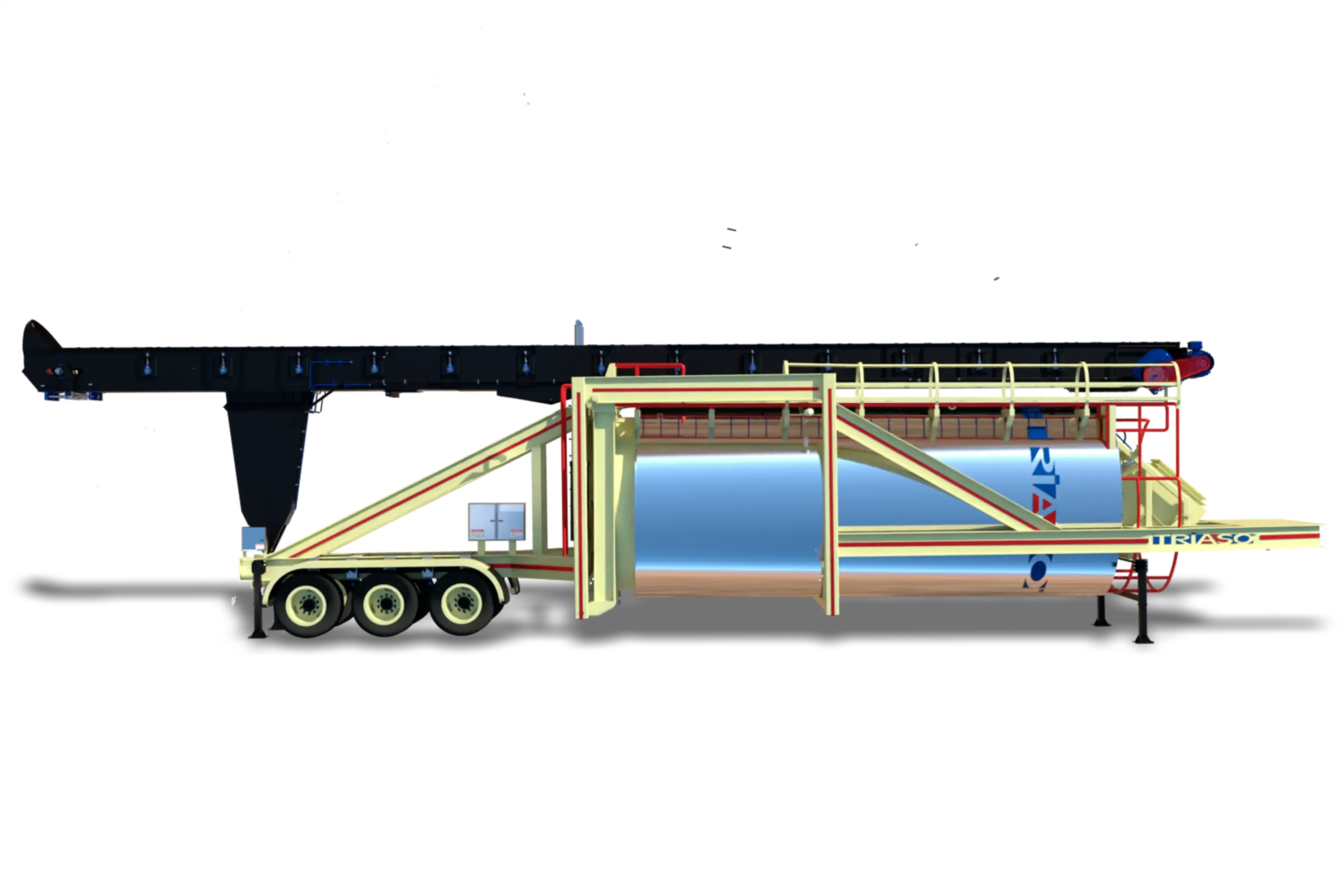

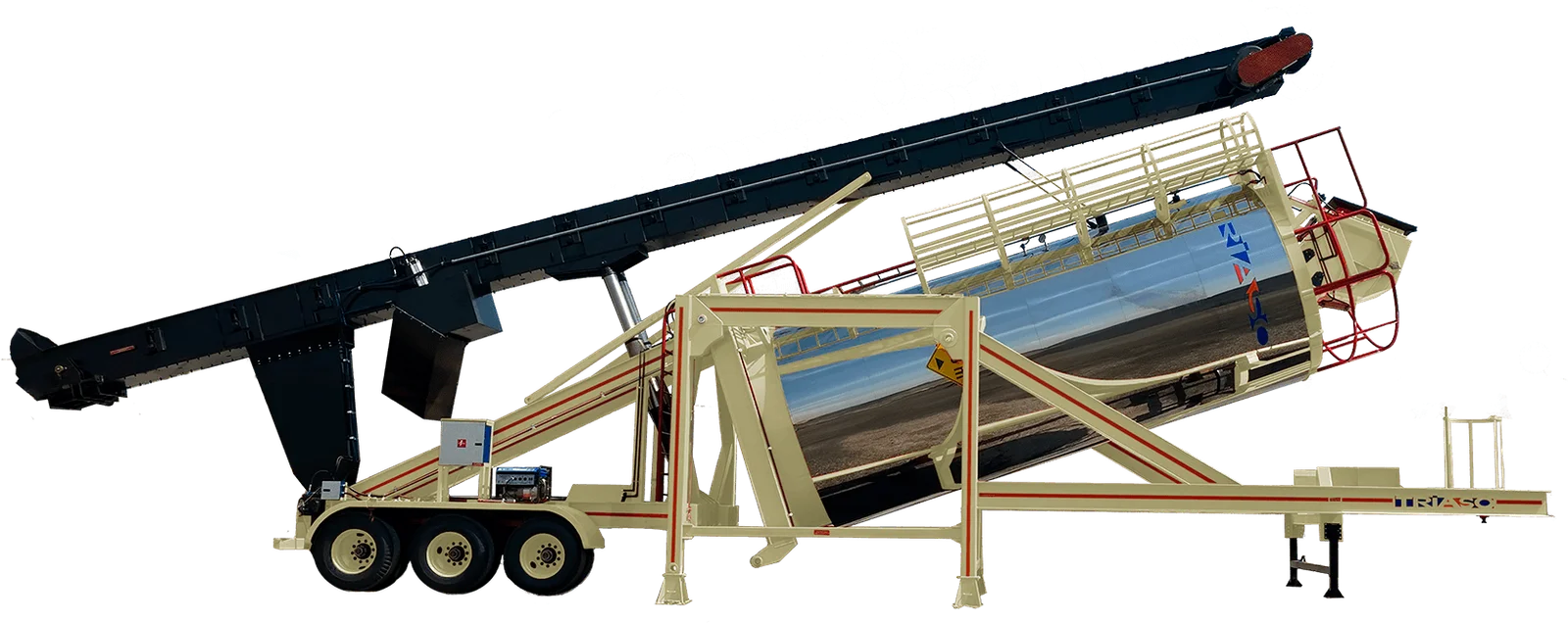

Self-erecting system

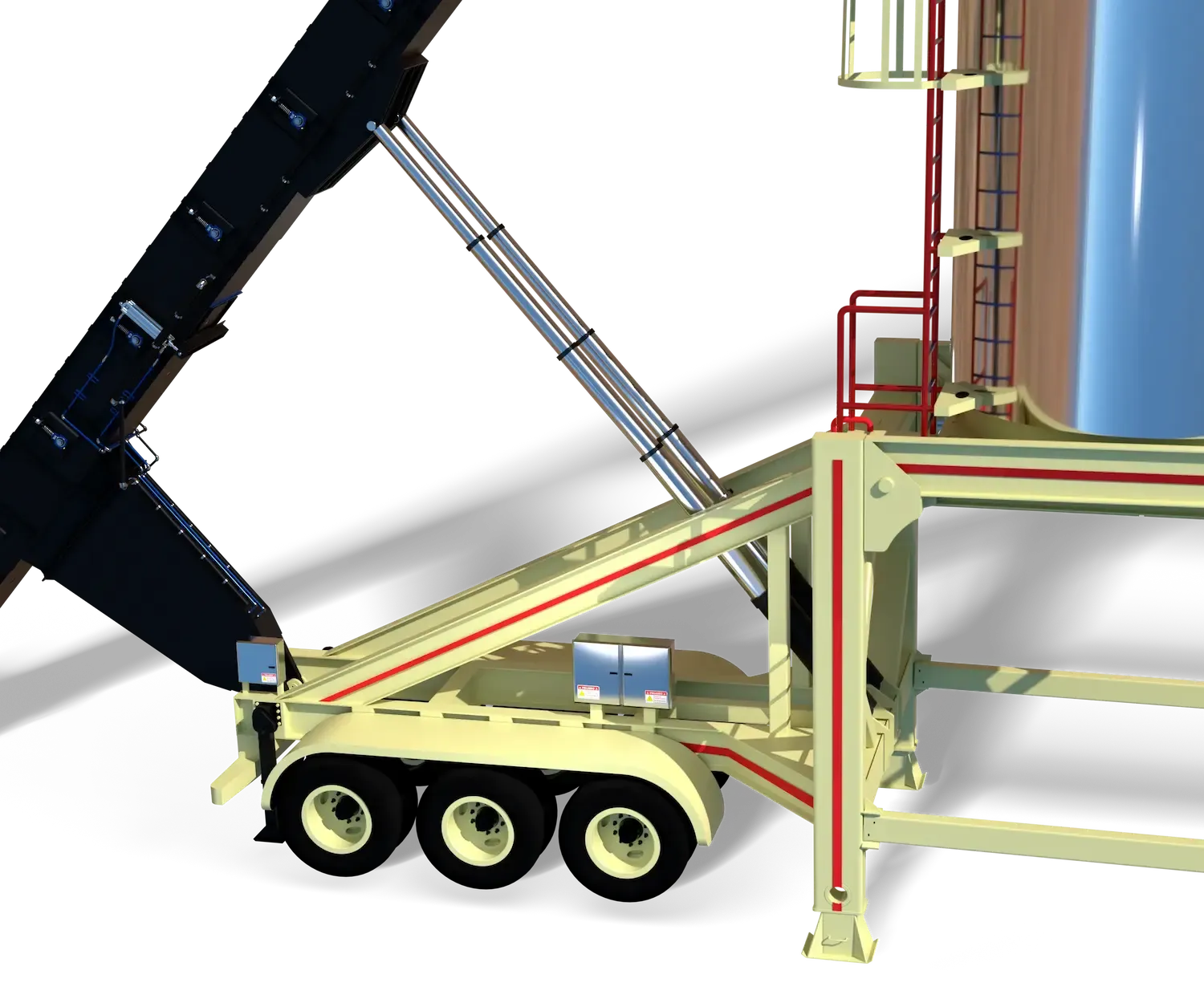

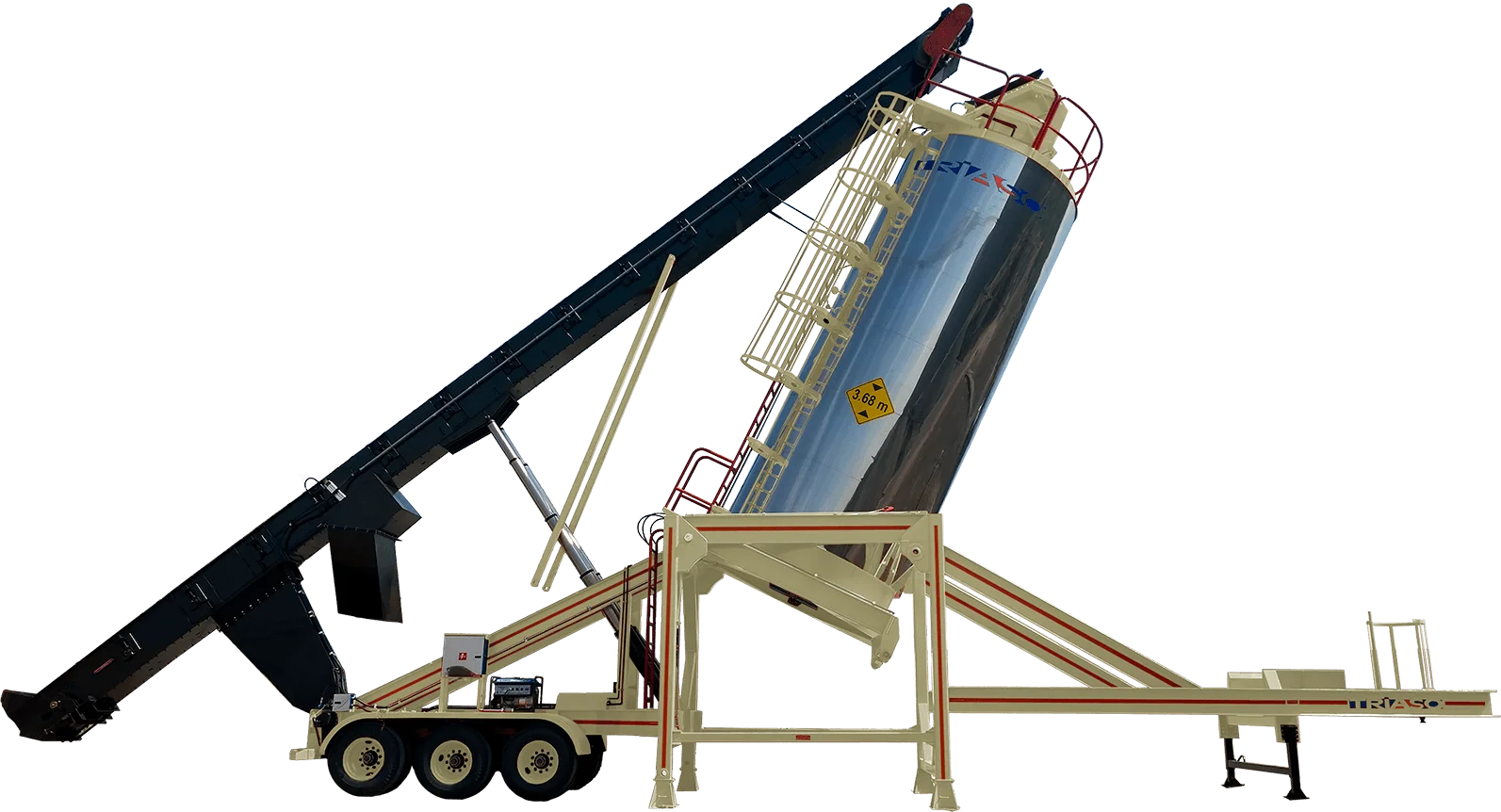

The self-erecting silo is equipped with telescopic hydraulic cylinders, enabling quick and efficient lifting. With a setup time of just 10 minutes, it ensures rapid deployment. The hydraulic locking bolts provide secure vertical and horizontal positioning, delivering stability and precision during operation.
Telescopic hydraulic cylinders for lifting
Lifting time of 10 minutes
Vertical and horizontal positioning with hydraulic locking bolts
50 and 100 Short Tons capacity
Difference between Self -erecting and Semi-stationary
Both the self-erecting and stationary silos share the same key features and advantages, offering unmatched efficiency, durability, and flexibility. The primary difference lies in their functionality.
Semi-stationary Silo
The stationary silo offers greater capacity, making it the perfect choice for larger, long-term operations.
Self-erecting Silo
The self-erecting silo provides the convenience of automated setup, making it ideal for projects requiring quick relocation.
Both options ensure optimal performance, easy integration with asphalt plants, and a robust design for reliable operation in demanding conditions.
No cranes required for installation
Triaso self-erecting silo is designed and manufactured for easy transportation, allowing installation without cranes.
The most versatile and mobile silo on the market.
The most versatile and mobile silo on the market.

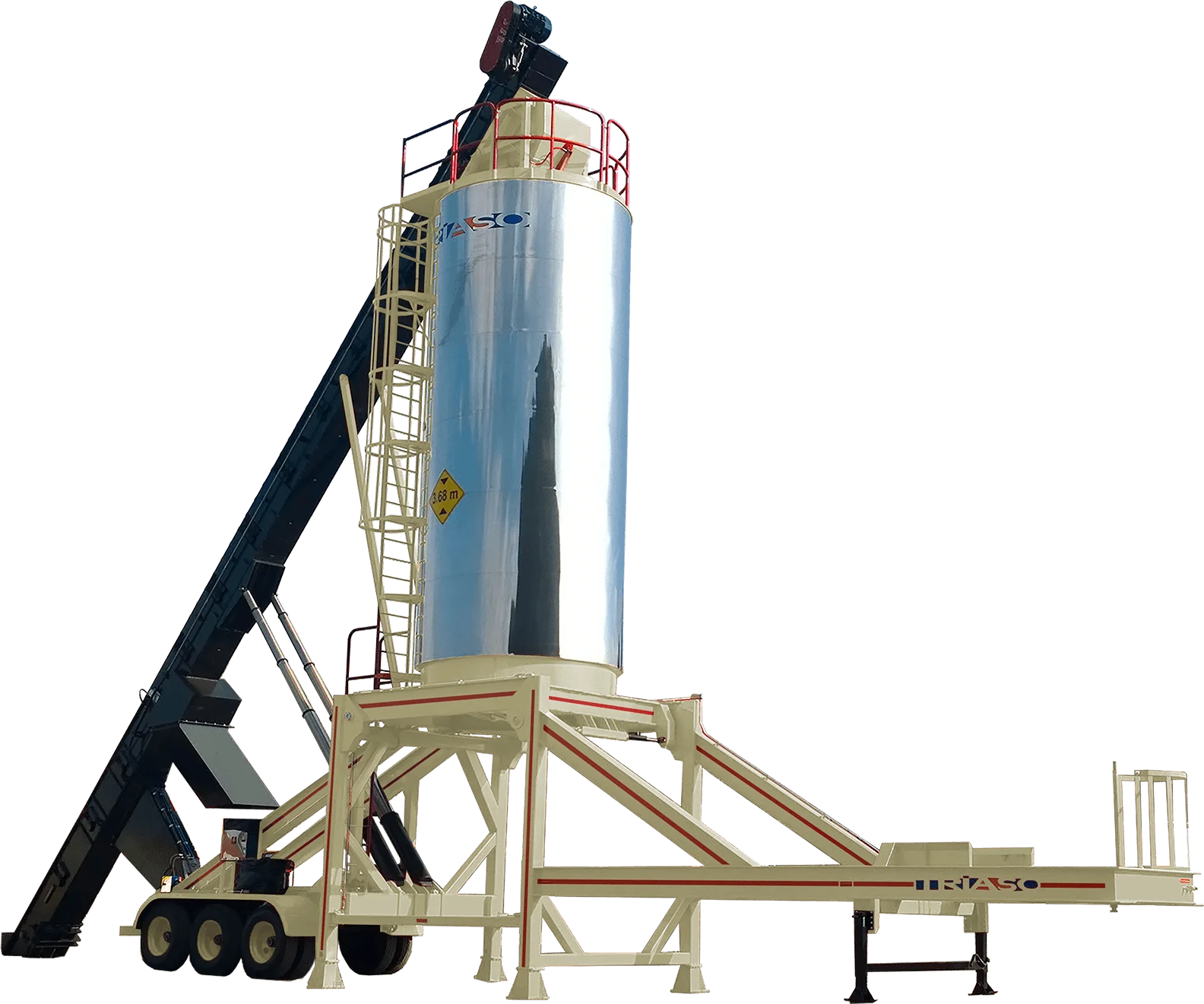

This self-erecting silo revolutionizes mobility and installation with its innovative hydraulic system. Designed for effortless relocation, it can be fully set up in just 10 minutes. The hydraulic locking bolts ensure secure placement, making it the ultimate choice for fast, stable, and adaptable asphalt storage solutions.

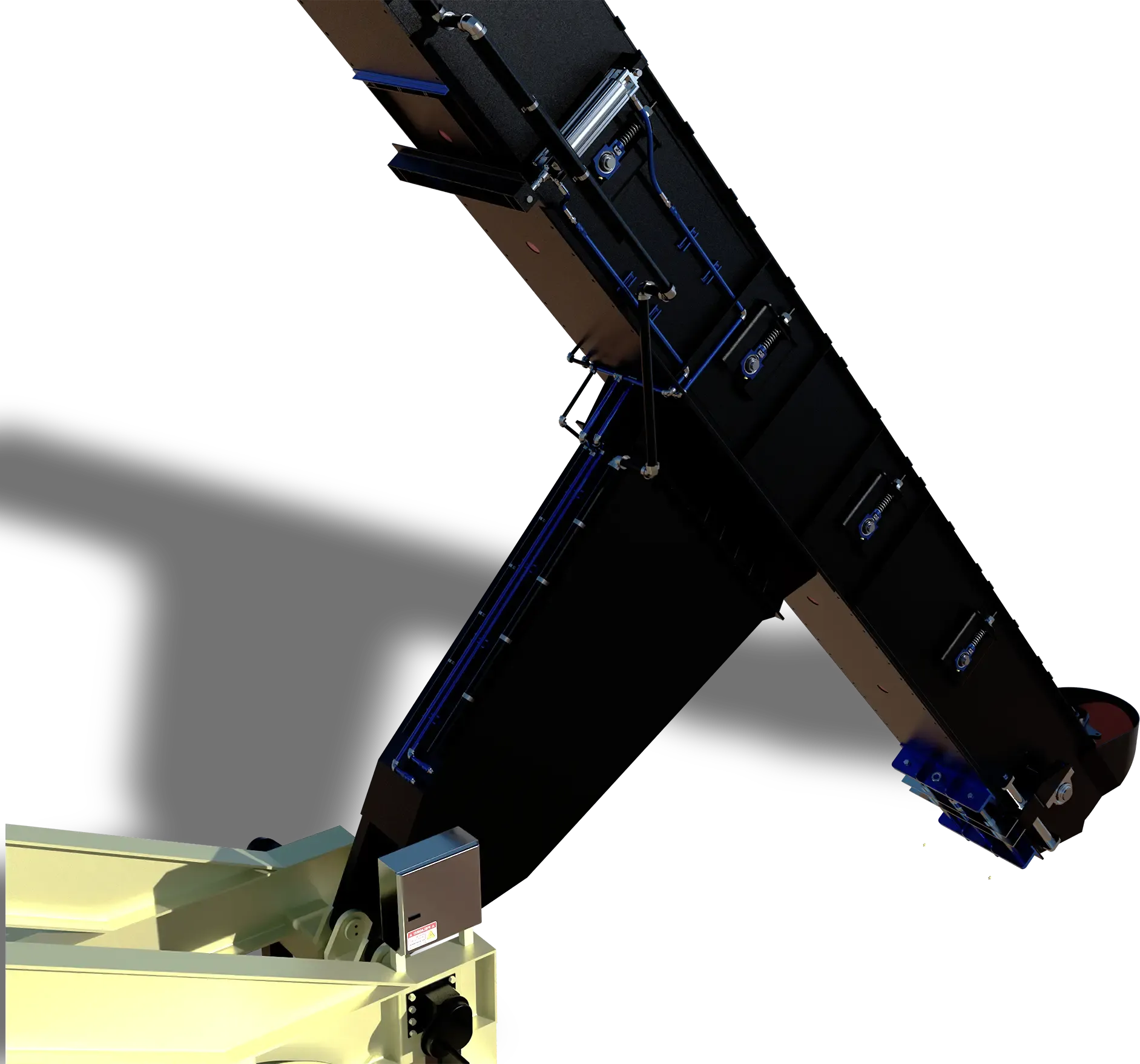

SLAT CONVEYOR

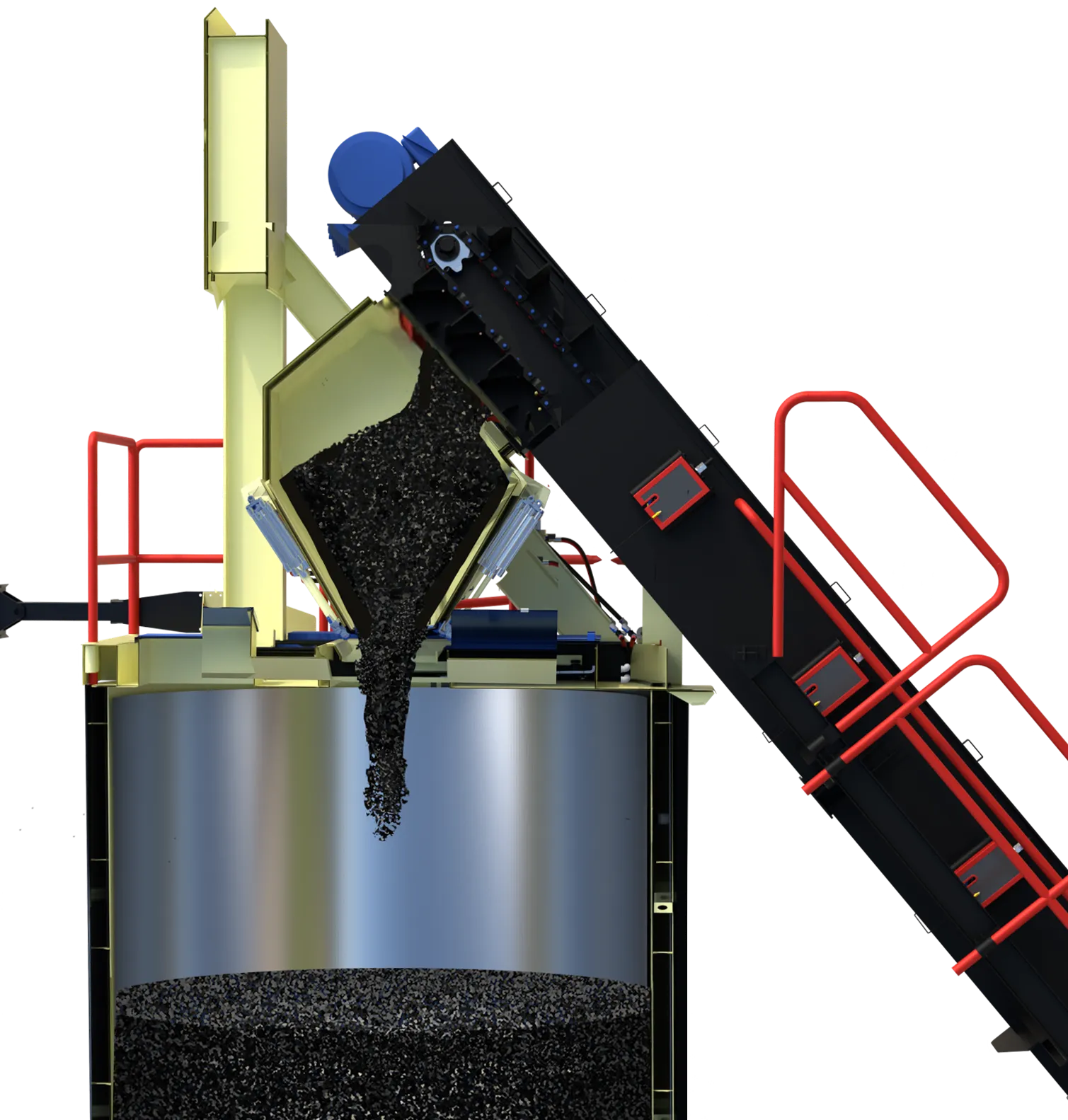

The slat conveyor is a critical component in asphalt storage systems, responsible for efficiently transferring hot mix from the drum or pugmill to the top of the silo. Built for durability and consistent performance, it ensures heat retention and mix integrity throughout the process.
Chain with a 4" pitch
The 4” pitch chain is a key component of the elevator, designed for heavy-duty operation. With a tensile strength of 50,000 lbs (22,700 kg) and floating-type chain guides to prevent jams, it ensures smooth and reliable performance, durability, efficiency, and minimal maintenance.
Optional Sensors
Chain tension sensors and overload protection for safe and automated operation.
Sealed and insulated
Reduces dust escape and protects the mix from environmental contamination.
Efficient drive system
Equipped with an industrial-grade motor and gearbox for reliable operation.
Heavy-duty construction
Reinforced steel paddles mounted on dual chains, capable of handling abrasive and high-temperature materials.
Heat retention
Enclosed body design minimizes temperature loss during vertical transport.
Smooth material flow
Optimized paddle spacing and discharge angle prevent material buildup and segregation.
Maintenance access
Top inspection doors allow quick cleaning and maintenance access.
Industrial aesthetics elevate the visual appeal of your operation.
MANUFACTURE
We manufacture directly without subcontractors, ensuring that every part meets our strict quality standards.
SPARE PARTS
Triaso spare parts are precisely designed to ensure optimal performance, extending both the lifespan of the part and the overall equipment.
CUSTOM DESIGN
In addition to our standardized designs, we specialize in providing customized solutions tailored to meet the specific needs of our clients.
