ASPHALT PLANTS
With models ranging from 10 to 500 tons per hour, Triaso asphalt plants combine quality, high-quality materials, and a sophisticated design to enhance our clients' corporate image. They deliver superior performance, high-quality hot mix asphalt, long-term cost efficiency, and compliance with the highest industry standards.
We understand the importance of keeping your equipment running non-stop. The operation of many other machines depends on the reliability of your asphalt plant.
Strict quality control ensures the operation of your asphalt plant with low maintenance for many years.
LOW MAINTENANCE
HIGH PRODUCTIVITY
HIGH QUALITY HOT-MIX
ECOLOGICAL STANDARDS
HIGHLY PORTABLE
ECONOMIC LONG-LASTING LIFE
UP TO 50% RAP
CONTINUOUS
LOW FUEL CONSUMPTION
With Triaso, Become the Exclusive Provider of Hot Mix for All Paving Projects in Your Region
Our customers choose Triaso asphalt plants over other brands for their high quality, reliability, and competitive pricing.
Two Year Warranty
We stand behind our top-tier quality with the
highest warranty in the market
TRIASO®

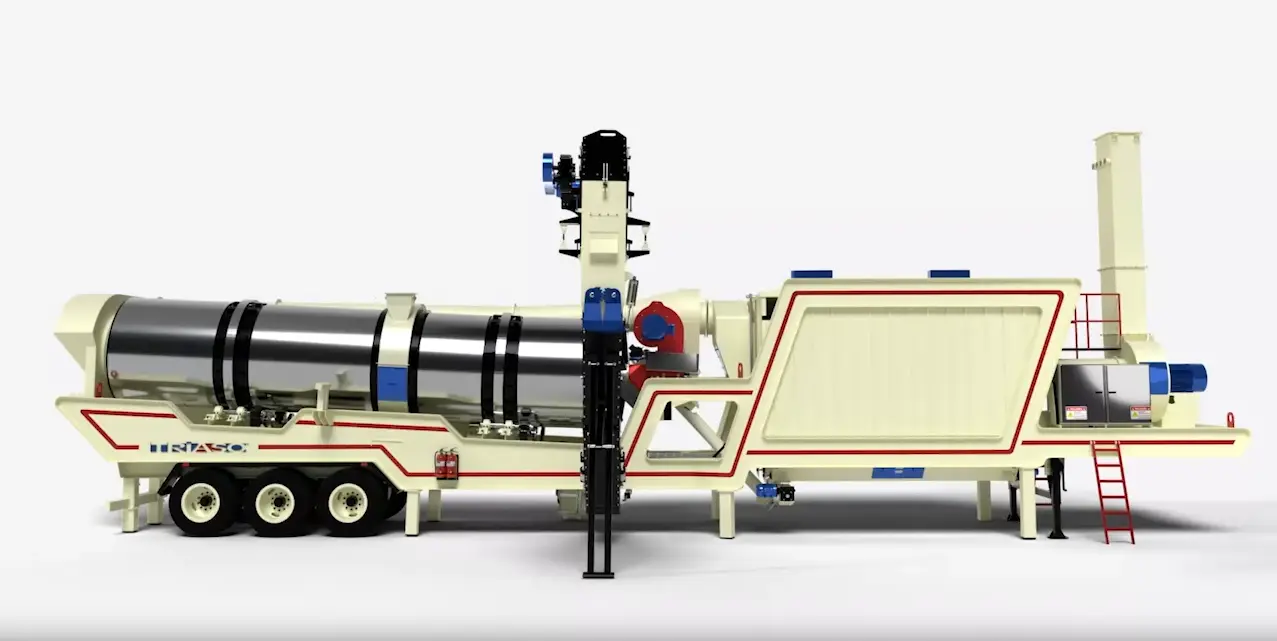

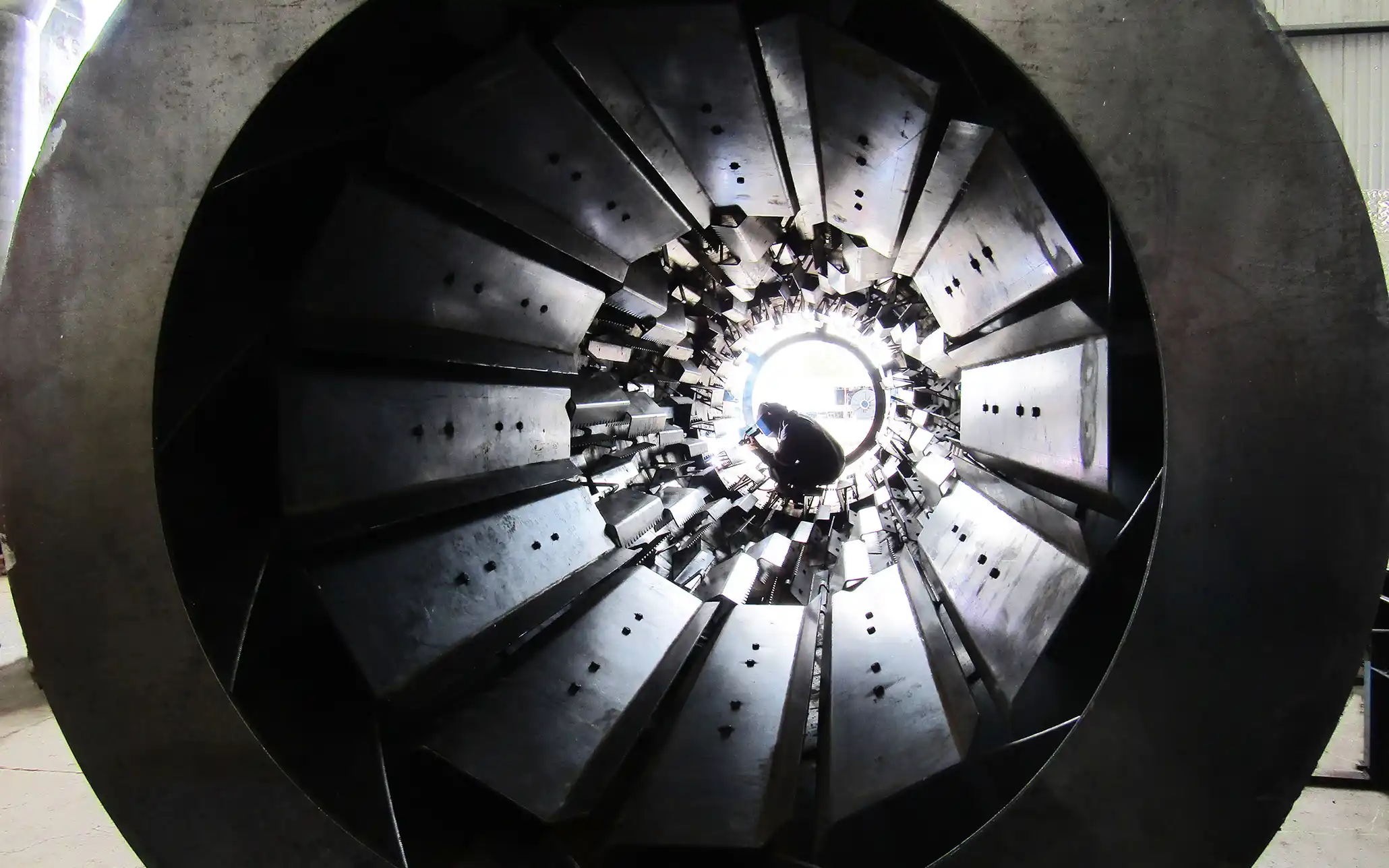

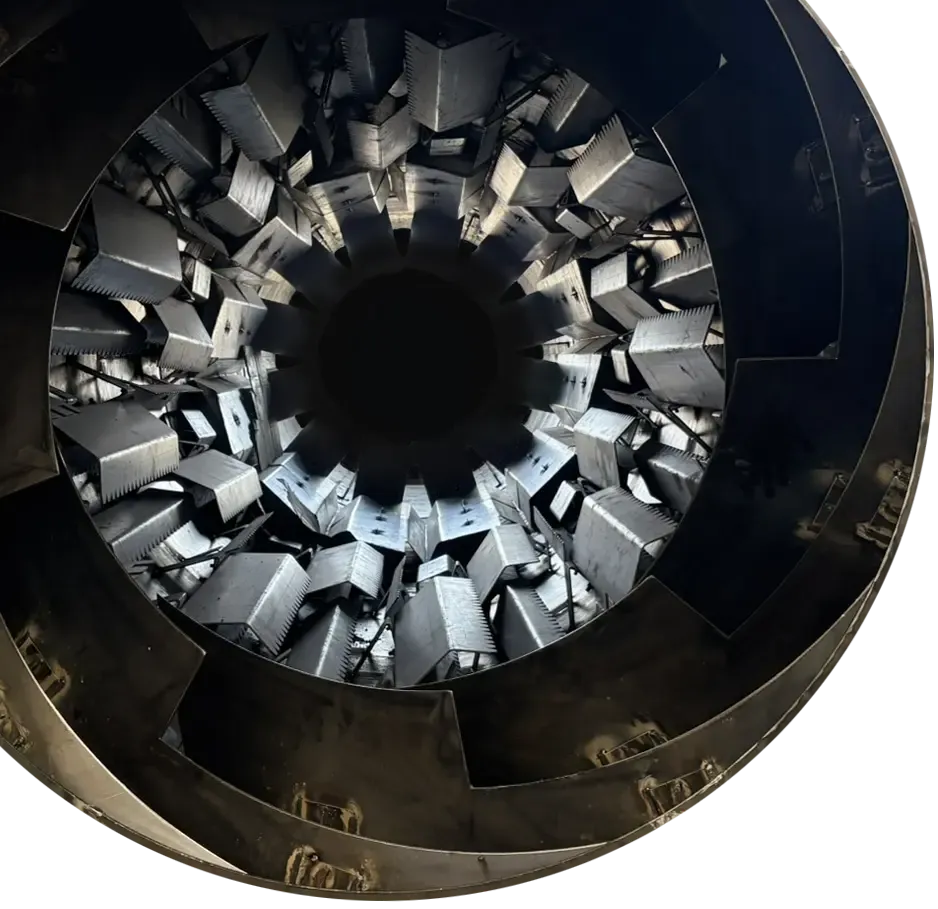

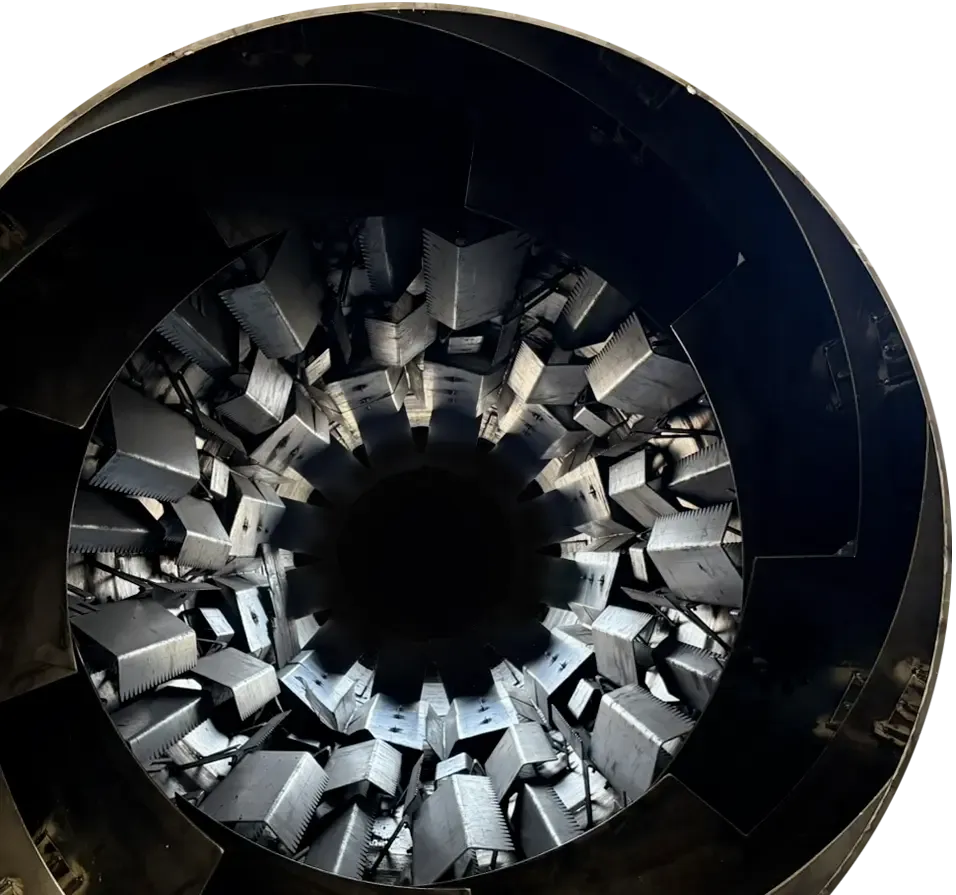

DRUM MIXER
Heavy-duty drum mixers engineered for continuous operation and precise asphalt blending. Built with heat-resistant alloy steel and optimized air-flow design, they achieve uniform drying, minimal fines loss, and maximum fuel efficiency — ensuring long service life and consistent performance under demanding conditions
RANGING FROM 10 TO 500 TPH
Two Year Warranty
We stand behind our top-tier quality with the
highest warranty in the market

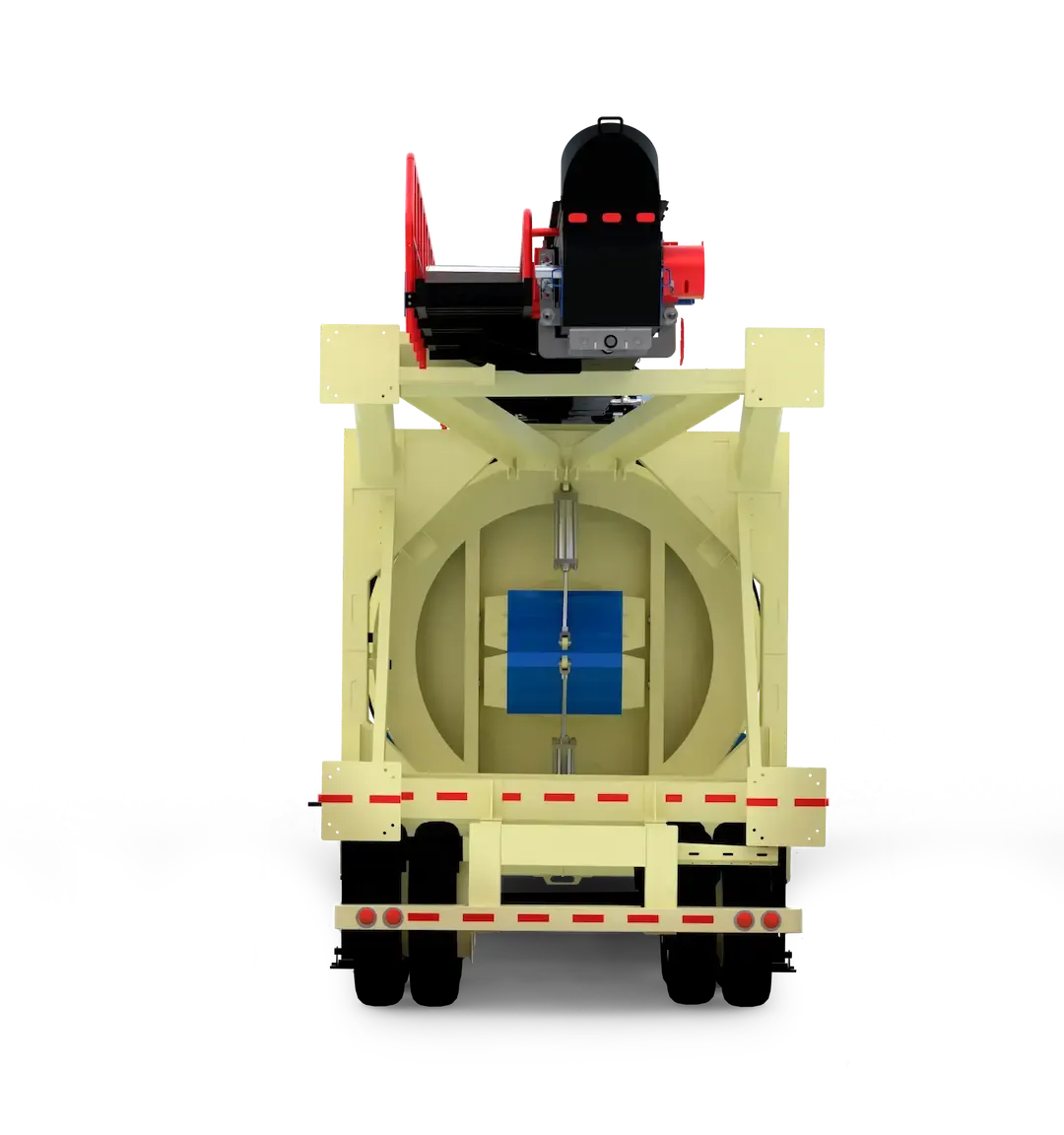

Fully Portable
All components of our asphalt plants are engineered for complete transportability, allowing for efficient and quick setup. Their robust structure enables a smooth, hassle-free installation directly on-site.
The complete asphalt plant can be transported in only three trailer loads, simplifying logistics and reducing setup time.
Integrated 5th wheel. Direct transport to site
- No lowbed or flatbed trailer.
The complete asphalt plant can be transported in only three trailer loads, simplifying logistics and reducing setup time.
Entire plant in just three shipments
- Simplified logistics.
- Shorter installation time
We design our equipment with an integrated fifth wheel, eliminating the need for a low-boy or a flatbed trailer during transport.
Retractable Drag Slat for Efficient
Transport and Operation
The vertical drag slat features a retractable configuration that complies with DOT transportation height limits, ensuring safe and legal road transport. Once the drum mixer is installed on-site, the drag slat extends to its full operational height, allowing efficient material discharge into trucks with minimal setup time. This smart design improves logistics while maintaining high performance during loading and discharge operations.
RAP COLLAR & BIN
Our RAP system can incorporate
up to 50%
of recycled asphalt pavement
The drum collar is engineered to provide the controlled and efficient entry of Recycled Asphalt Pavement (RAP) into the mixing zone. Fed directly from the RAP bin via a dedicated conveyor, the material enters the drum smoothly and uniformly.
For every 10% of RAP,
the cost of hot-mix production
decreases 7%
By recycling up to 50% RAP with our plants,
you can achieve approximately 35% savings in hot-mix production costs.

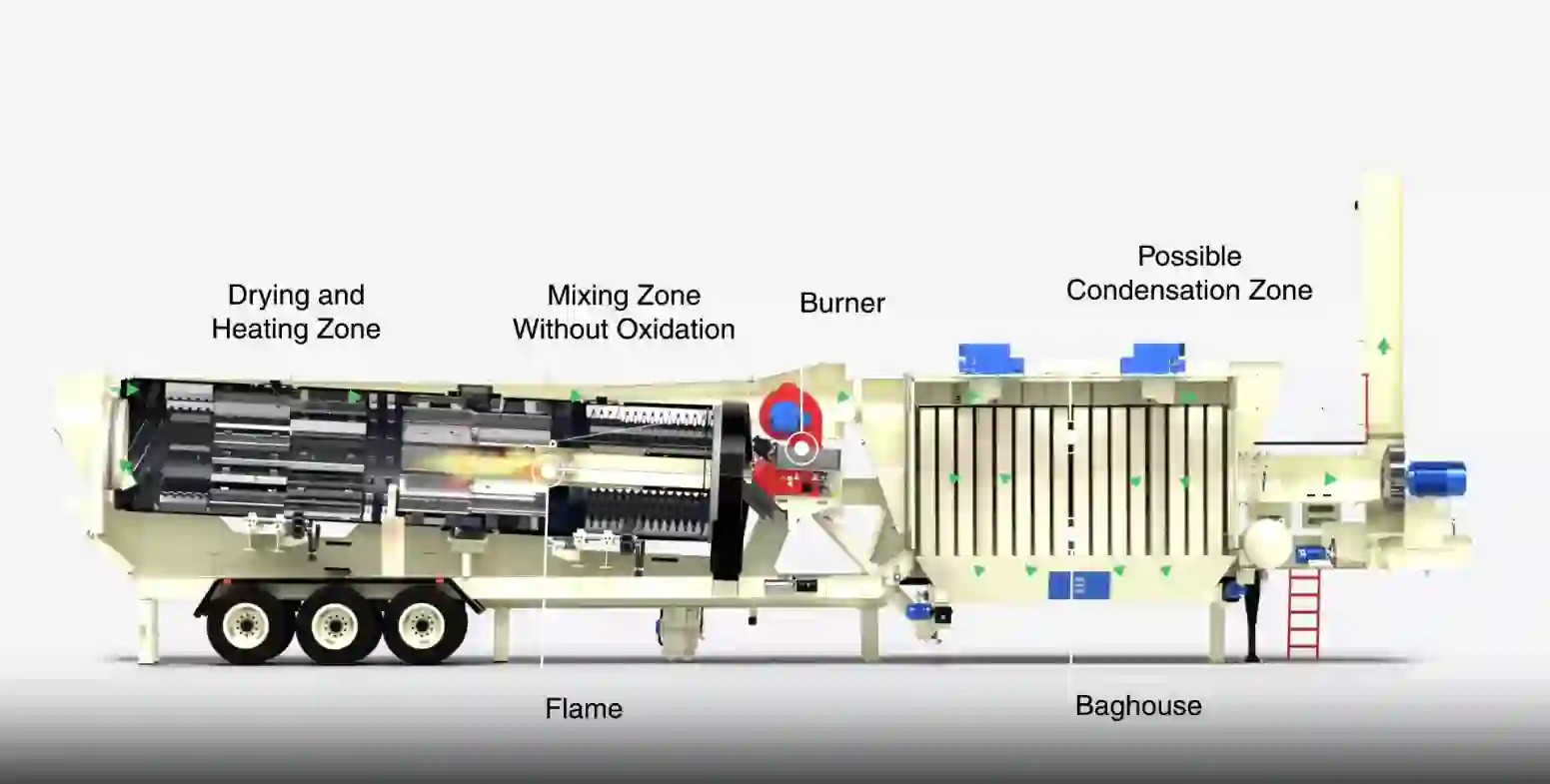

DRUM MIX MODIFICATION FOR RAP
RAP is introduced through a collar located at an intermediate point of the drum, before the mixing zone. From this point on, the material never comes into direct contact with the burner flame.

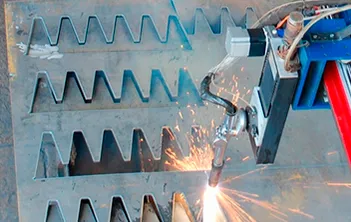

The dedicated RAP flight are engineered to provide balanced heat distribution, smooth material flow, and reduced blue smoke or buildup.
- RAP ENTRY FLIGHTS
- Variable-Speed Rotation Drives

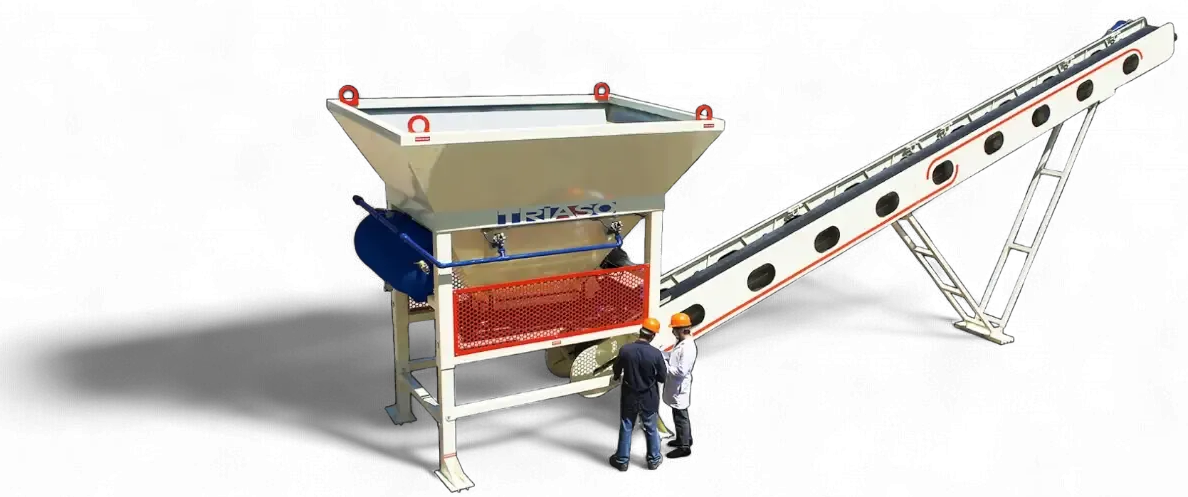

RAP BINS
Triaso® RAP Bins are designed to efficiently handle and transport reclaimed asphalt pavement (RAP). For handling the heavy, abrasive nature of RAP, reducing downtime and ensuring high operational efficiency.

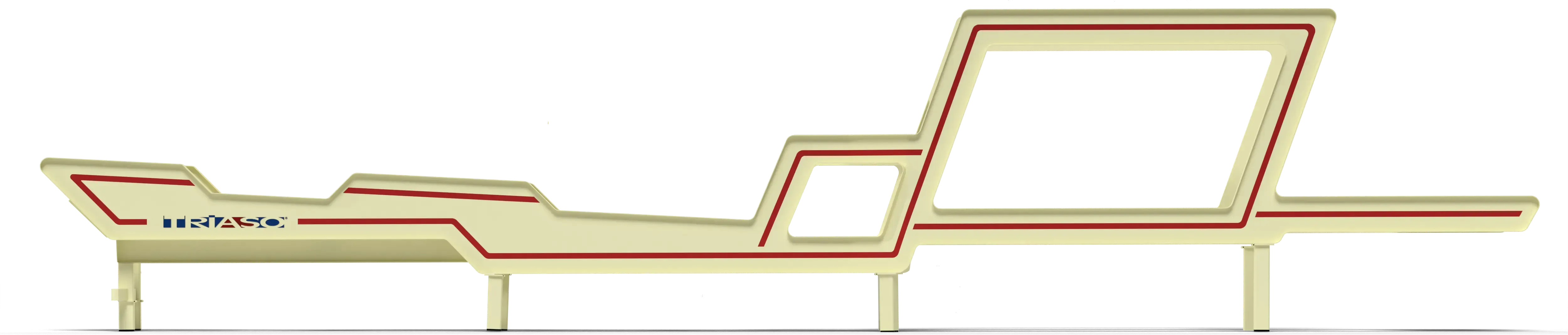

Learn More AESTHETIC SIDE PANELS
ENHANCE YOUR COMPANY IMAGE
WITH TRIASO DESIGN
The aesthetic panels are designed not only for visual appeal but to enhance the professional image of your equipment and your company.

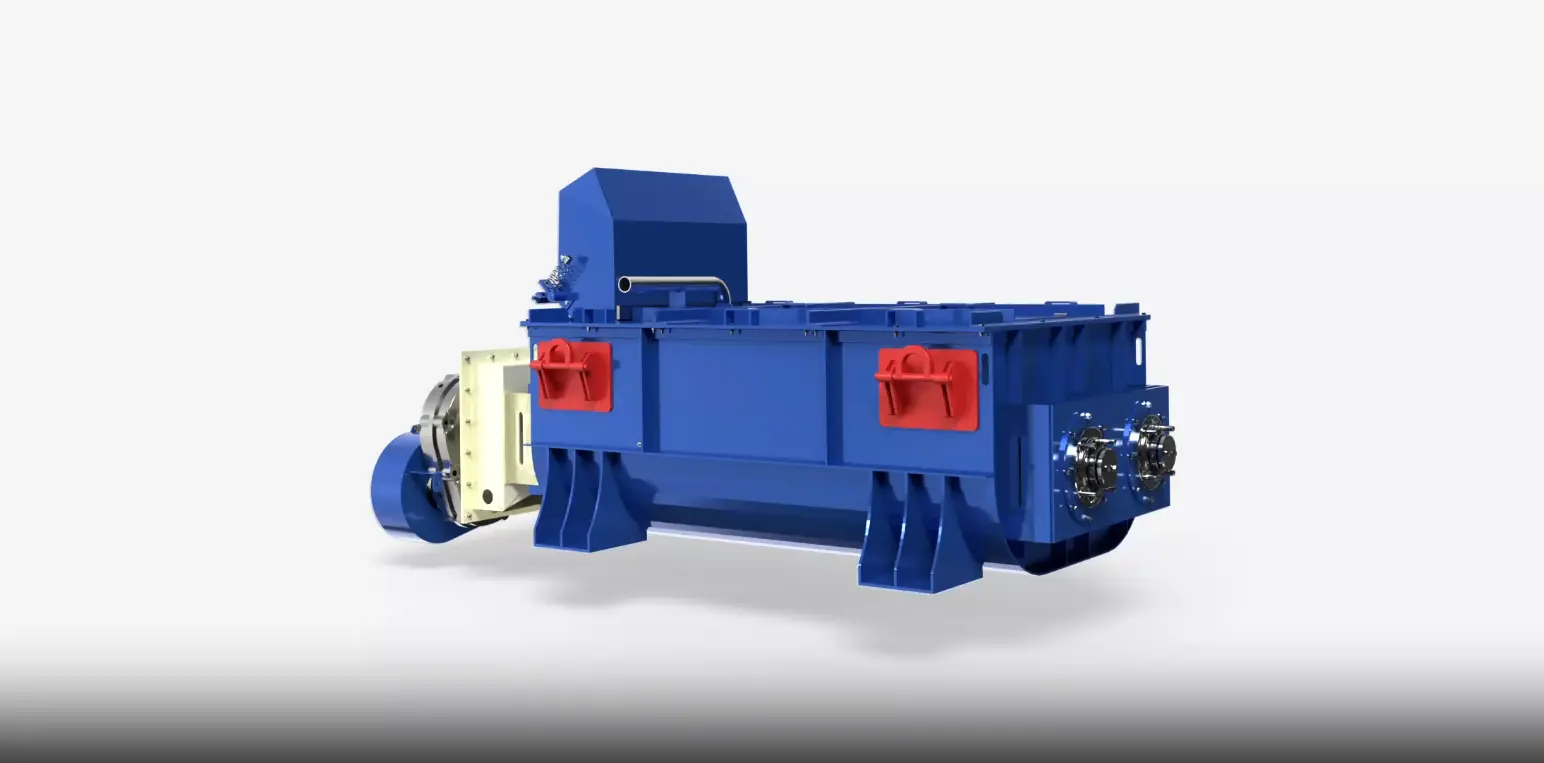

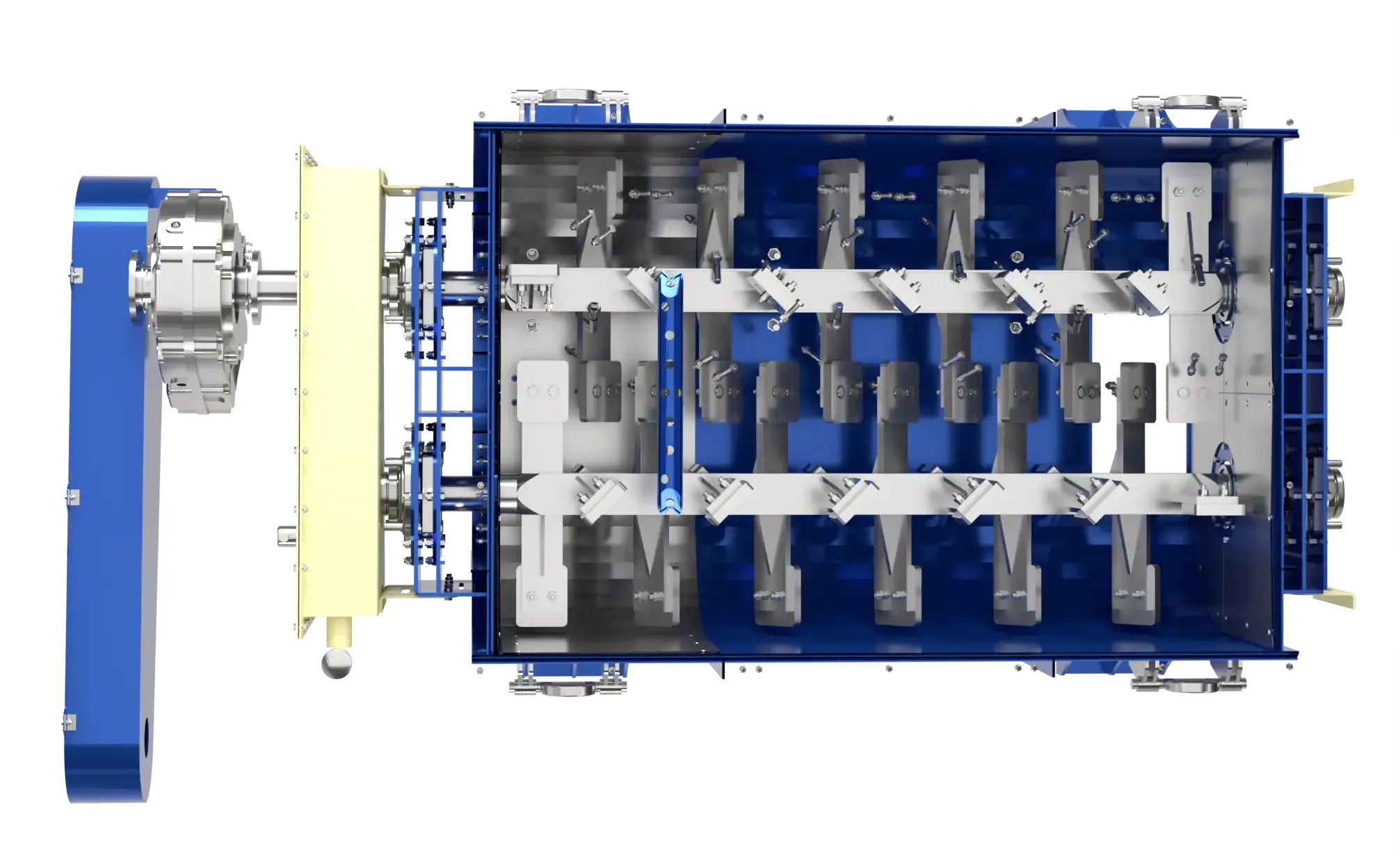

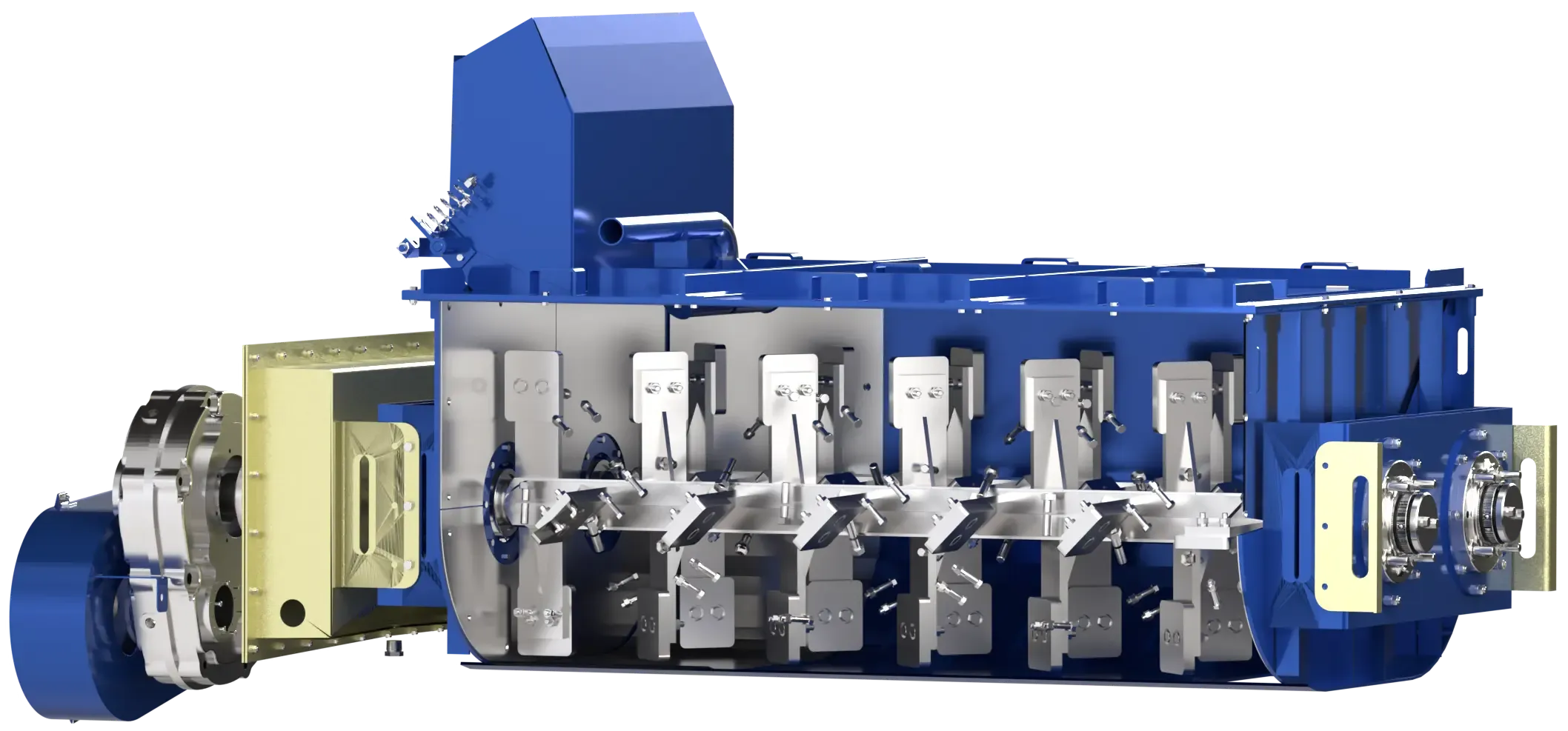

Hot-mix Pugmill
The pugmill is an optional component at the final stage of the drum-mix process, used when the hot mix design or project specifications require additional blending to meet uniformity requirements. Equipped with two heavy-duty shafts and precisely engineered mixing flights, it ensures complete homogenization and consistency throughout the material.

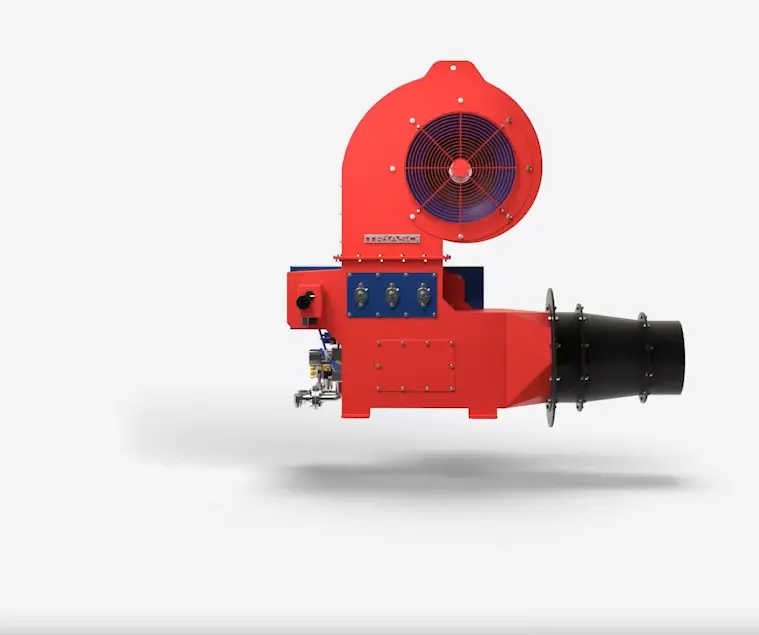

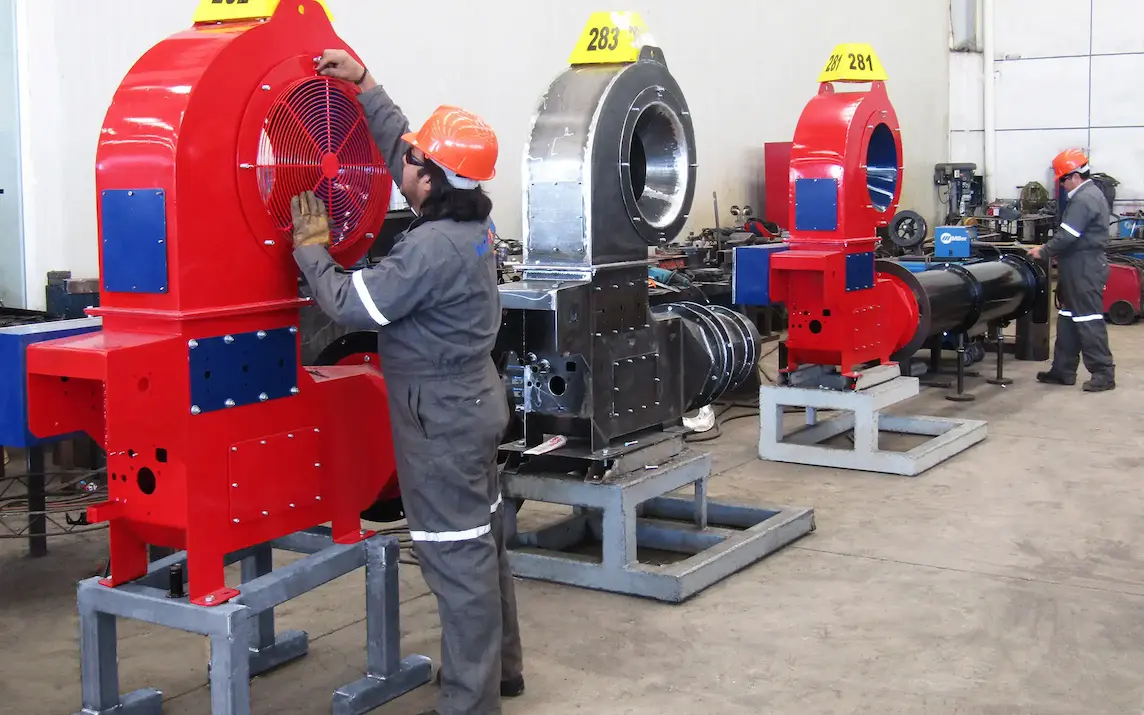

BURNERS
From 6 to 125 million Btu/Hr, with preheater and filter
Low NOx emissions
Low NOx emissions (nitrogen oxides) are achieved, minimizing the release of this greenhouse gas, which is strictly regulated in many regions, mainly in urban areas. The system can be equipped with a flame protection module that further reduces NOx levels, reaching near-zero emissions.
By achieving total combustion, several issues are avoided:
- Atmospheric pollution.
- Contamination of the hot-mix.
- Baghouse clogging and fire risk.
100% regulated air
The burner regulates 100% of the air combustion without relying on the drum's exhaust system. This ensures complete combustion and 100% fuel utilization.
- A sealed installation prevents cold air from entering, that would otherwise be used to heat it and allowing precise, efficient combustion.
- Efficiency remains stable regardless of temperature changes throughout the day.
Our latest burner innovation features an oxygen sensor that automatically regulates excess oxygen to no more than 3%, eliminating the need for manual fuel carburization adjustment when relocating the equipment. Thanks to our self-carburizing system, NOx levels remain even lower.
FUEL PREHEATERS
With our preheaters, we reduce fuel viscosity, ensuring proper atomization and clean combustion — without delays or the need for external heat sources.
We raise fuel temperature up to 40 °C, even with flow rates up to 840 liters per hour.
Problems caused by not preheating low-cost fuels:
- Unburned microdroplets cause significant fuel loss.
- The hot-mix asphalt becomes contaminated with unburned fuel.
- This contamination drastically reduces the pavement's lifespan.
- Additionally, the atmosphere is affected by gases from incomplete combustion.
Efficient and environmentally responsible
You get lower fuel consumption and cleaner operation, producing fewer NOx emissions without compromising performance.
Included in every plant, not as a costly add-on
Other brands offer total-air burners and preheaters as expensive extras. At Triaso®, we include them as standard equipment in every plant configuration — because clean combustion shouldn’t be optional.

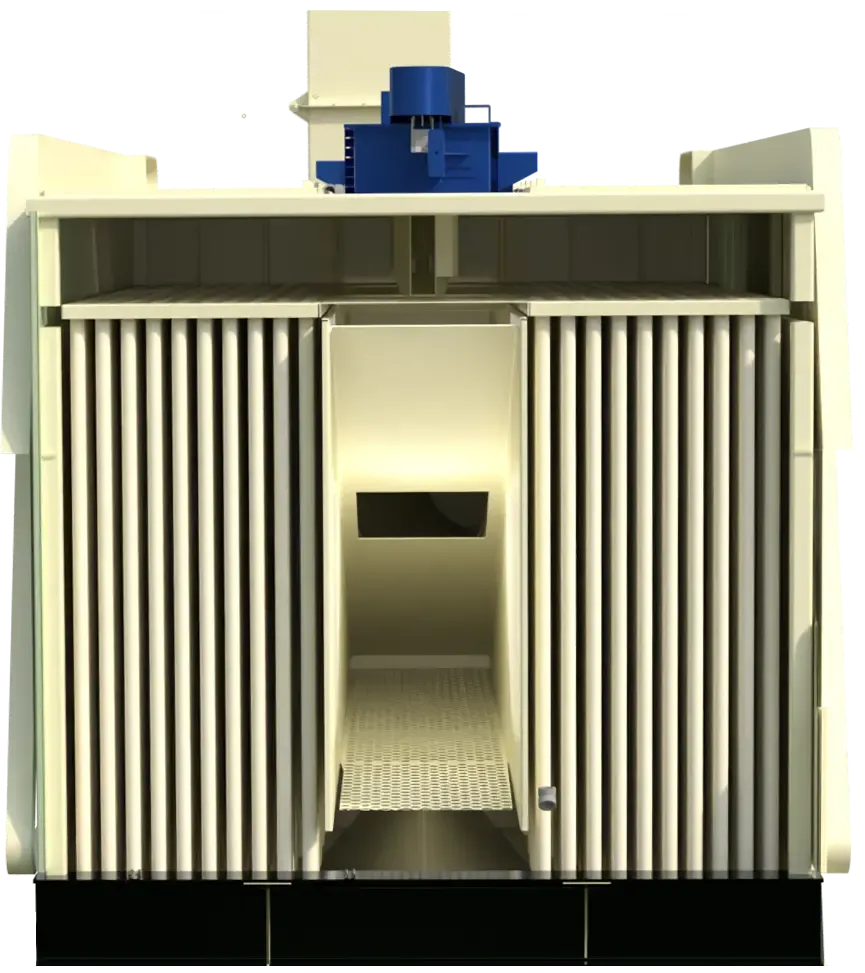

BAGHOUSES
A continuous cleaning system keeps the filter bags operating at all times. Compressed air pulses are released through a supersonic nozzle, creating a pressure wave that rapidly expands each bag and dislodges the dust layer from its surface. The released fine particles fall into the lower collector, where they are reintegrated into the production process.
Elimination of sludge pits and their costly operation.
4 - 90
thousand ACFM
Baghouses capacity
99.99
%
Fine particle filtration efficiency
Different Types of Filter Bags and Their Specific Applications:
- Polyester
- Nomex
- Polyamide (P84)
Different Types of Filter Bags and Their Specific Applications:
- Polyester
- Nomex
- Polyamide (P84)
Advantages of fines return system
Advantages of fines return system
- Improves the gradation of the hot-mix.
- Increases the density and cohesion of the final material.
- Reduces the consumption of virgin aggregates, optimizing production costs.
- Decreases environmental pollution by reincorporating captured dust.
- Contributes to a more uniform and durable mix with better structural properties.
Mechanism of baghouses available in pulse jet and reverse jet
Pulse Jet: A cleaning system that uses compressed air bursts to dislodge dust and debris from the filter bags, maintaining continuous airflow.
Reverse Air: A cleaning system that blows air in the opposite direction to remove dust from the filter bags, typically used in larger baghouses or high-dust applications.
Triaso® baghouses are portable, self-contained units that operate at air-to-cloth ratios up to 8:1
Learn More

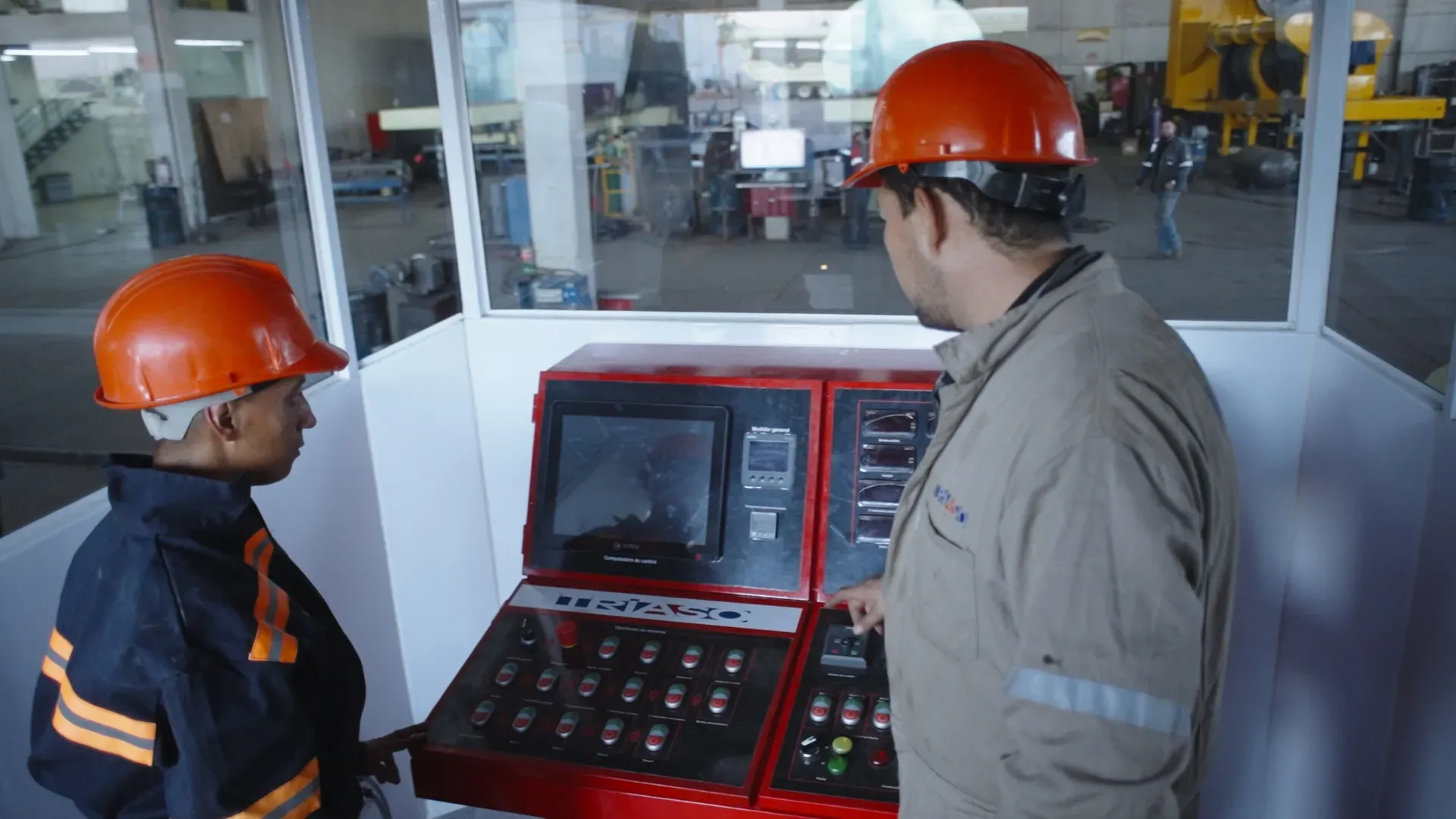

CONTROL CABIN
Walls and roof made of 16-gauge sheet metal with insulated panels.
Provides durability and thermal insulation, ensuring structural strength while maintaining a controlled interior environment.
Towable control cabin designed for quick, safe, and practical installation at any job site.
Prepared for the installation of cameras, digital log systems, or real-time office connection, according to customer requirements.
Our control system is designed to be operated by a single person, reducing labor costs and simplifying plant operation.
MANUAL OPERATION
We understand the importance of full operational control. That’s why our system includes a complete manual operation mode. We don’t depend on a fully automated setup—if a component stops working, the plant can continue running manually without interrupting production
Triaso Control System
Offering a practical and efficient way to manage industrial equipment operations. With advanced monitoring and automation, it simplifies the Asphalt Plant operation and personnel. Control of key processes like temperature, material dosing, and production rates.
Cloud historical reports
Artificial Intelligence
Fewer operators full control
Remote cloud monitoring
Integral 10 Tph
Asphalt Plants
Ideal for municipal jobs and road maintenance
Full-Scale Technology in a Compact Format
Everything in a single unit
Counterflow drum mixer
External pugmill mixer
Aggregates bin

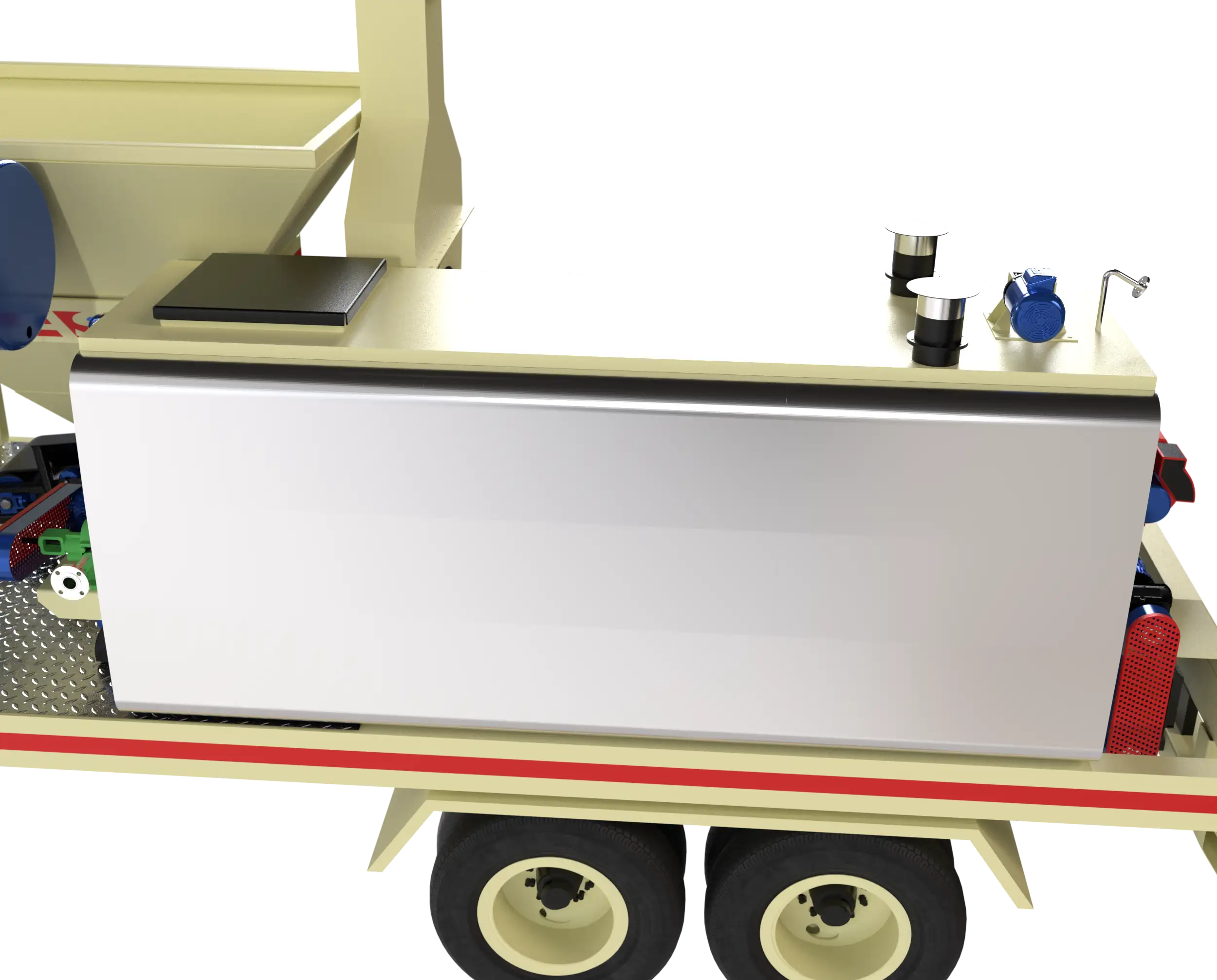

Asphalt tank
Electric Generator
Control Cabinet
Fuel Tank
Burner
Sell at a lower price, attract more customers, and achieve higher profits
Learn more about our 10 TPH asphalt plants

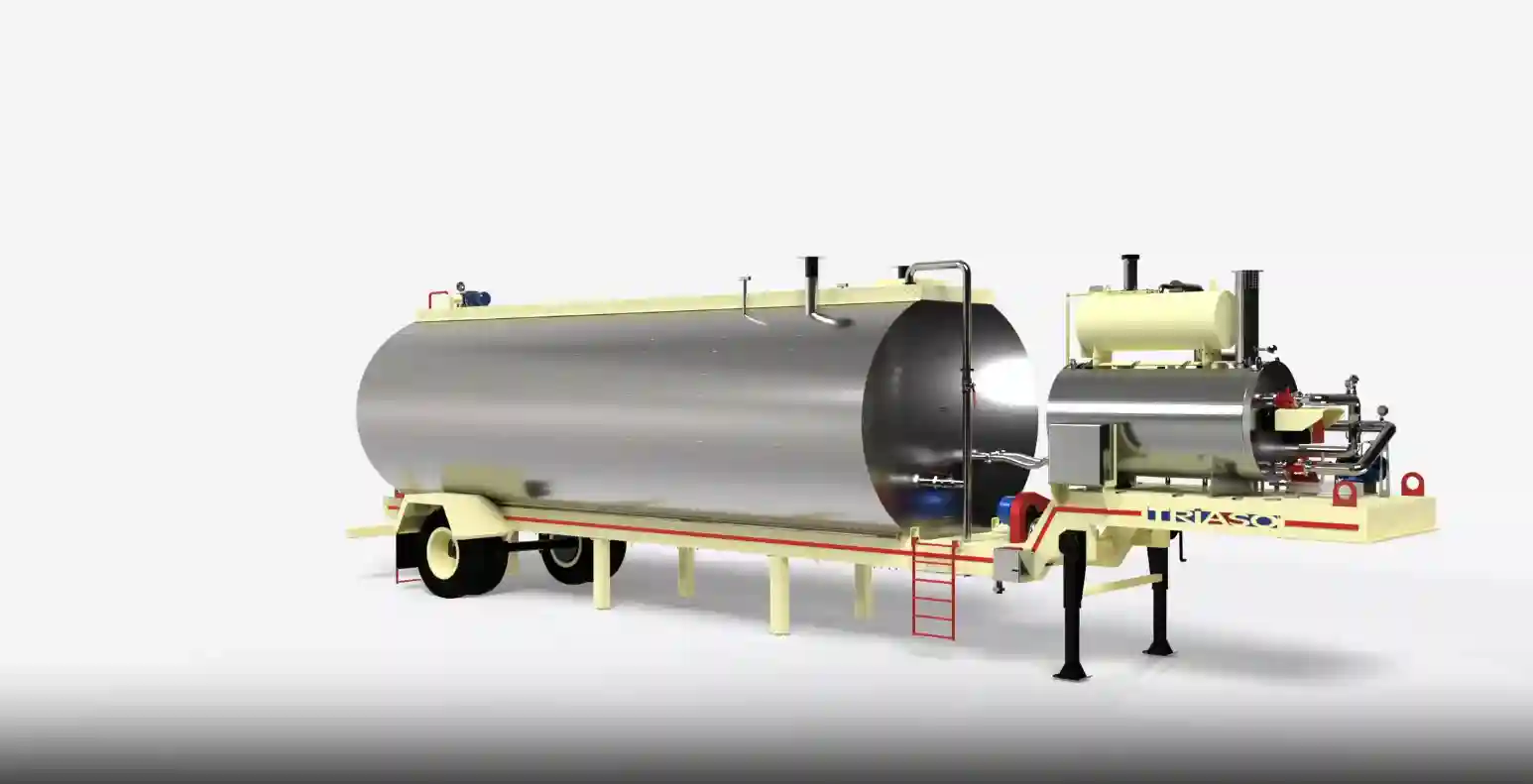

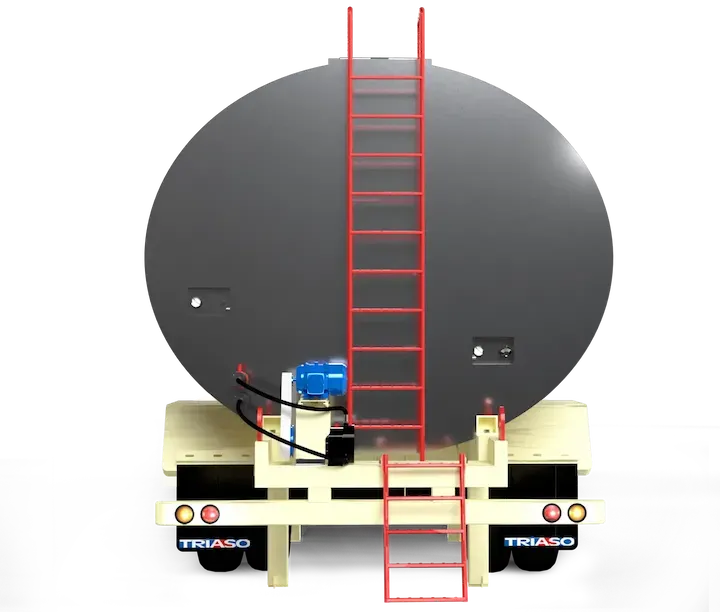

Asphalt Storage Tanks
-
3thousand gallons
Asphalt storage capacity
°C
Maximum achievable temperature
&
2.4million
Btu/hr capacity
Fully Customizable Asphalt Storage Tanks
Heating System
- Direct fire
-
- Heating with LP gas (propane)
- Heating with diesel
- Oil heater
Exterior
- OSHA-compliant railings
- Aesthetic side panels
- On legs or on wheels
Incorporators and agitators
- Rubber incorporators
- Incorporators for all types of polymers
- Agitators for any application
General System
- Vapor condensers
- Manual valves
- With submersible pump
- Computerized control system
From 10 or 20 tons
TRIASO®

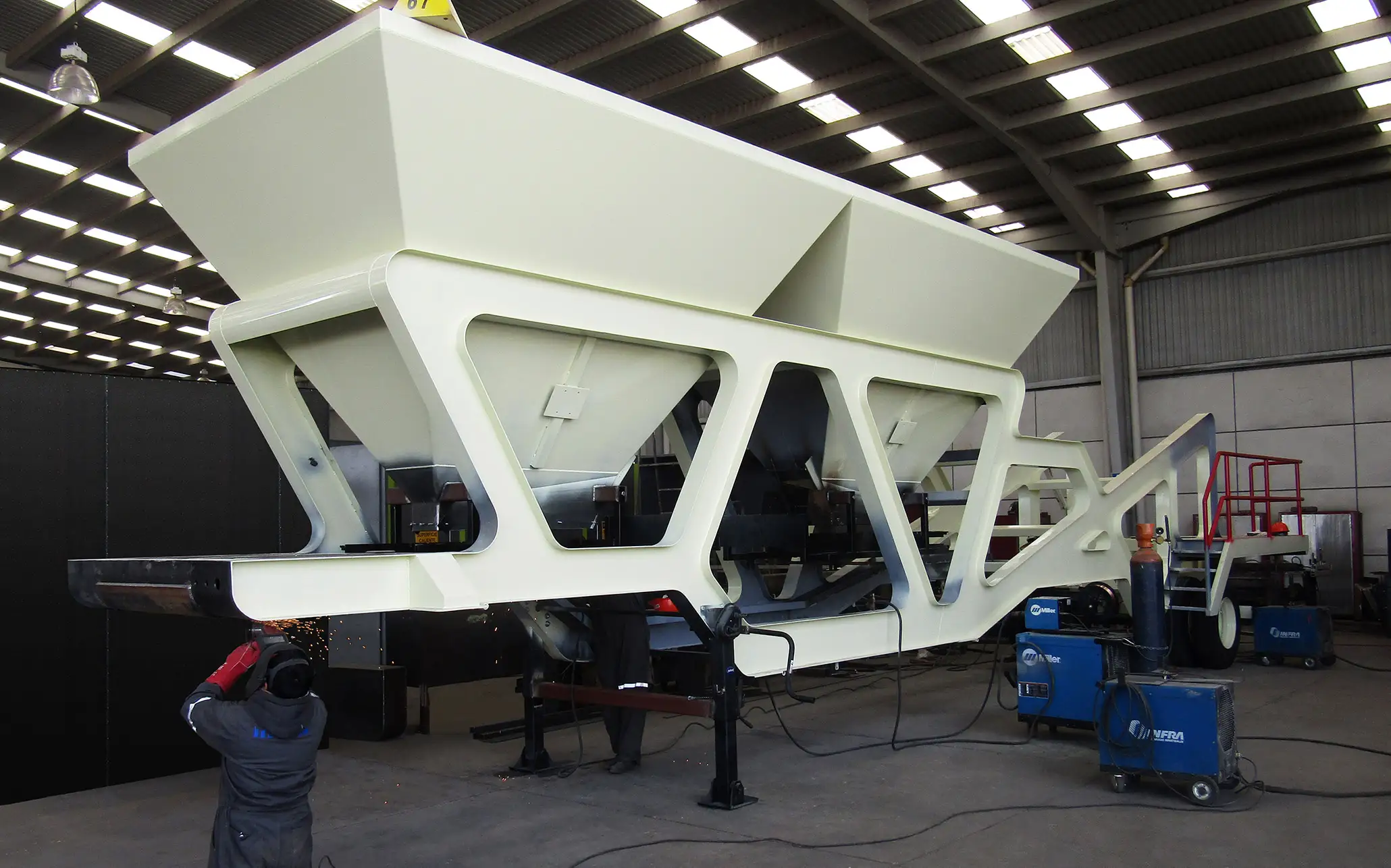

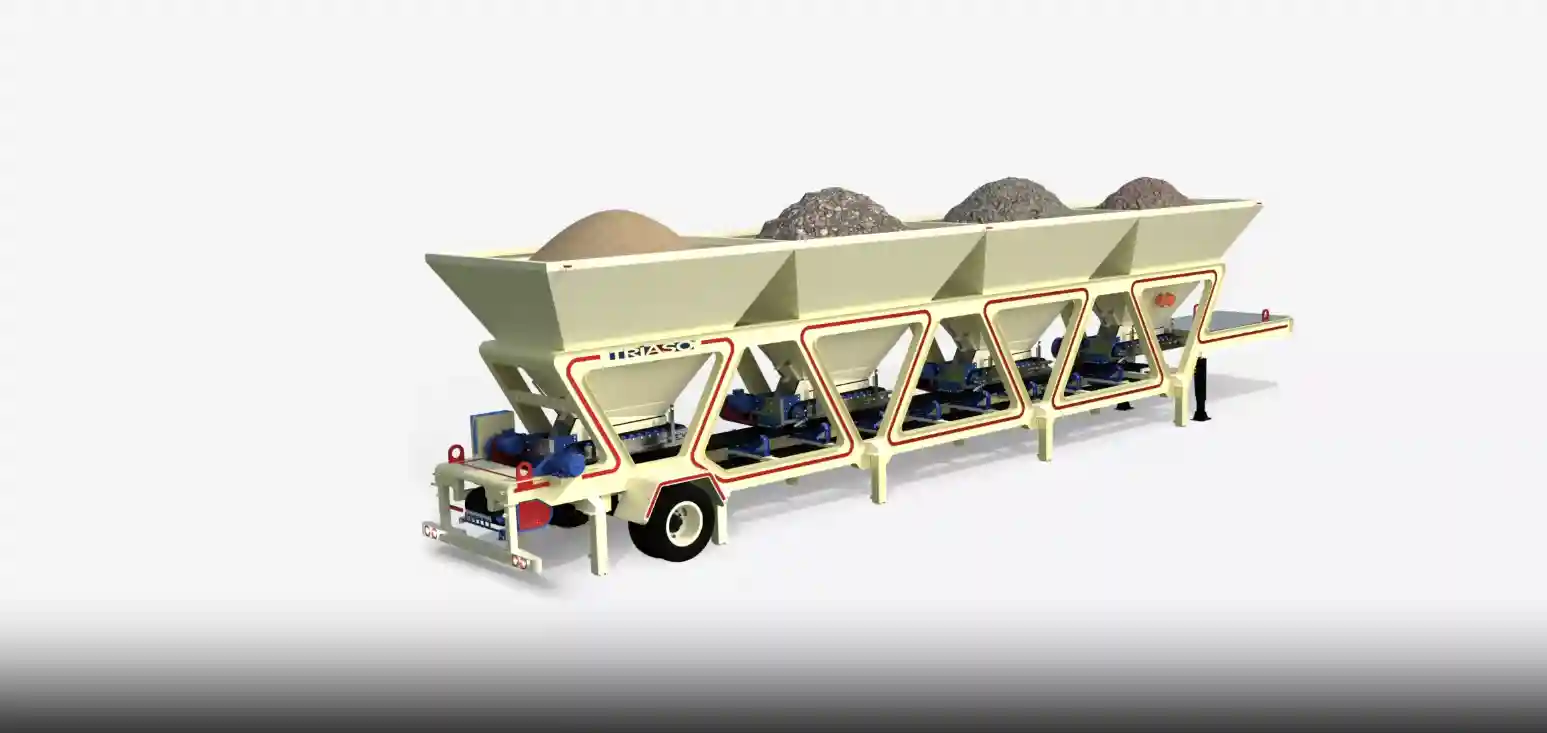

BIN UNITS
High-quality equipment built for durability and efficient material handling. With reinforced steel structures and advanced vibration systems, they ensure optimal performance, minimal wear, and reduced maintenance, while delivering consistent, reliable results in demanding environments.
Portable and relocatable systems designed to adapt to any site, anytime

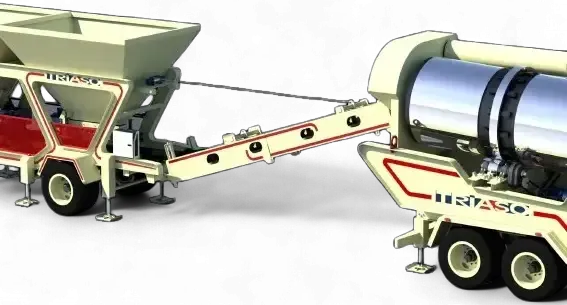

Seamless Integration with
Other Systems
Triaso® asphalt plants are designed to integrate seamlessly with bins, conveyors, asphalt tanks, etc. This enables synchronized operations and a consistent flow of hot-mix across your processing system.

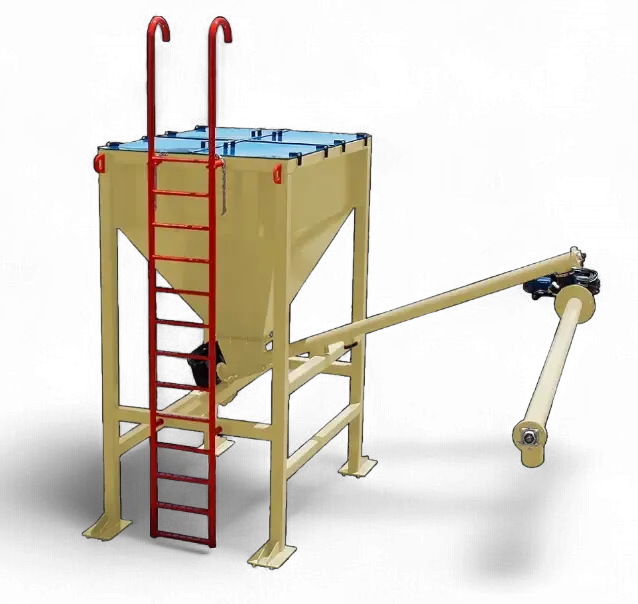

Powder Additives Feeders
Triaso® Powder Additives Feeders provide efficient and reliable storage and dispensing of powder-based materials. Designed for easy integration with your existing systems, they ensure consistent flow and precise dosing of additives, improving overall production efficiency with minimal maintenance.
Optimized for Efficiency and Safety
Triaso® Bin Units are engineered for both efficiency and safety. Their design minimizes the risk of material spillage and buildup, ensuring a cleaner and safer work environment. Easy-to-operate discharge systems and strategically positioned access points allow maintenance and material loading to be performed safely and efficiently, reducing downtime and reinforcing workplace safety standards.
Efficient Bulk Storage
Triaso® Bin Units provide an efficient and organized solution for storing bulk materials, ensuring quick and easy access for loading and transfer. Their large capacities make them ideal for aggregates, recycled materials, and other bulk substances. In asphalt plants, they optimize material handling, reduce storage space requirements, and maintain high operational efficiency.

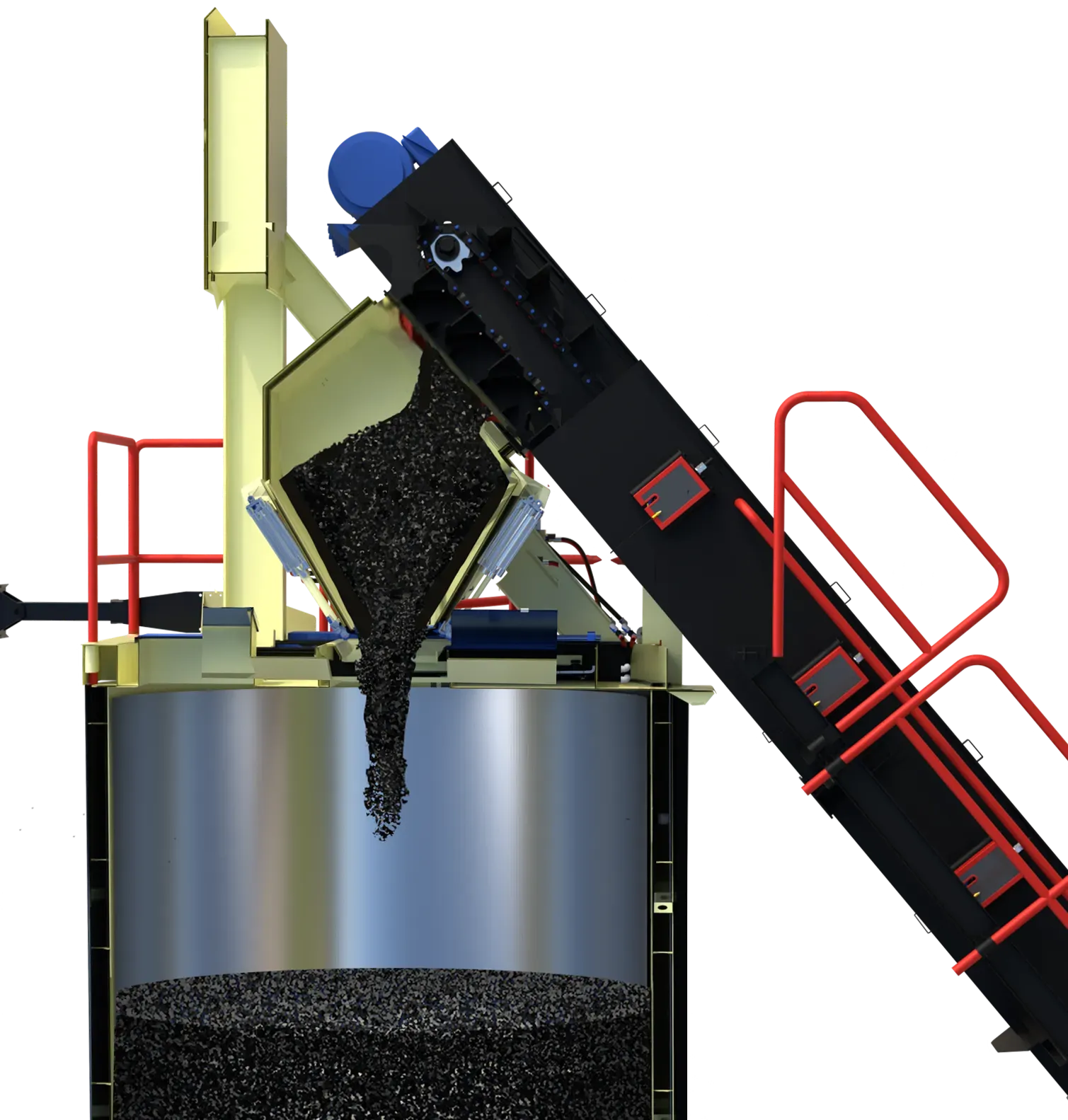

HOT-MIX STORAGE SILOS
Triaso® hot-mix storage silos are engineered to optimize the storage, handling and delivery of hot-mix, ensuring top-quality performance while meeting the demands of modern construction projects. Designed for durability and efficiency, these silos maintain the temperature and integrity of the mix for up to 72 hours.
50-200
Tons
Range of hot-mix storage capacity
10
mins
Set-up time
72
hours
Preservation quality

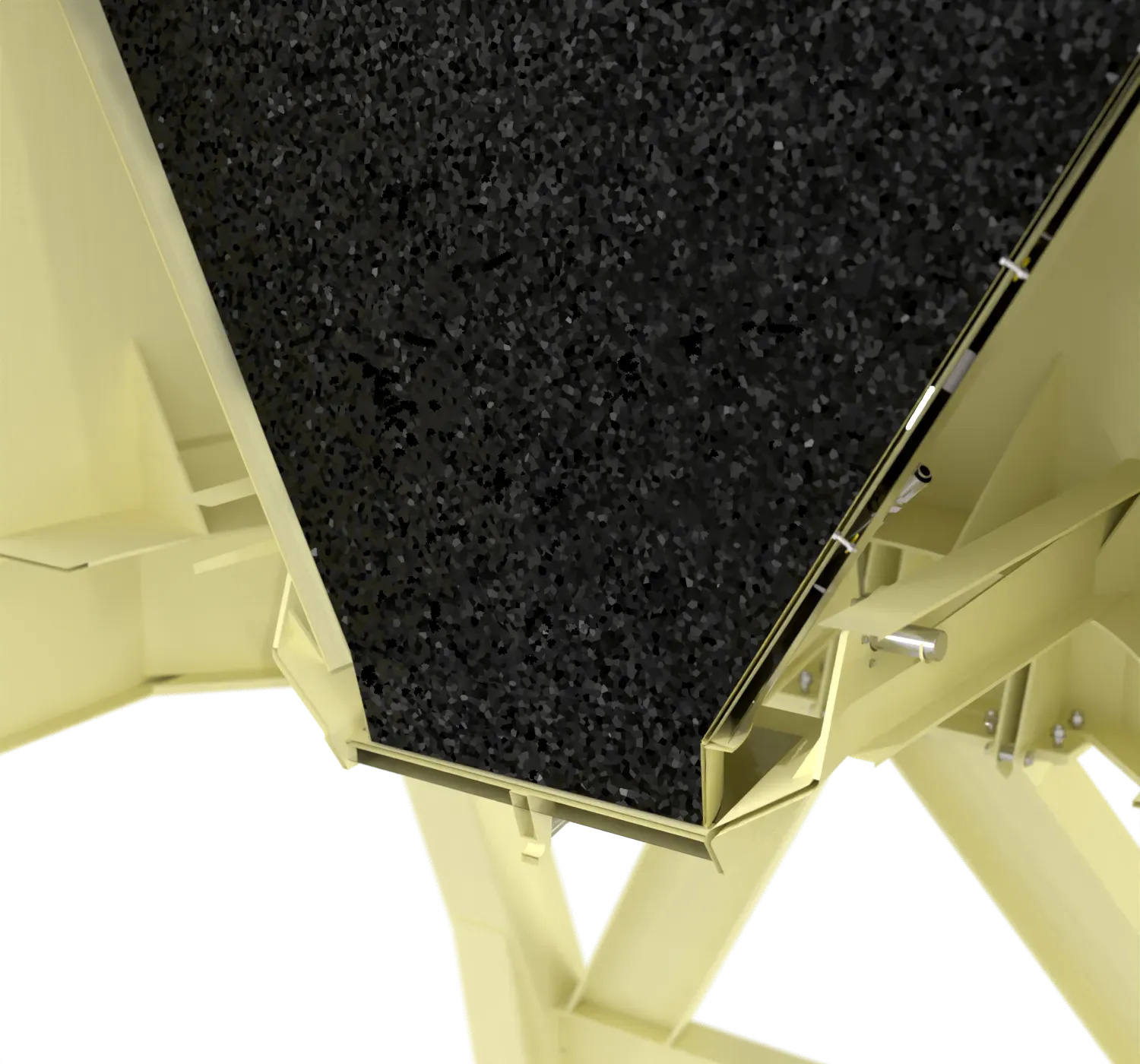

Sealed from Top to Bottom
Even distribution without segregation

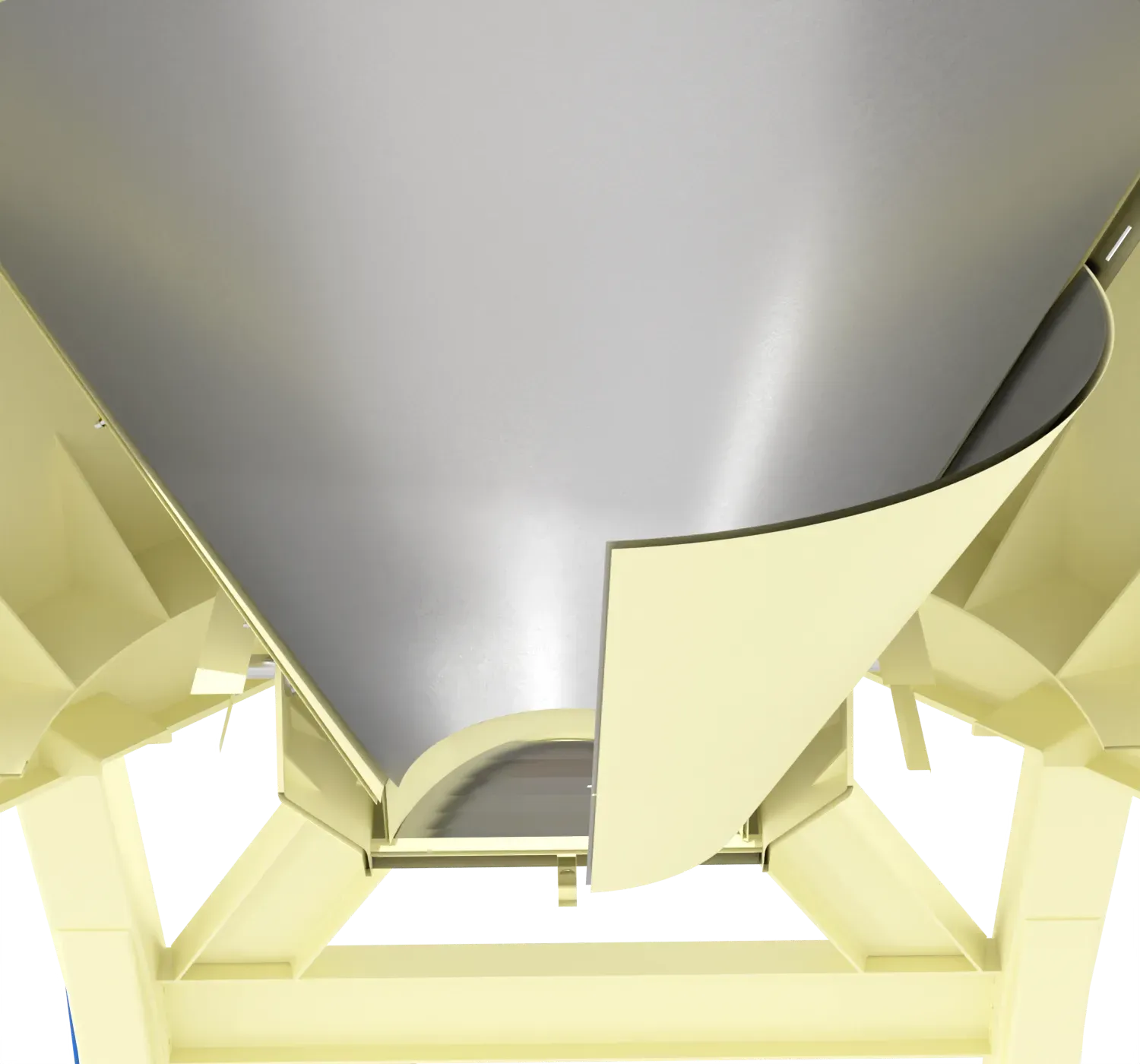

Silo cone

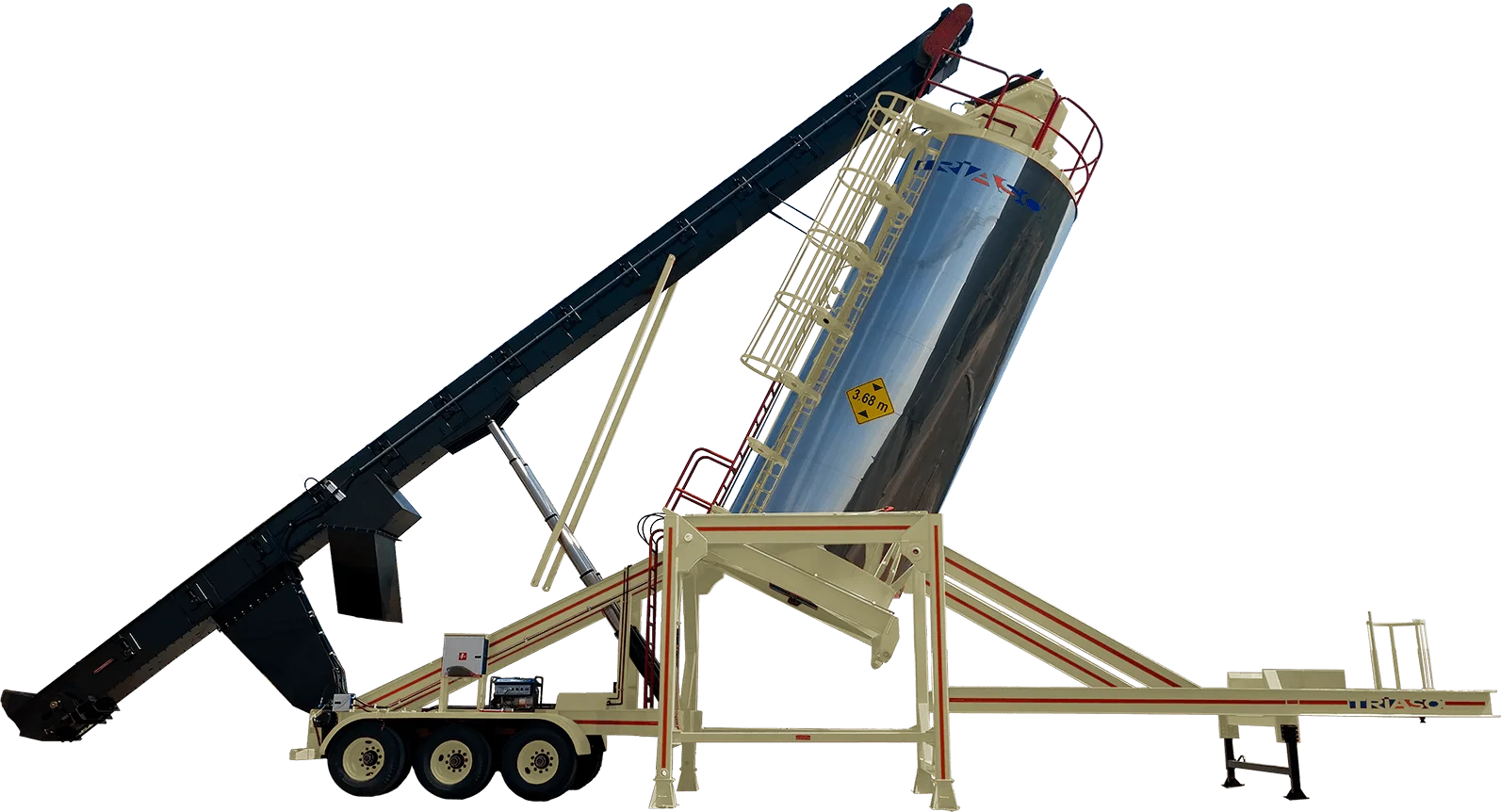

Self-erecting silo

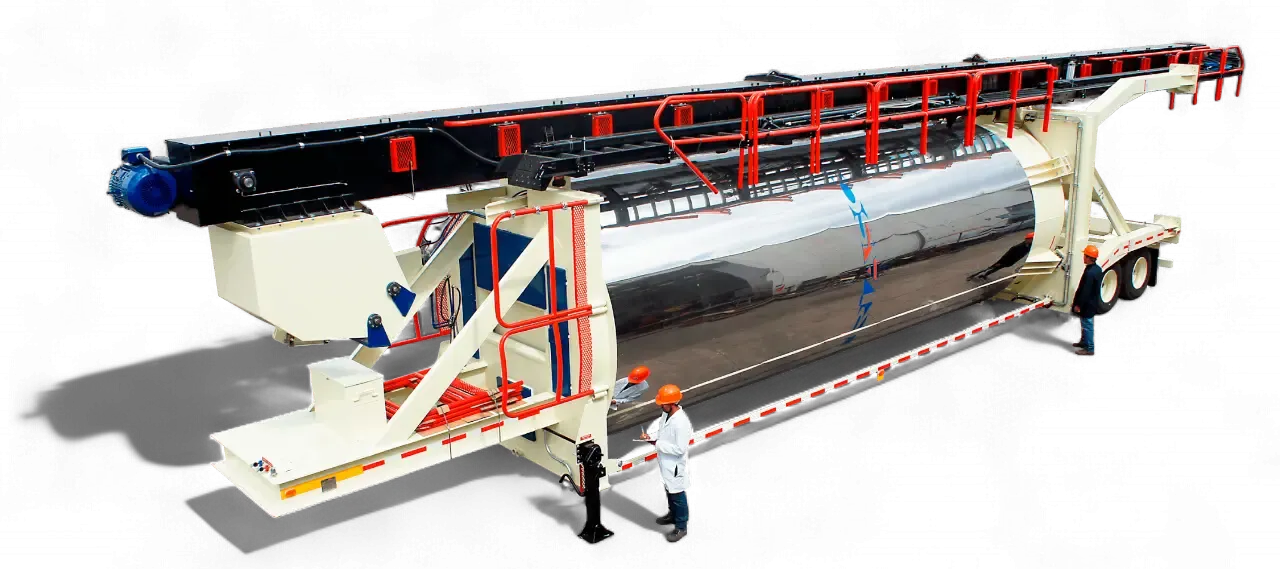

STATIONARY SILO
Telescopic hydraulic cylinders for lifting.
Lifting time of 10 minutes
Vertical and horizontal positioning
With support structure, high enough to accommodate dump trucks
Gate with pneumatic system to release the hot mix to the trucks
Does not include compressor and air tank, it uses the air system from the asphalt plant.
No cranes required for installation
The most versatile and mobile silo on the market.
Spare parts available 24/7
We know how critical it is to keep your equipment running. That’s why our team is always available to provide immediate assistance and deliver any spare parts you need.
Learn More

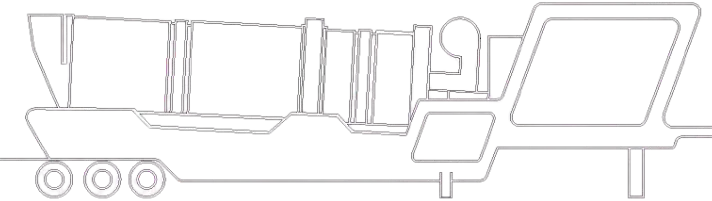

Some Tips for Buying an
Asphalt Plant
Purchasing an asphalt plant is a significant investment and serves as the foundation of an asphalt mix production business. Buy wisely.
