DRUM MIXERS

Triaso® drum mixers are engineered for continuous and efficient hot-mix production, combining drying and mixing in a single integrated process. Built for durability and consistent performance, they ensure precise heat transfer and thorough blending of materials, producing a uniform, high performance hot-mix. With heavy-duty construction and low-maintenance components, the drum mixers are ideal for both relocatable plants and mobile applications, ensuring dependable operation in demanding environments.

Triaso Drum Mix

Flights

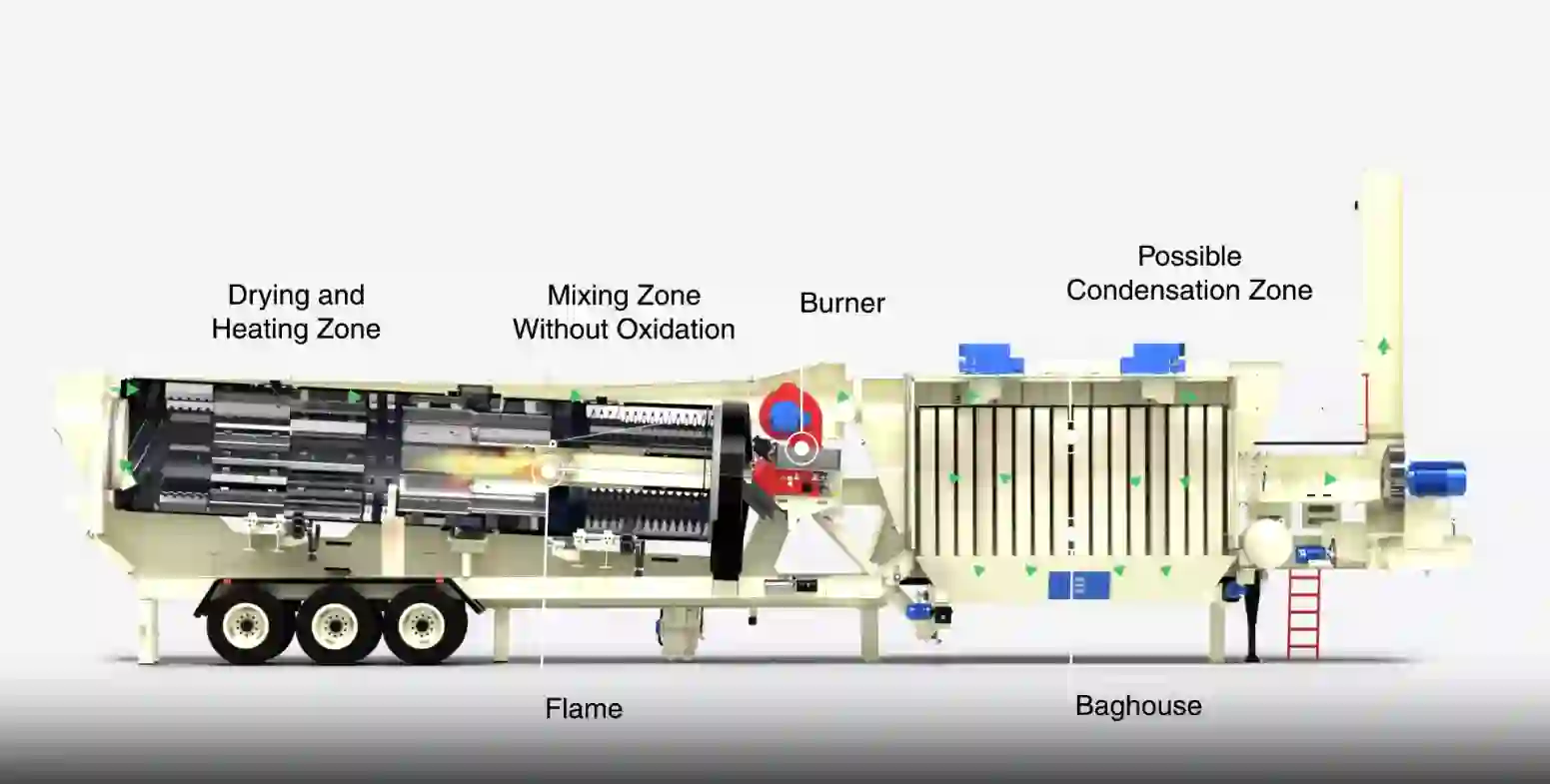

The Triaso drum mixer uses a counterflow design that enhances both drying and mixing efficiency. Its removable flight system optimizes the process, and with a VFD speed control, it achieves more efficient fuel usage and lower stack temperatures. This results in reduced operating costs and a smaller environmental footprint, all while maintaining maximum performance with minimal energy consumption.

Inlet Flight

Pusher Flight

Drying Flight

RAP Flight

Radiation Flight

Mixing Flight

The One and Always

Engineered for Demanding Producers. Built for Performance.

At Triaso, we know that no two asphalt operations are alike. That’s why our plants are precision-engineered to match each producer’s unique requirements. From heavy-duty construction designed for continuous operation to configurations that improve efficiency and safety, every component serves a defined purpose.

Precision where it matters.

Strength that lasts.

Flexibility when it counts.

That’s the Triaso promise.

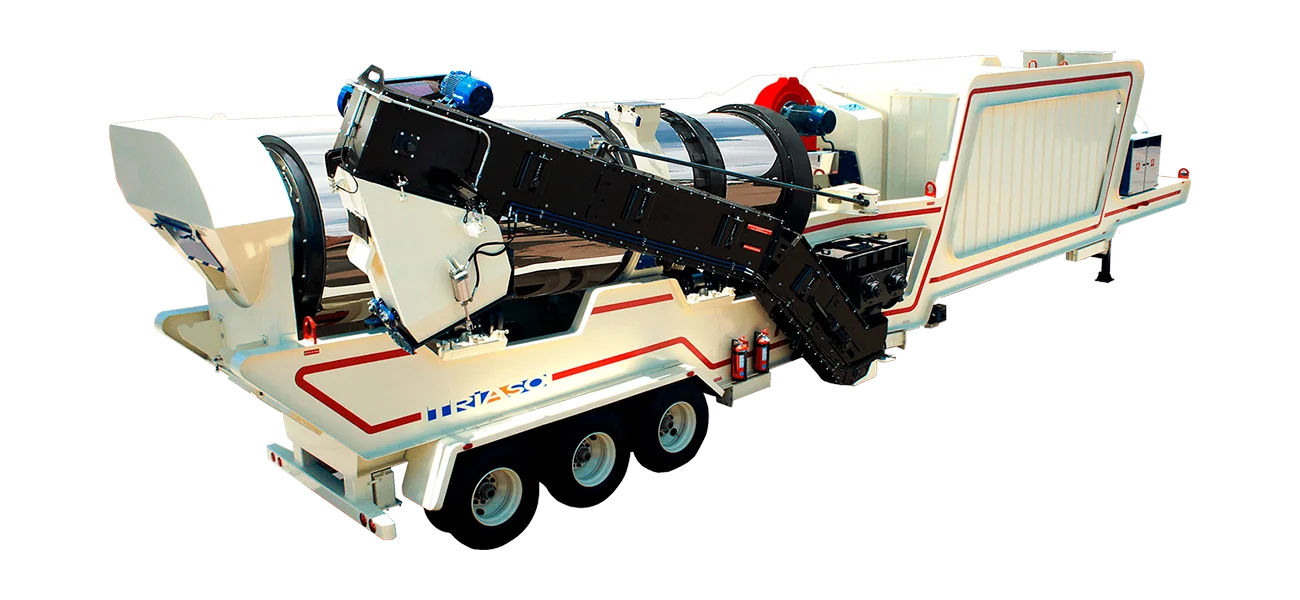

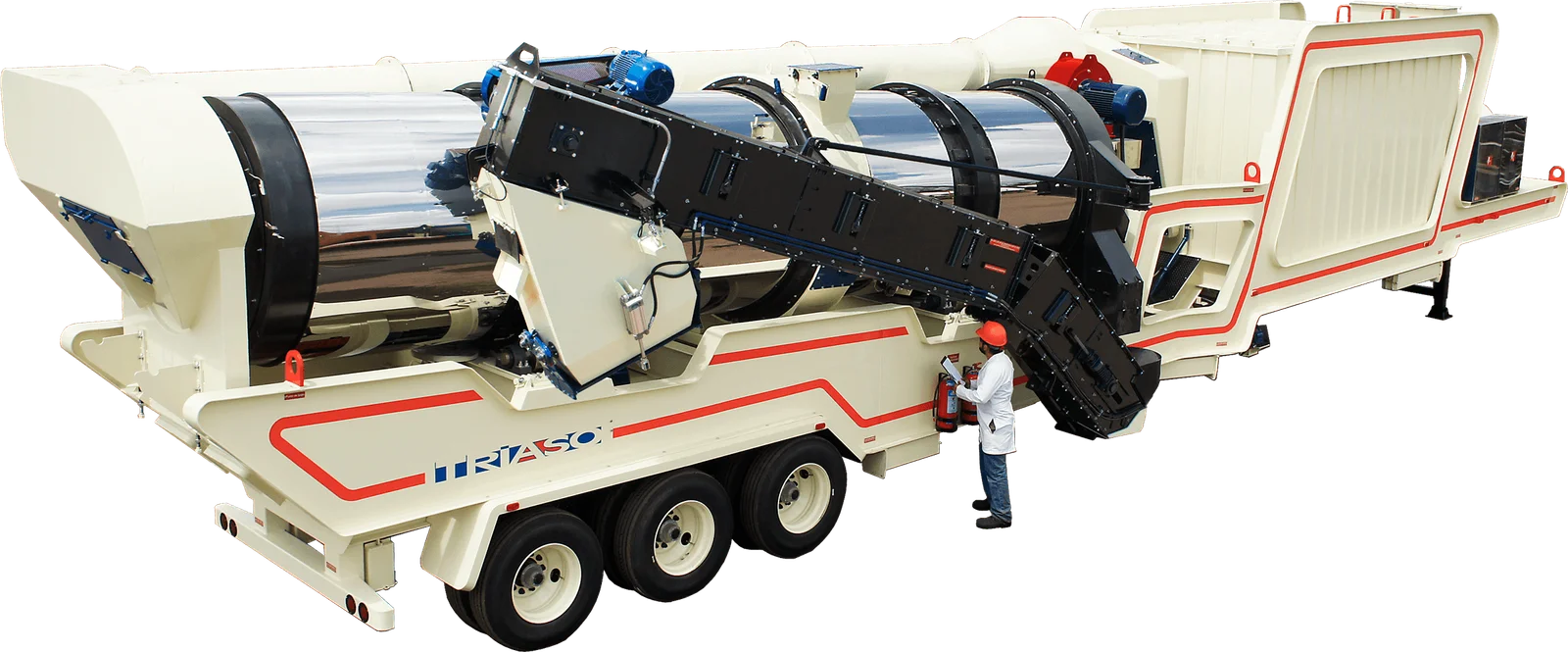

Retractable Drag Slat for Efficient Transport and Operation

The vertical drag slat features a retractable configuration that complies with DOT transportation height limits, ensuring safe and legal road transport. Once the drum mixer is installed on-site, the elevator extends to its full operational height, allowing efficient material discharge into trucks with minimal setup time. This smart design improves logistics while maintaining high performance during loading and discharge operations.

Hinged and Integrated

This hinged drag slat is fully assembled on its own chassis, allowing for immediate installation and reducing on-site assembly time. Its structural design is intended to integrate directly with the mix discharge system without the need for additional adjustments.

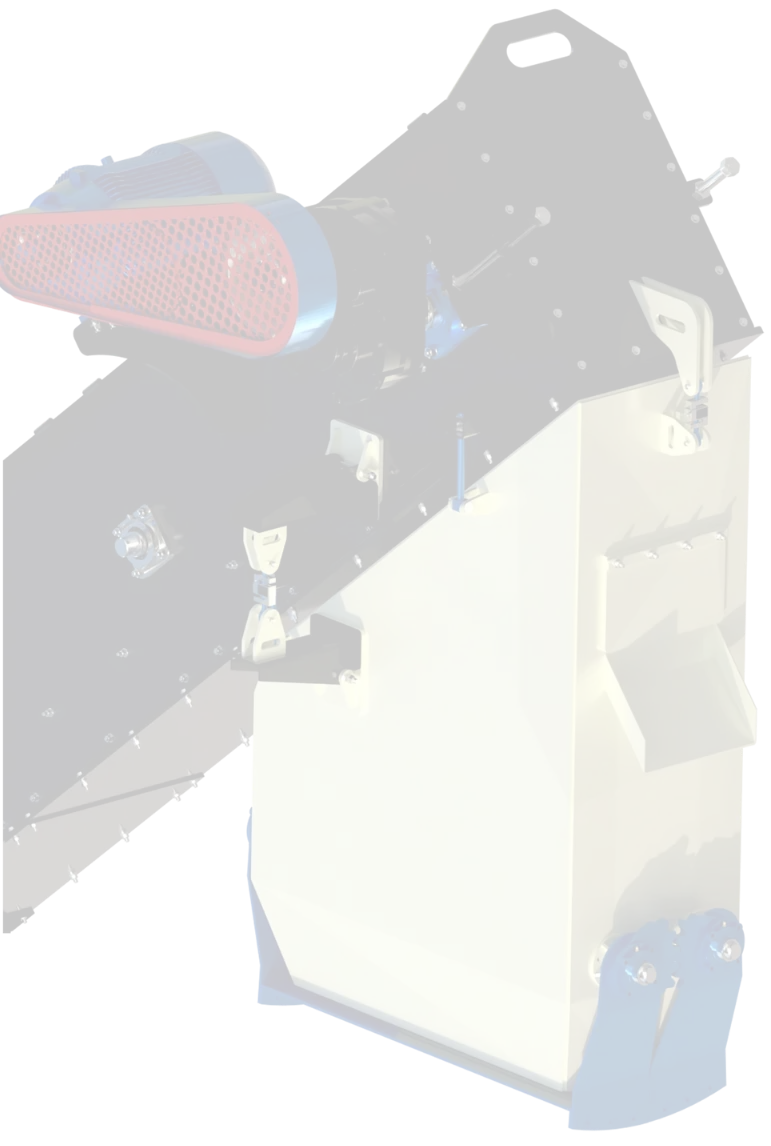

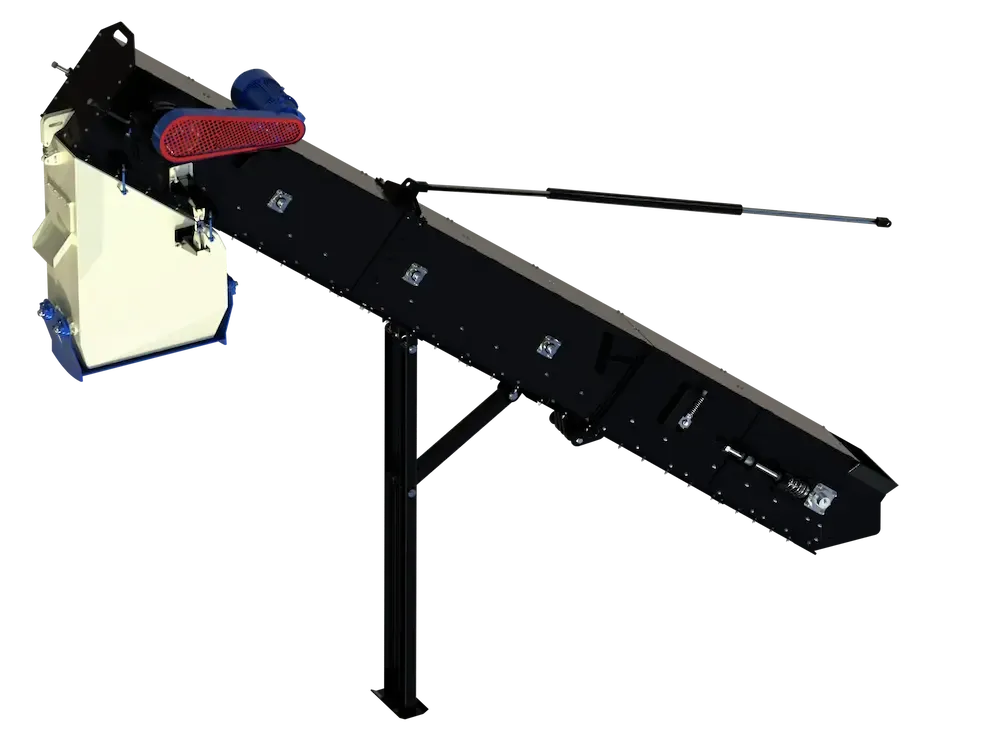

Chain with a 4” pitch

The 4” pitch chain is a key component of the elevator, designed for heavy-duty operation. With a tensile strength of 50,000 lbs (22,700 kg) and floating-type chain guides to prevent jams, ensuring smooth and reliable performance, durability, efficiency, and minimal maintenance.

Self-aligning bearings

Self-aligning bearings in the straight drag slat ensure smooth operation by automatically compensating for misalignment. This reduces wear, extends service life, and improves reliability in heavy-duty applications.

Hinged and Integrated

Chain with a 4” pitch

Self-aligning bearings

It can hold up

0.5 cubic meters

of material.

Automatic opening

controlled by variables such as

time or weight.

Integrated control

in the console centralizes system management.

Pneumatic opening

with a

double-acting jack

Automatic or manual opening

allows operation either manually or automatically

7.5 Hp air compressor
with a 293-liter air tank

supplies air for pneumatic operation

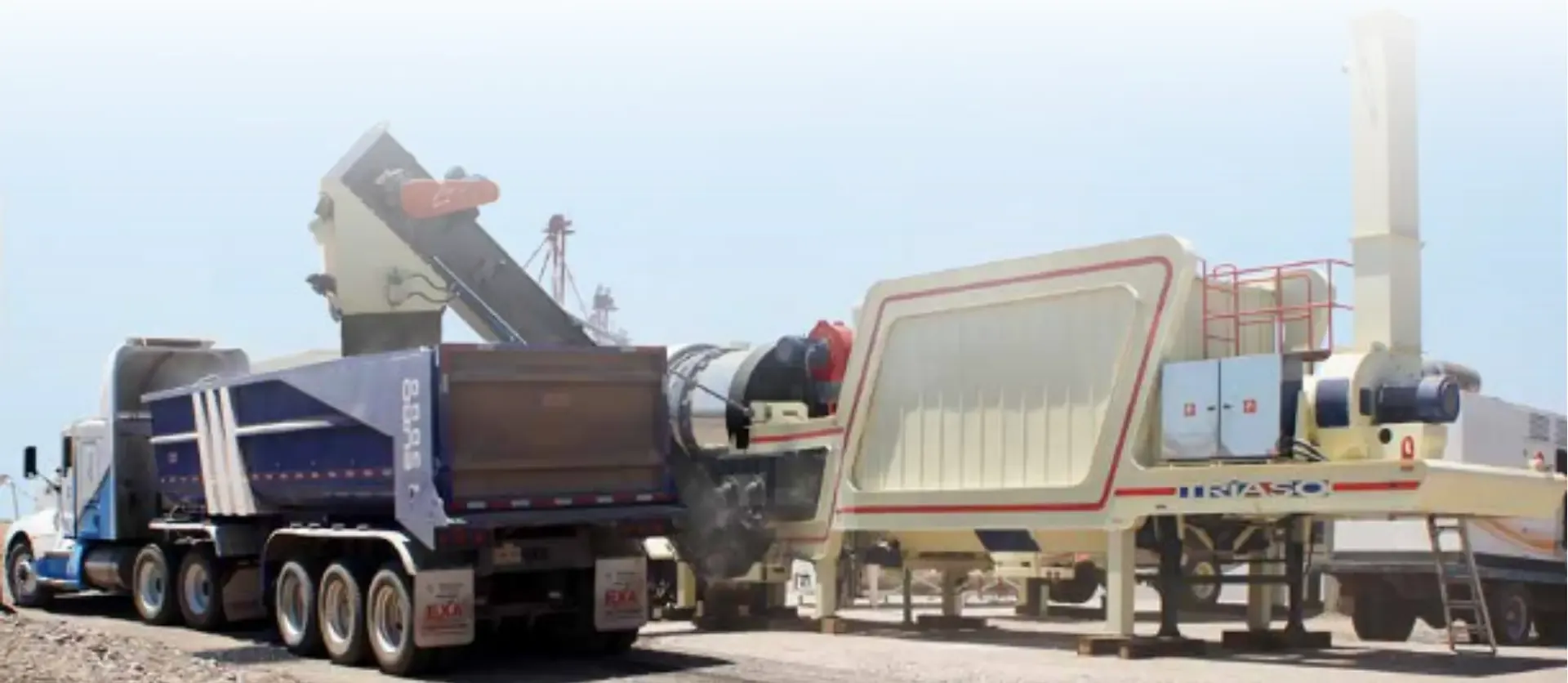

Real-time data monitoring of hot-mix discharge into trucks

With Triaso, Become the Exclusive Provider of Hot Mix
for All Paving Projects in Your Region

With Triaso, Become the Exclusive
Provider of Hot Mix for All
Paving Projects in Your Region

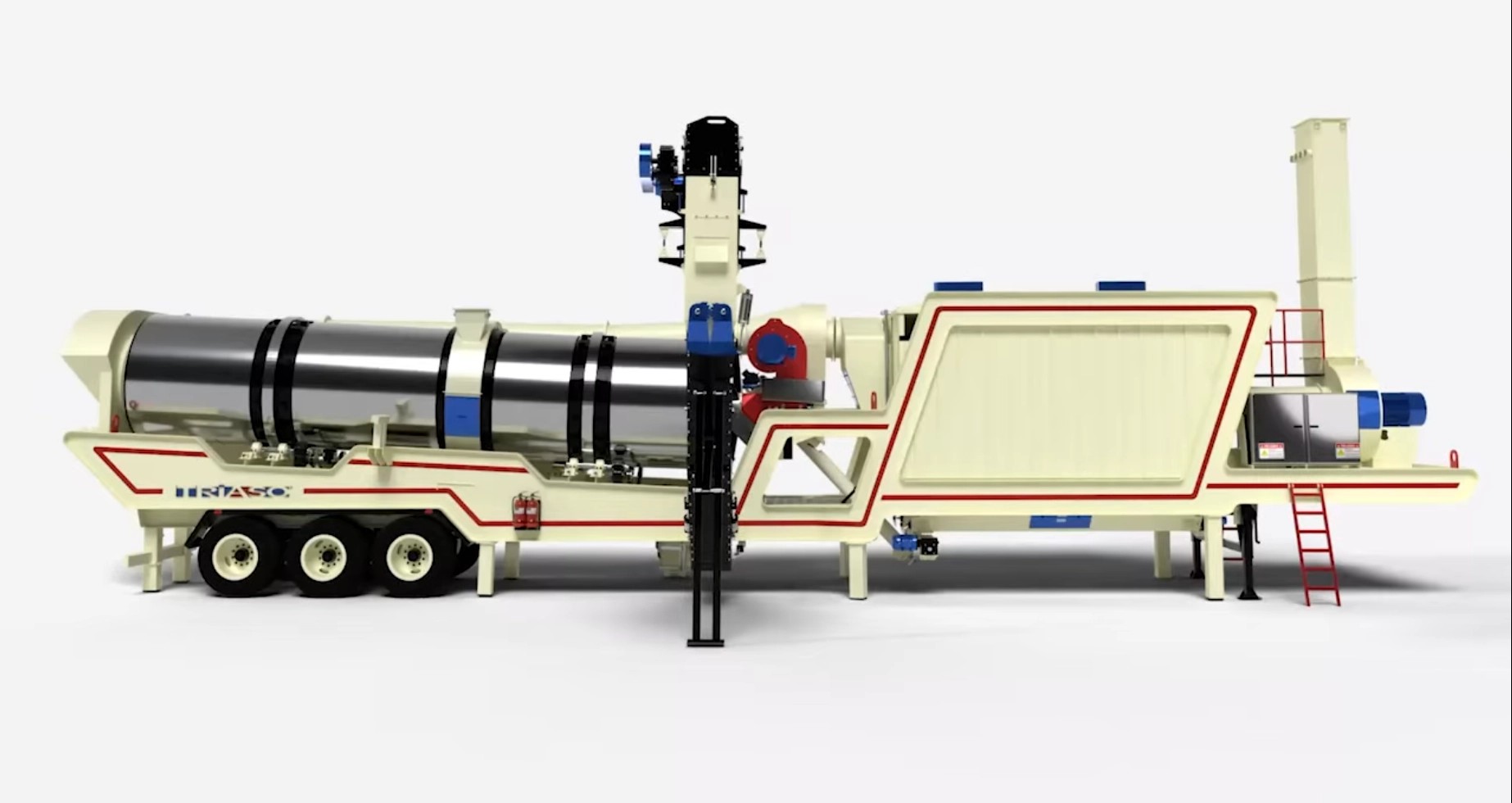

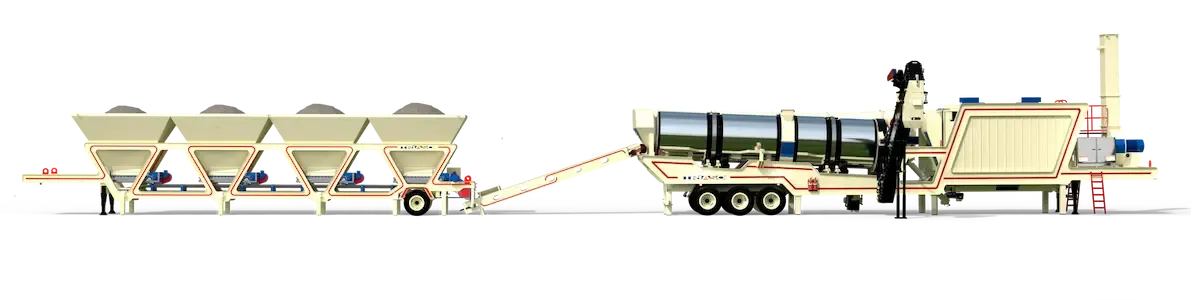

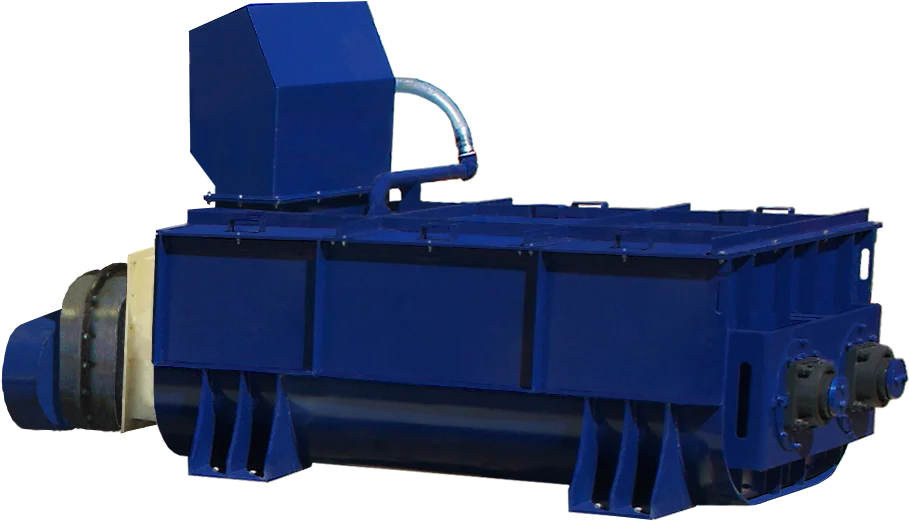

Drum Mixer machine with vibrating mixers

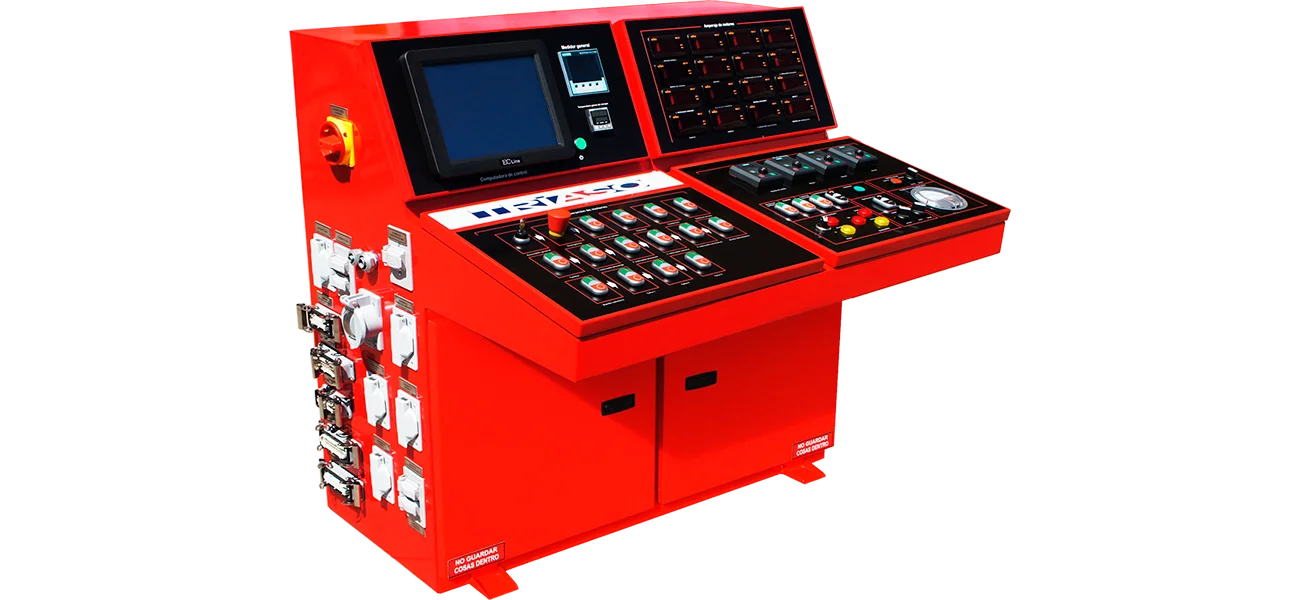

Triaso Control System

Offering a practical and efficient way to manage industrial equipment operations. With advanced monitoring and automation, it simplifies the Asphalt Plant operation and personnel. Control of key processes like temperature, material dosing, and production rates.

Cloud historical reports

Artificial Intelligence

Fewer operators full control

Remote cloud monitoring

Learn More

Triaso Control System on a mobile device

Lower fuel consumption than any other asphalt plant

Our latest burner innovation features an oxygen sensor that automatically regulates excess oxygen to no more than 3%, eliminating the need for manual fuel carburization adjustment when relocating the equipment. Thanks to our self-carburizing system, NOx levels remain even lower.

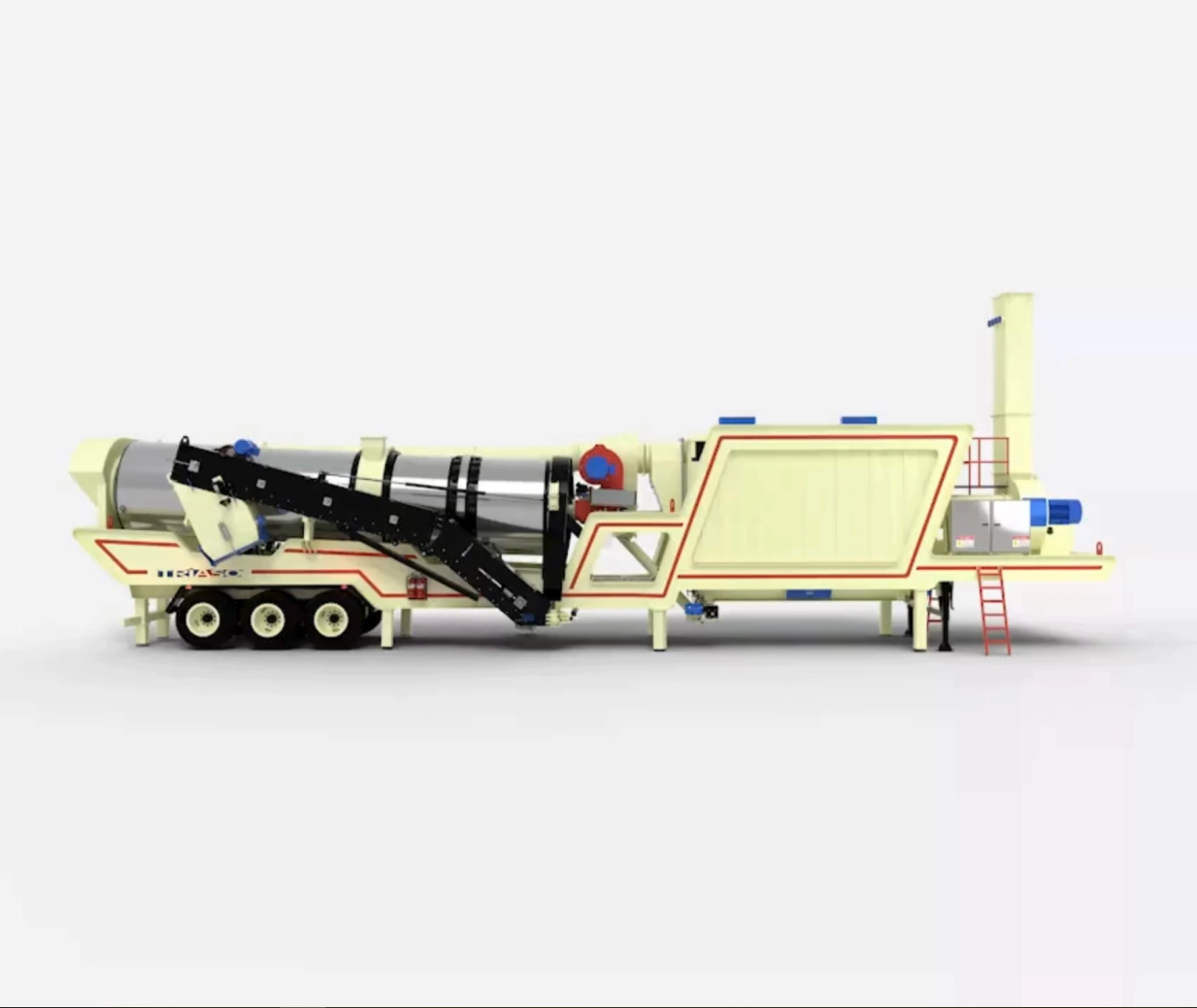

STATIONARY DRUM MIXERS

Durable and easy to transport, the drum mixers are designed for long-term operation, featuring heavy-duty steel supports that eliminate the need for concrete foundations.

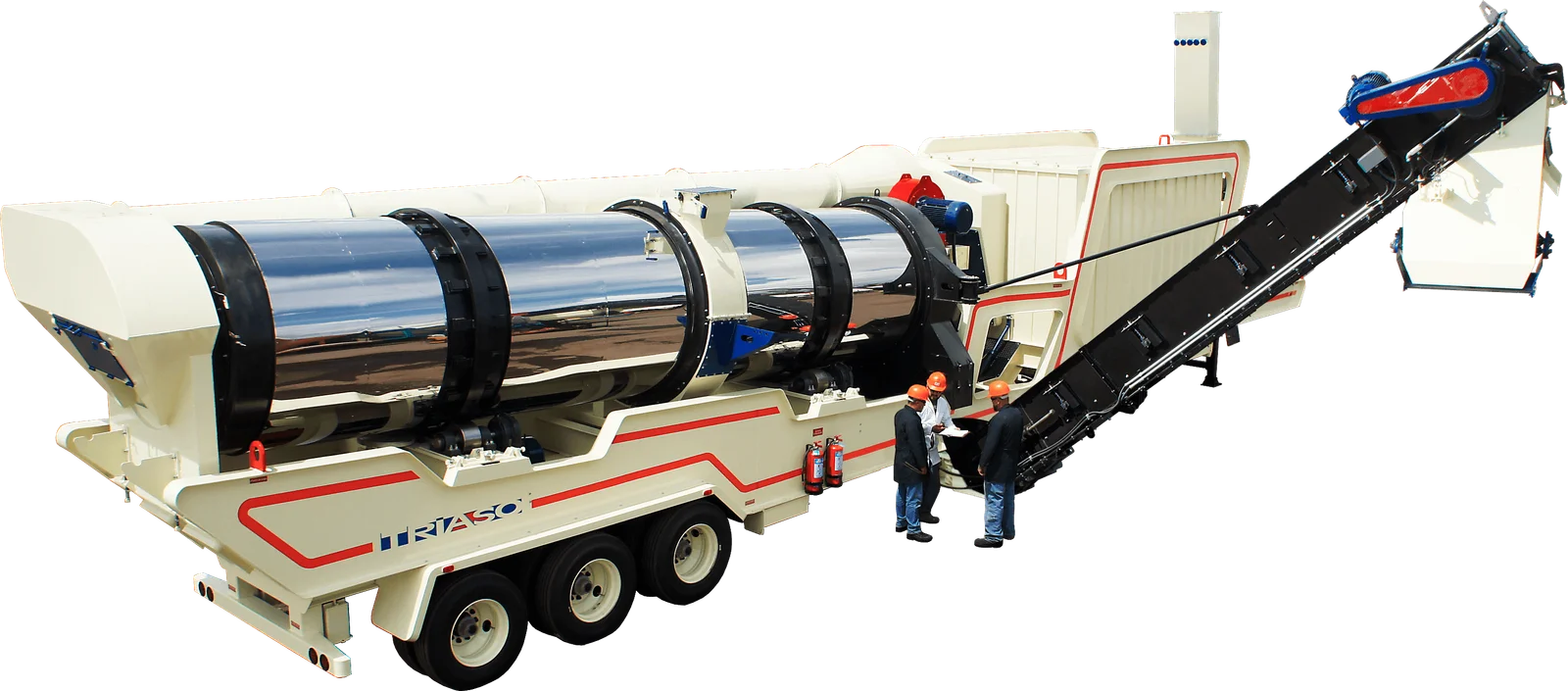

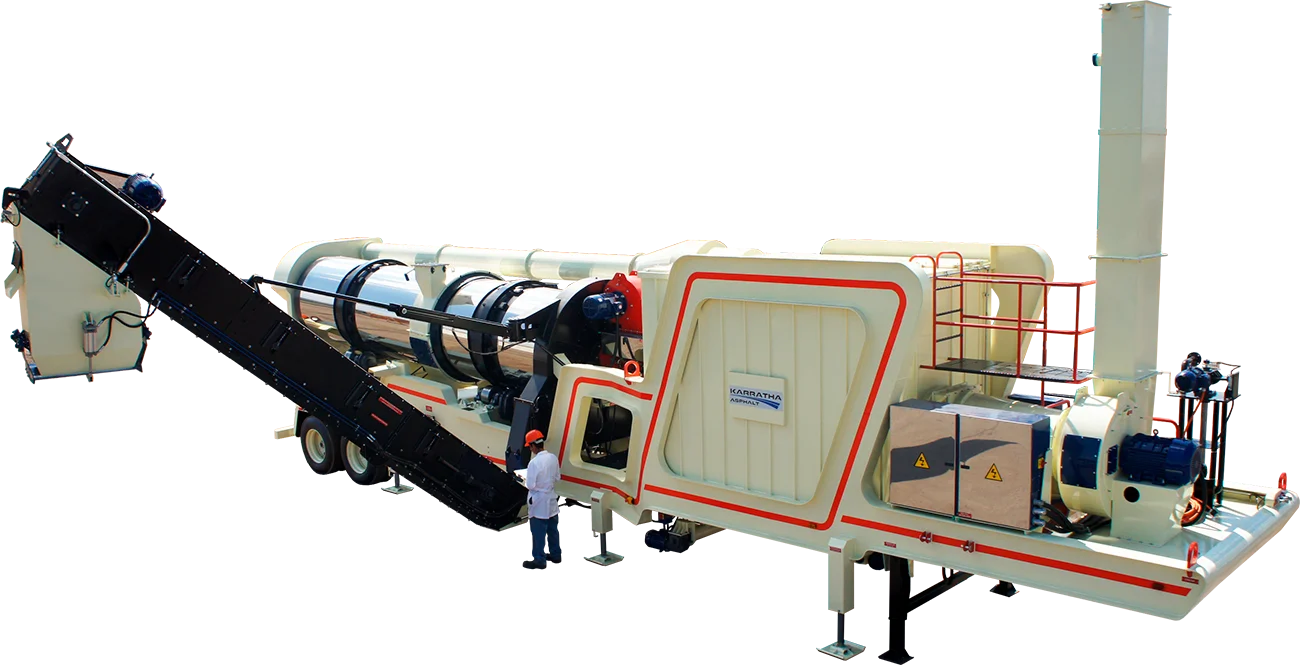

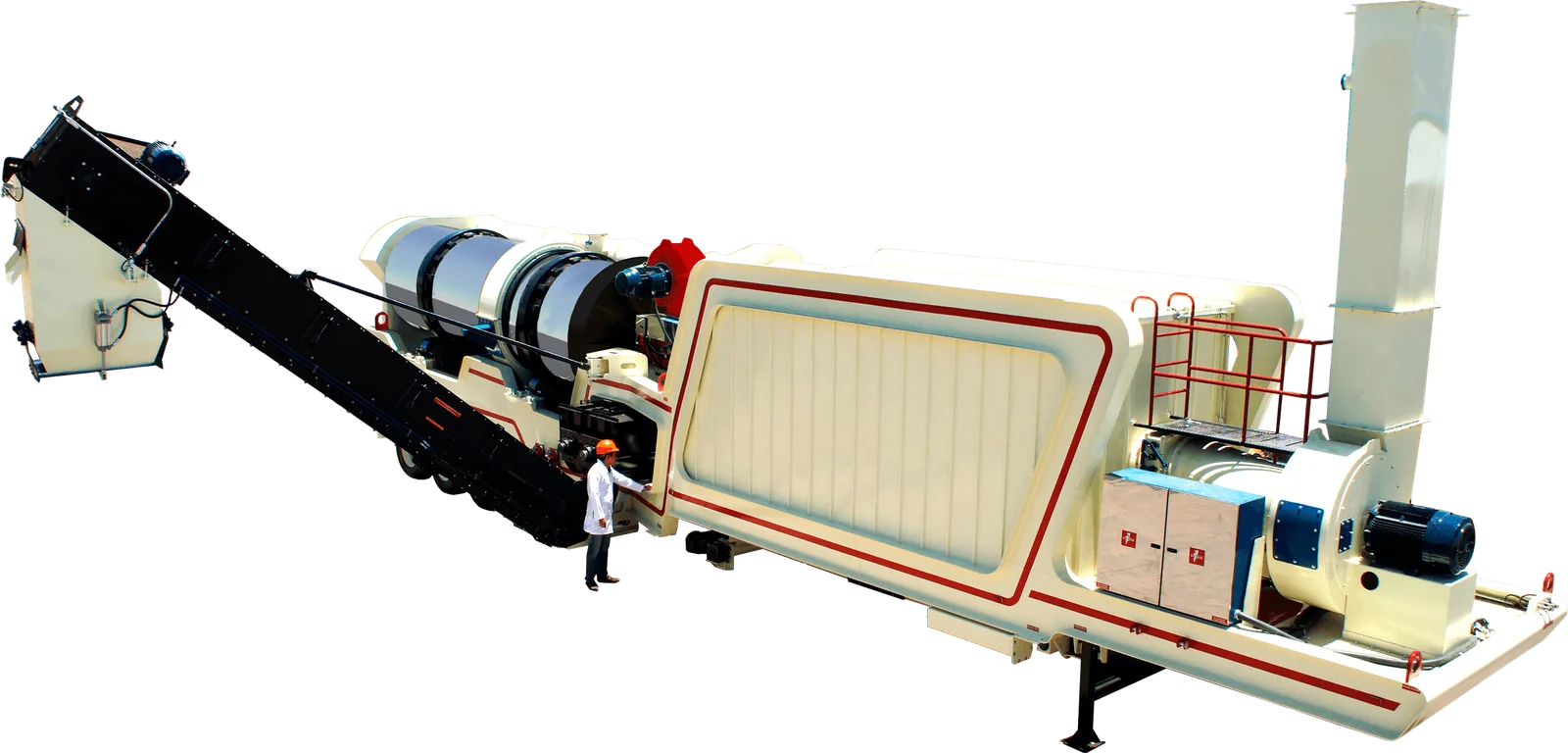

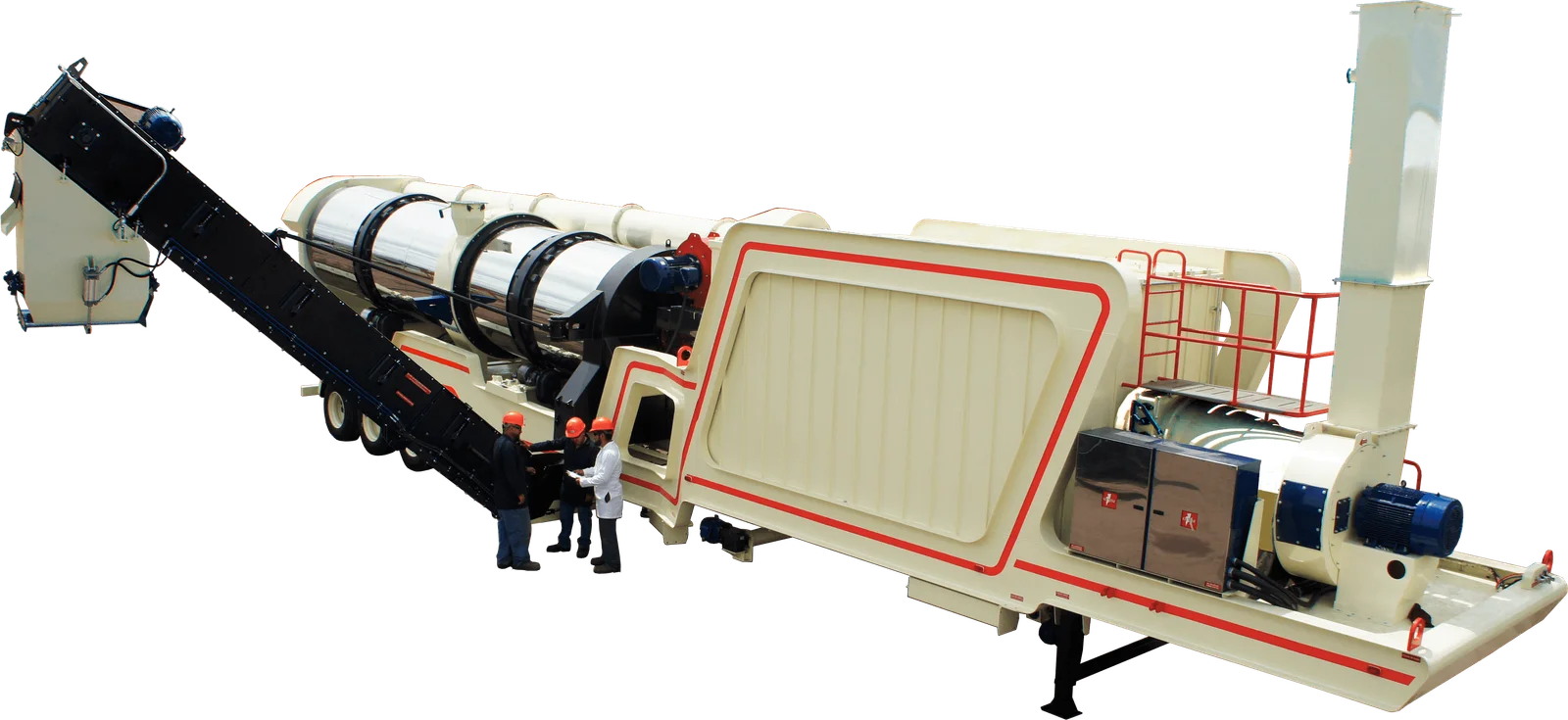

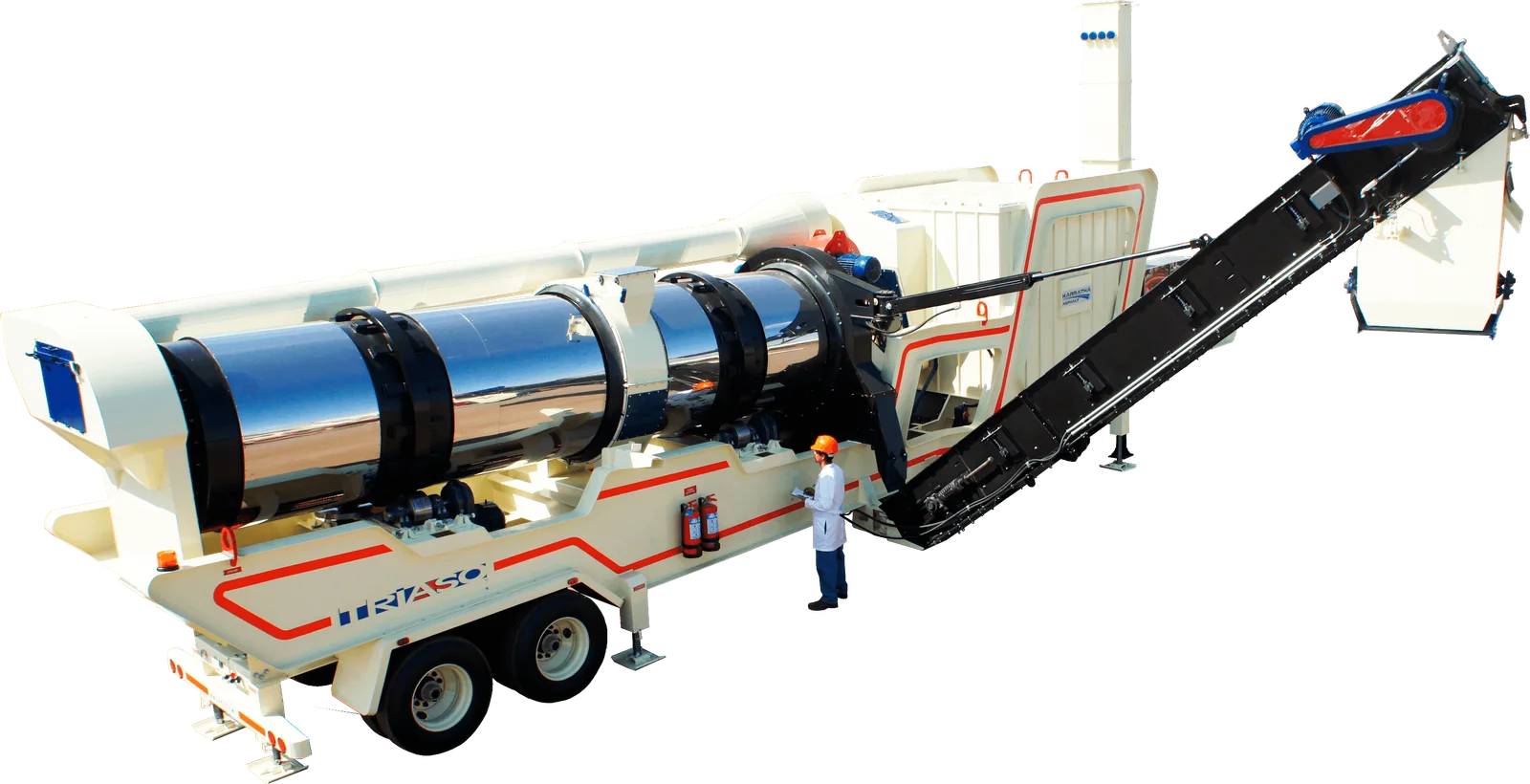

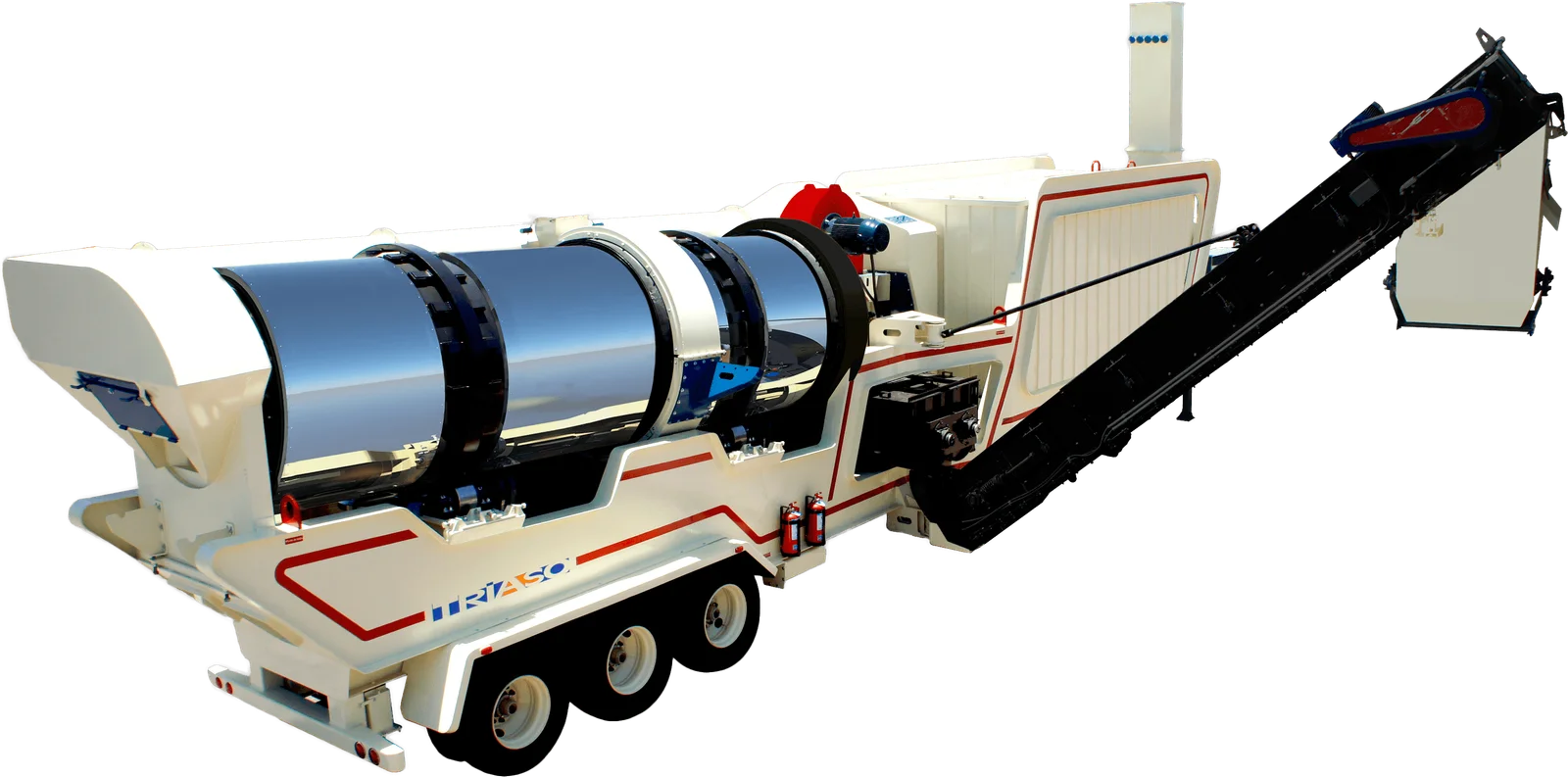

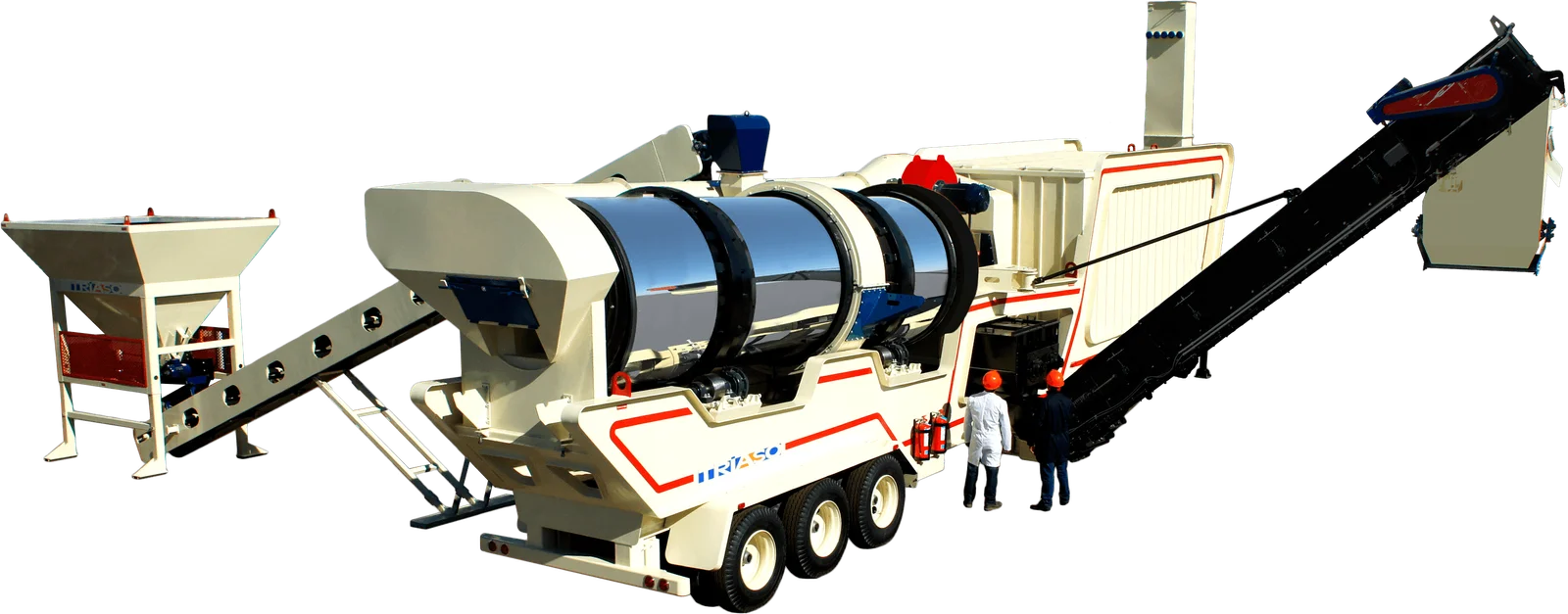

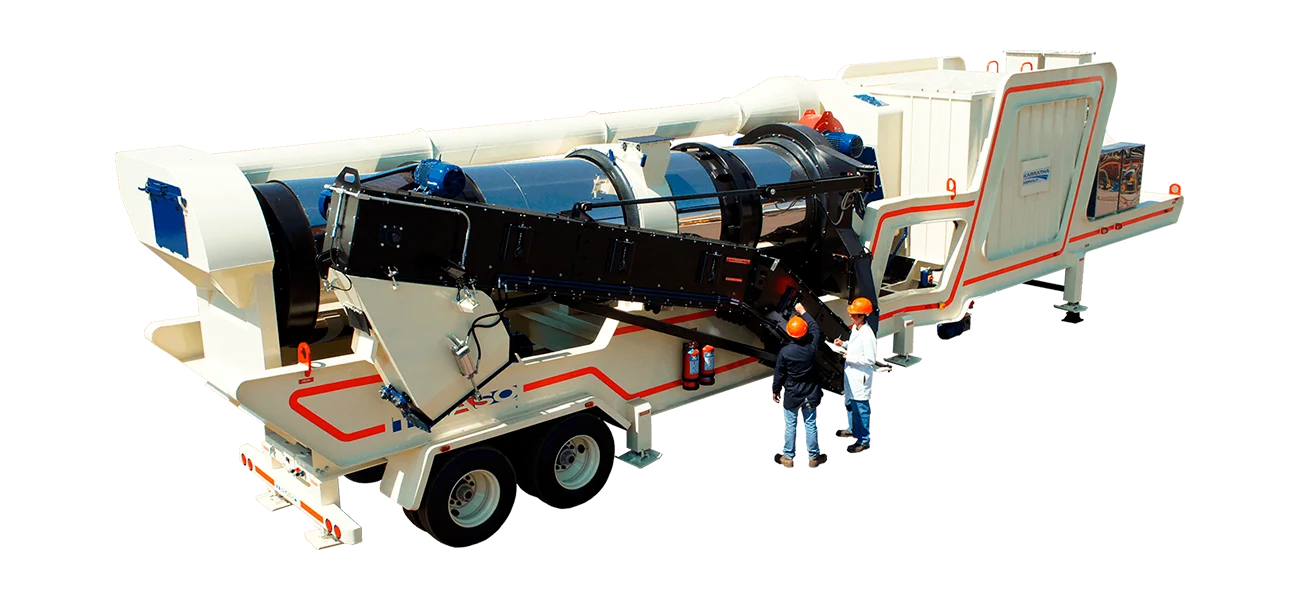

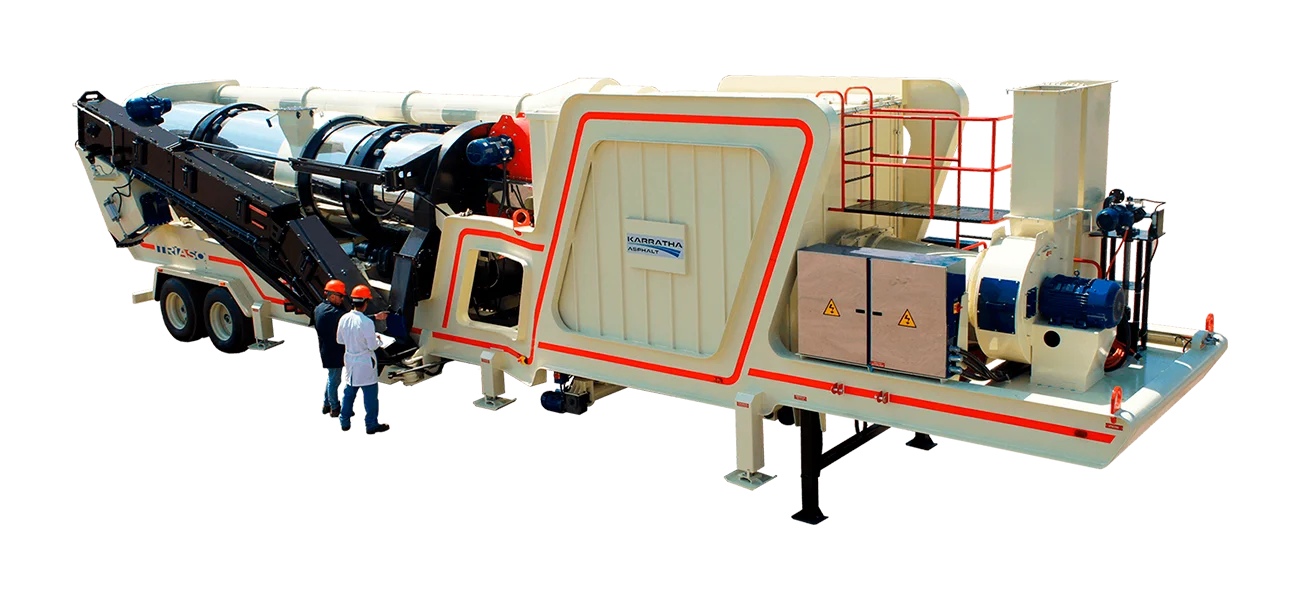

MOBILE DRUM MIXERS

Perfect for remote job sites, these mixers offer quick setup, portability, and high production output—all while keeping operating costs low.

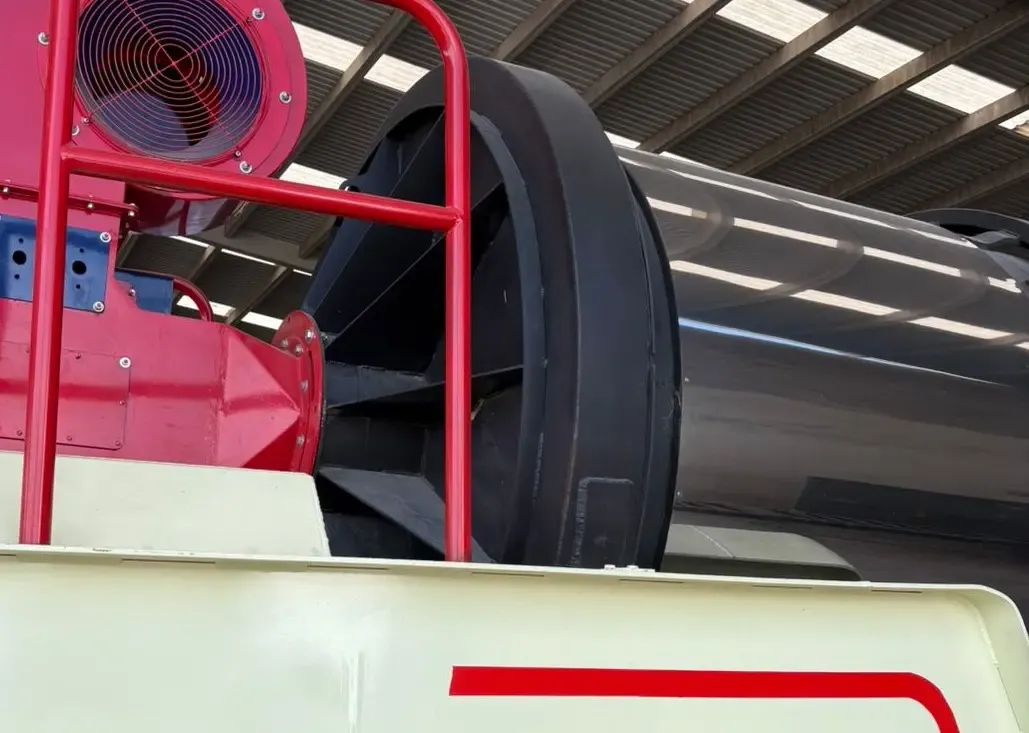

Extra-reinforced front shield

The Triaso® drum is fully sealed at both ends with extra reinforcement to maintain internal temperatures and maximize combustion efficiency. Heavy-duty steel and EPDM rubber seals prevent the entry of cold air, improving fuel economy and ensuring consistent, high-quality asphalt mixes. The entire drum is sealed to prevent the entry of unwanted cold air, maintaining optimal internal temperatures and combustion efficiency. This airtight design includes an extra-reinforced front shield and sealing components made of heavy-duty steel or EPDM rubber. These materials provide long-lasting durability, resist high temperatures, and ensure that no external air disrupts the controlled environment inside the drum, improving fuel efficiency and mix quality.

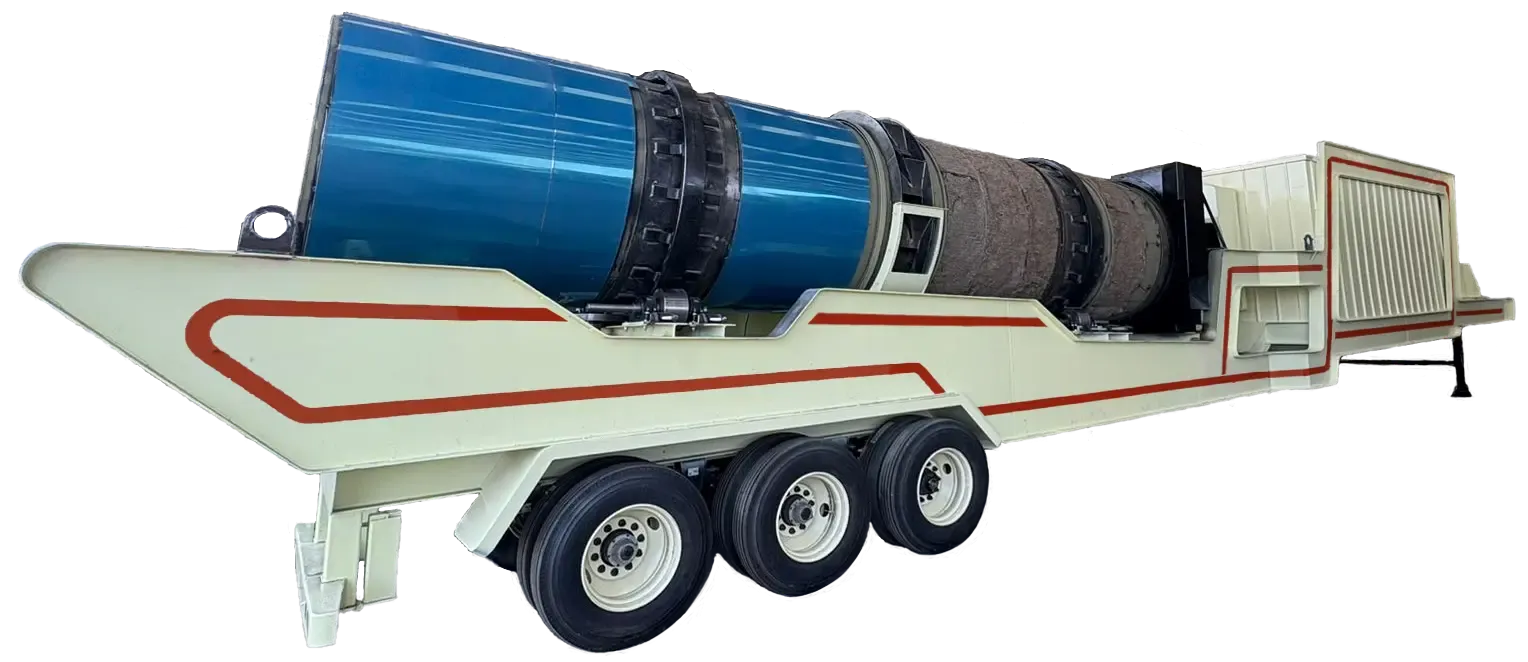

Optimized Insulation Design

The drum mixer is built with high-efficiency mineral wool insulation that maintains consistent internal temperatures throughout the drying and mixing process. This insulation minimizes heat loss, reduces fuel consumption, and ensures the asphalt mix stays at optimal temperature—delivering reliable performance even in demanding weather conditions.

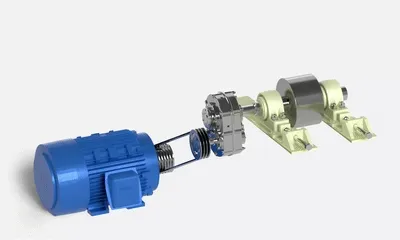

Single-Point Adjustment System

Triaso® equips all its drum mixers with a centralized trunnion adjustment system designed for fast, precise alignment in the field. Each trunnion base includes a fixed central pivot that keeps the drum tire centered during adjustments, eliminating guesswork and preventing lateral drift. With a single-point adjustment mechanism, operators can easily align the drum without needing to reposition multiple components. This system ensures smoother rotation, reduces wear on tires and trunnions, and simplifies maintenance—keeping your plant running efficiently with minimal downtime.

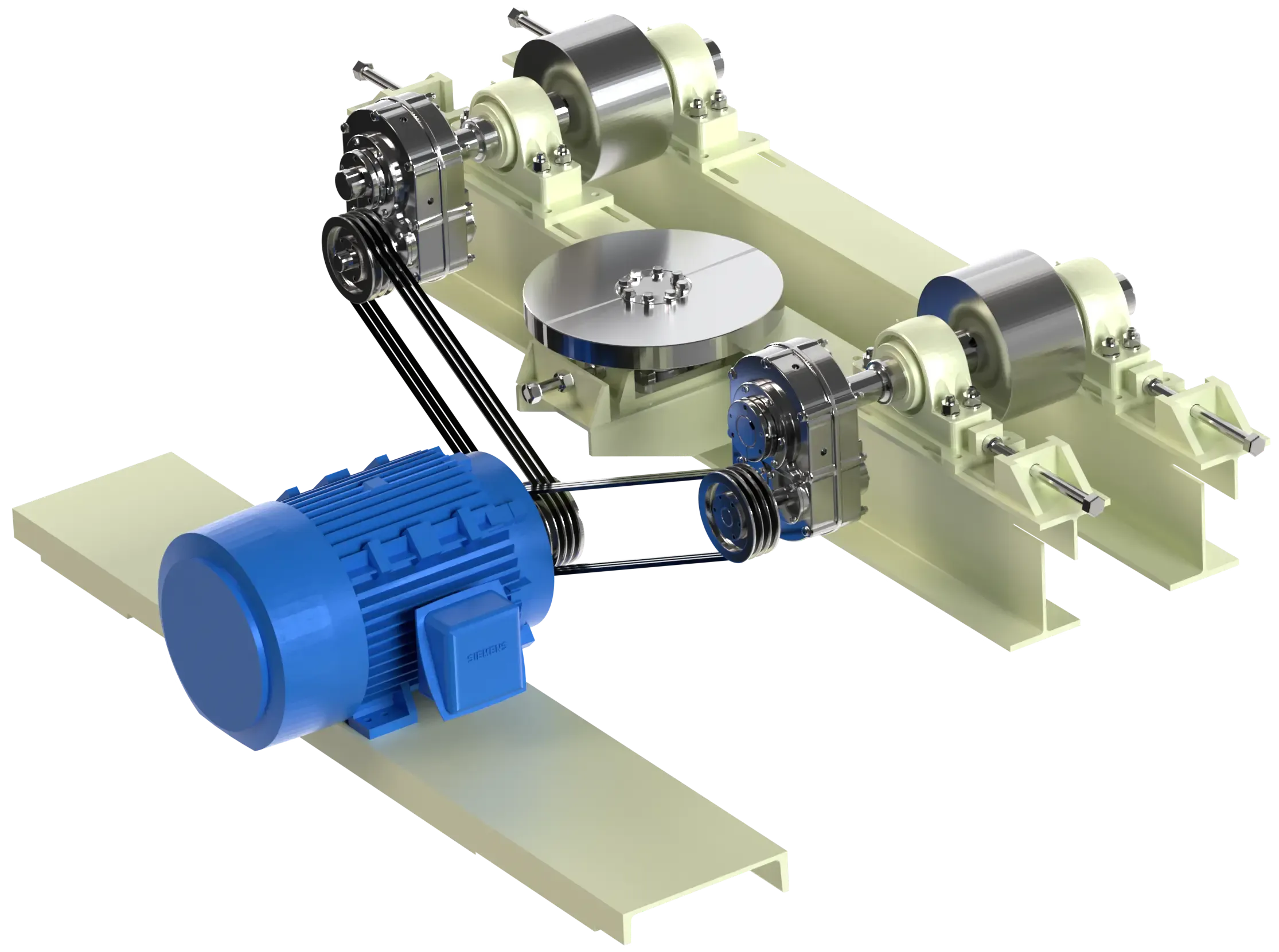

Drum Tires & Trunnions

At the heart of all our drum mixers is a heavy-duty trunnion drive system. Each drum is powered by two high-efficiency electric motors, providing full control of the rotation system to optimize the behavior of the virgin aggregate curtain.

This drum rotation system is controlled by a Variable-Speed Rotation Drive, which allows precise control of RAP residence time inside the drum. The heating exposure time directly affects RAP binder softening and its ability to fully blend and incorporate with virgin aggregates. This exposure time must be adjusted according to the RAP percentage in the mix.

Special high-carbon alloy steel trunnions and tires forged and normalized, with fixed central pivot roller bases to prevent lateral misalignment and facilitate drum flotation.

The trunnions are forged, precision-machined, and heat-treated for maximum durability, and come equipped with industry-trusted bearings. Designed for smooth, stable rotation under all load conditions, this configuration delivers consistent performance while minimizing wear and maintenance over time.

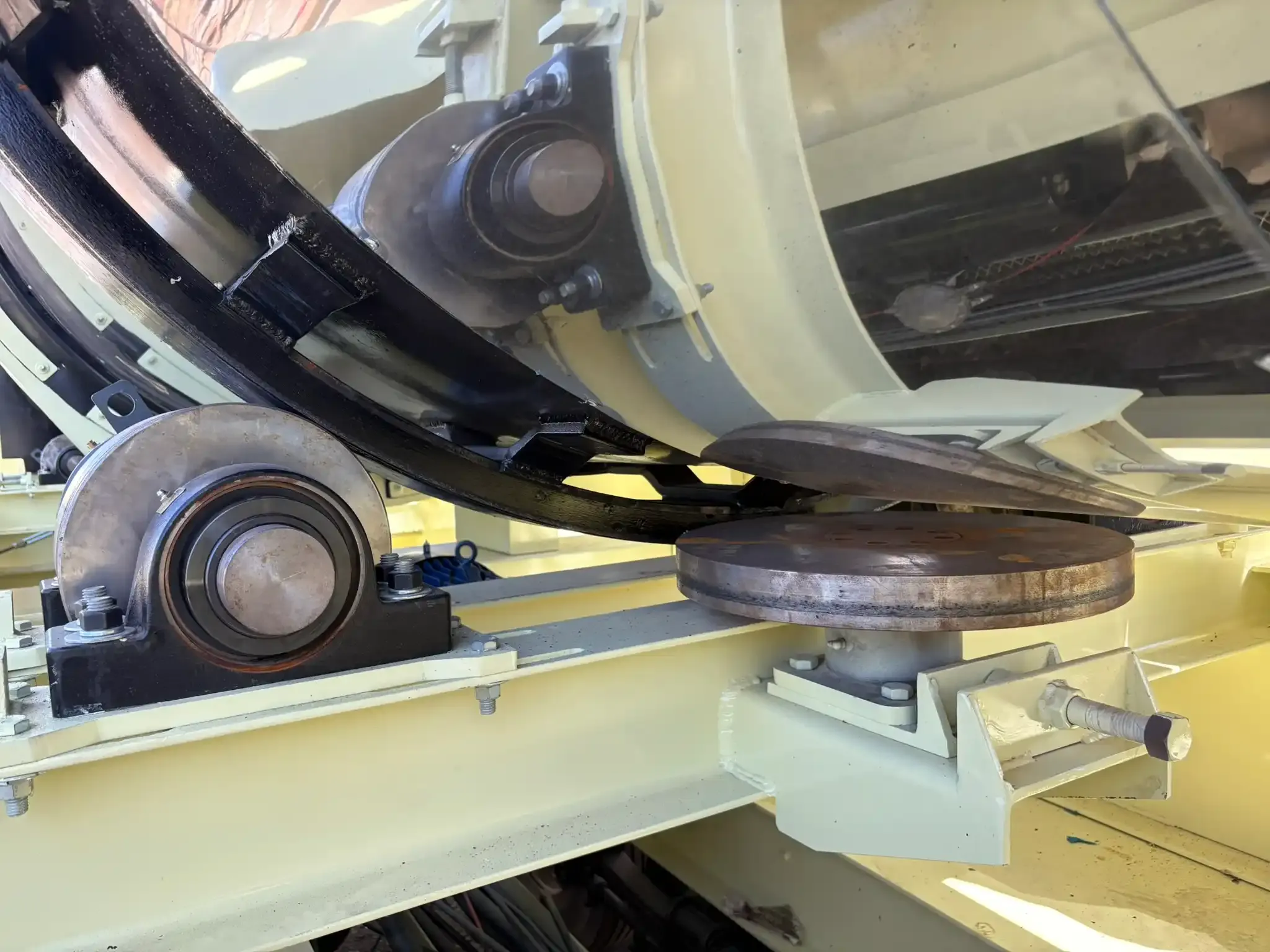

Triaso Thrust Rollers

Triaso drum mixers rotate on solid one-piece forged steel tires, delivering the strength and reliability needed for continuous operation. These tires are secured using bolt-on spring plate assemblies that flex with thermal expansion, preventing stress and distortion during high-temperature cycles.

Built to Move. Designed to Last.

To maintain precise alignment and stability during rotation, the system features individual guide rollers on every tire. This system ensures smooth, centered operation throughout the production process—reducing wear and preserving the integrity of the entire assembly. Rugged, responsive, and built for long-term performance.

Always matching your project

We give you options to match your project demands—offering drum shells in 5/16", 3/8" or 1/2" thicknesses. Every shell, no matter the gauge, is manufactured in-house using high-strength A-572 alloy steel to ensure consistent durability and performance.

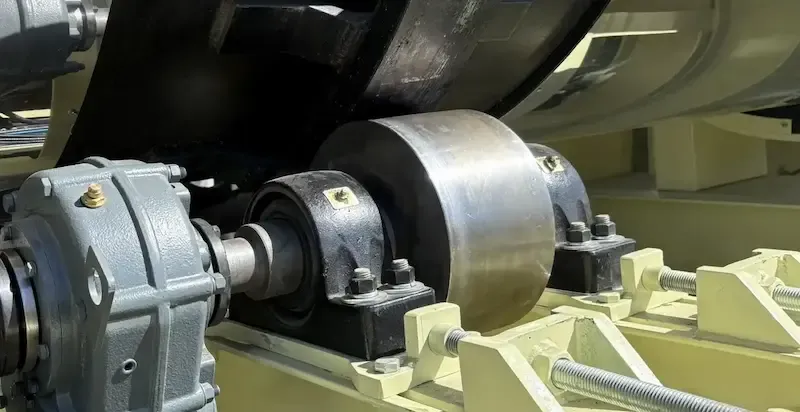

TRUNNIONS

Heavy-duty trunnions made from precision-machined steel and equipped with industrial bearings for smooth, stable drum rotation.

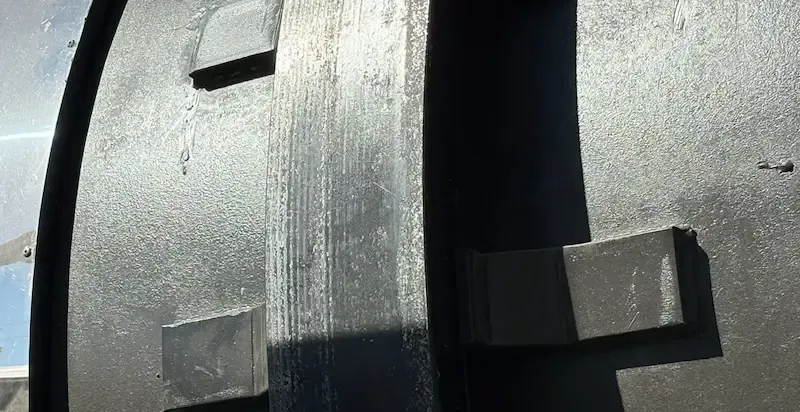

DRUM TIRES

Forged from high-strength alloy steel and precisely machined to ensure reliable support and quiet, consistent operation.

Variable-Speed Rotation Drives

For Drum Rotation Systems for High-RAP Incorporation

Our latest innovation for high-RAP incorporation is the use of Variable-Speed Rotation Drives for Drum Rotation Systems. According to our investigation and multiple field studies, RAP quality is directly affected by its heating exposure time inside the drum, which allows the RAP binder to fully blend and incorporate with the virgin aggregates.

This exposure time must be adjusted according to the RAP percentage in the mix.

RAP COLLAR & BIN

Our RAP system can incorporate

up to 50%

of reclaimed asphalt pavement

The drum collar is engineered to provide the controlled and efficient entry of Reclaimed Asphalt Pavement (RAP) into the mixing zone. Fed directly from the RAP bin via a dedicated conveyor, the material enters the drum smoothly and uniformly.

Learn More

Strategically positioned, the collar introduces RAP downstream of the burner flame, avoiding excessive heat exposure that could damage the recycled material or cause blue smoke emissions.

Its engineered shape promotes a steady, turbulence-free flow, allowing for even distribution and thorough blending with superheated virgin aggregates. This results in a consistent final mix with improved cohesion and overall performance.

By maintaining temperature control and maximizing contact between old and new materials, the drum collar plays a critical role in preserving RAP quality, increasing recycled content percentages, and supporting both cost-effective and environmentally conscious hot-mix production.

For every 10% of RAP,
the cost of hot-mix production

decreases 7%

By recycling up to 50% RAP with our plants,

you can achieve approximately 35% savings in hot-mix production costs.

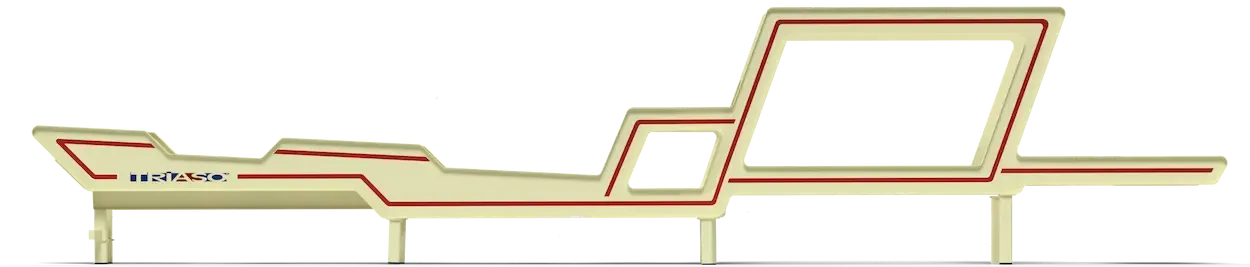

AESTHETIC SIDE PANELS

ENHANCE YOUR COMPANY IMAGE
WITH TRIASO DESIGN

Learn More

THE MOST VERSATILE AND MOBILE DRUM MIX ON THE MARKET

"Triaso asphalt plants have proven to be reliable, efficient, and built to last. Their performance and low operating costs have greatly improved our productivity. We highly recommend Triaso to any company in the industry."

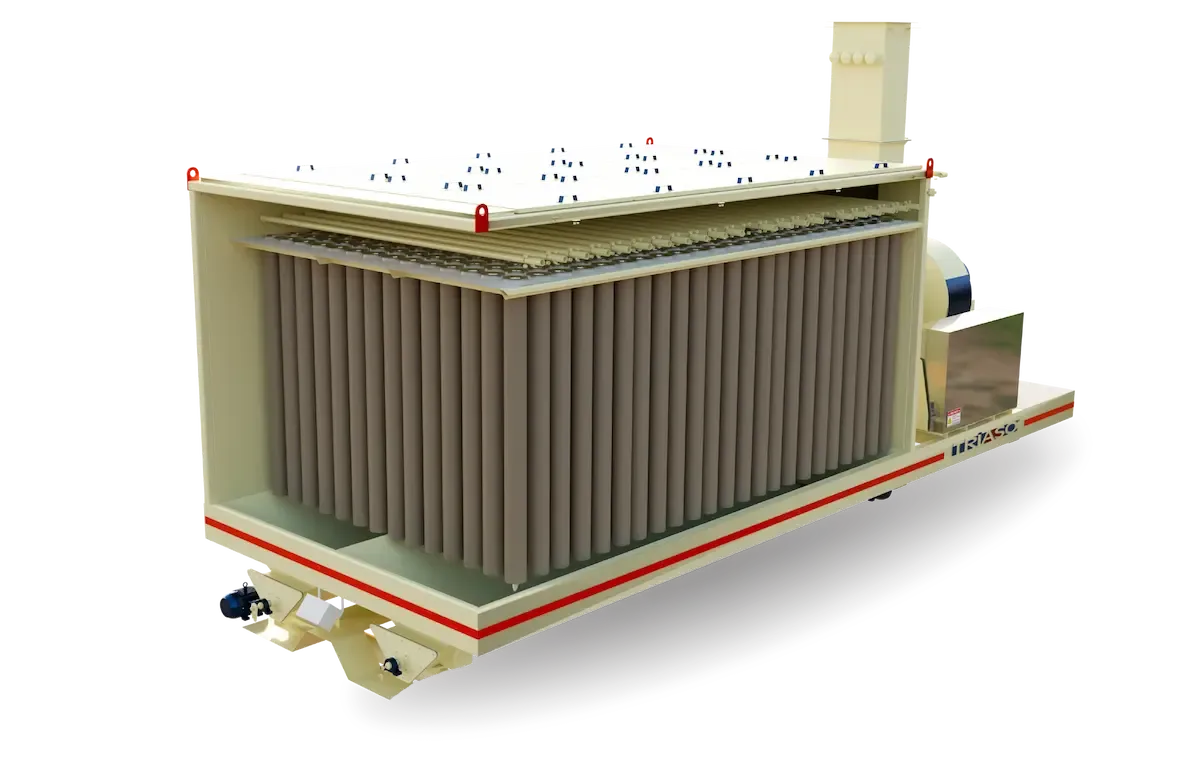

INTEGRATED BAGHOUSES

Baghouses are crucial for controlling dust and maintaining air quality in industrial settings. They efficiently capture particulate matter, ensuring compliance with environmental standards and creating a safer work environment. Ideal for industries like asphalt plants and aggregate processing, baghouses offer reliable, long-lasting performance.

4 - 90

thousand ACFM

Baghouses capacity

99.99

Fine particle filtration efficiency
